Representative photo. Please check item description for details.
Description

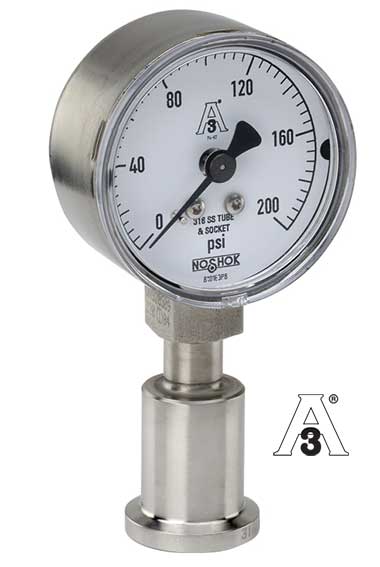

The NOSHOK 10 Series Fractional Sanitary Pressure Gauges are precision instruments designed for process applications requiring hygienic standards, covering pressure ranges from 0 psig to 30 psig through 0 psig to 600 psig. Featuring an electropolished 304 Stainless Steel case and a 316L Stainless Steel diaphragm/connection, these gauges meet the requirements for 3-A certification. The 2" gauge size features a 3/4" ASME-BPE Sanitary Clamp connection and USP Grade Glycerin fill, making it ideal for applications in food & beverage processing, pasteurization systems, pharmaceutical, and medical industries.
Features
- 3/4" clamp, dry gauge
- Ranges from 0 psig to 30 psig through 0 psig to 600 psig
- 2" gauge size
- Electropolished Stainless Steel case
- 316 Stainless Steel wetted parts
- Meets the requirements for 3-A
- C.I.P, S.I.P and Autoclave (only dry gauges are recommended for Autoclave)
- Ideal for applications including food & beverage processing, pasteurization systems, pharmaceutical and medical
Specifications
| NoShok10FPG | |
|---|---|
| Sanitary Seal Fill | [1] Glycerin, [4] White Oil |
| Pressure Range | [43] 0 psig to 30 psig, [46] 0 psig to 60 psig, [49] 0 psig to 100 psig, [55] 0 psig to 160 psig, [58] 0 psig to 200 psig, [61] 0 psig to 300 psig, [64] 0 psig to 400 psig, [70] 0 psig to 600 psig |
| Gauge Options | [0] None, [3] Safety Glass Lens |
| Connection Location | [0] Bottom Mount |
| Clamp Size | [06] 3/4 in ASME-BPE Sanitary Clamp |
| Gauge Size | [20] 2 in |
| Press. Gauge Features | |
|---|---|
| Gauge: Brand | Noshok |
| Gauge: Type | Dial Indicating Gauge |
| Gauge: Product Unit of Measure | psig, psig / inHg |
| Gauge: Process Connection Location | Back Mount, Bottom, In Line |
| Gauge: Process Connection Type | Clamp |
| Gauge: Case Material | Stainless Steel |
| Gauge: Window | Polycarbonate |
| Gauge: Diaphragm Material | Stainless Steel |
| Gauge: Dial Material | Aluminum |
| Gauge: Pointer Material | Aluminum |
| Gauge: Wetted Material | Stainless Steel |
| Gauge: Fill Type | Liquid Filled / Fillable |
| Gauge: Dial Size | 2 in (50 mm) |
| Gauge: Process Connection Size | 3/4 in |
| Gauge: Accuracy | ±3% |
| Gauge: Measuring Principle | Bourdon Tube |
| Gauge: Pressure Type | Gauge Pressure |
| Gauge: Scale Range | < 6 In.H2O (16 mbar), ≥ 6 In.H2O (16 mbar) to < 10 psi (600 mbar), ≥ 10 psi (0.6 bar) to ≤ 15,000 psi (1,000 bar) |
