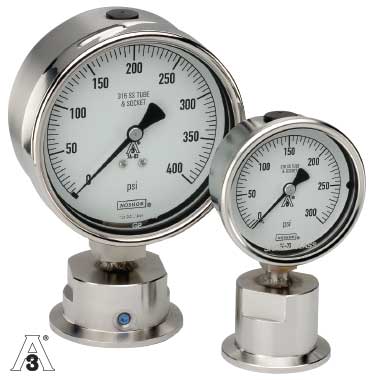

NoShok 10 Series Heavy Duty Pressure Gauge
The NOSHOK 10 Series Heavy-Duty Sanitary Pressure Gauges are durable, fillable sanitary gauges designed for accurate pressure measurement in hygienic applications, covering ranges from vacuum/compound (-30 inHg) up to 600 psig. Featuring an electropolished 304 Stainless Steel case and 316L Stainless Steel wetted parts, these gauges meet the requirements for 3-A C.I.P., S.I.P., and Autoclave (dry gauges recommended). They are ideal for food & beverage processing, pasteurization systems, pharmaceutical, and medical industries. Available in 2-1/2" and 4" gauge sizes with 1-1/2" or 2" ASME-BPE Sanitary Clamp connections.
Features
- 1-1/2" and 2" clamp, fillable dry or liquid-filled gauge
- Ranges from -30 inHg to 0 psig through 0 psig to 600 psig
- 2-1/2" and 4" gauge sizes
- Electropolished Stainless Steel case
- 316 Stainless Steel wetted parts
- Meets the requirements for 3-A
- C.I.P, S.I.P and Autoclave (only dry gauges are recommended for Autoclave)
- Ideal for applications including food & beverage processing, pasteurization systems, pharmaceutical and medical
The NOSHOK 10 Series Heavy-Duty Sanitary Pressure Gauges are durable, fillable sanitary gauges designed for accurate pressure measurement in hygienic applications, covering ranges from vacuum/compound (-30 inHg) up to 600 psig. Featuring an electropolished 304 Stainless Steel case and 316L Stainless Steel wetted parts, these gauges meet the requirements for 3-A C.I.P., S.I.P., and Autoclave (dry gauges recommended). They are ideal for food & beverage processing, pasteurization systems, pharmaceutical, and medical industries. Available in 2-1/2" and 4" gauge sizes with 1-1/2" or 2" ASME-BPE Sanitary Clamp connections.
Features
- 1-1/2" and 2" clamp, fillable dry or liquid-filled gauge
- Ranges from -30 inHg to 0 psig through 0 psig to 600 psig
- 2-1/2" and 4" gauge sizes
- Electropolished Stainless Steel case
- 316 Stainless Steel wetted parts
- Meets the requirements for 3-A
- C.I.P, S.I.P and Autoclave (only dry gauges are recommended for Autoclave)
- Ideal for applications including food & beverage processing, pasteurization systems, pharmaceutical and medical
Specifications
| NoShok10HDPG | |
|---|---|
| Connection Location | [0] Bottom Mount, [1] Back Mount (2-1/2" Gauge), [1] Back Mount (4" Gauge) |
| Clamp Size | [12] 1-1/2 in ASME-BPE Sanitary Clamp (2-1/2" Gauge), [12] 1-1/2 in ASME-BPE Sanitary Clamp (4" Gauge), [16] 2 in ASME-BPE Sanitary Clamp |
| Sanitary Seal Fill | [1] Glycerin, [4] White Oil, [4] White Oil (Vac to 15 psi) |
| Gauge Size | [25] 2-1/2 in, [40] 4 in |
| Pressure Range | [01] -30 inHg to 100 psig, [04] -30 inHg to 160 psig, [07] -30 inHg to 200 psig, [10] -30 inHg to 300 psig, [13] -30 inHg to 100 psig, [16] -30 inHg to 160 psig, [19] -30 inHg to 200 psig, [22] -30 inHg to 300 psig, [40] 0 psig to 15 psig, [43] 0 psig to 30 psig, [46] 0 psig to 60 psig, [49] 0 psig to 100 psig, [55] 0 psig to 160 psig, [58] 0 psig to 200 psig, [61] 0 psig to 300 psig, [64] 0 psig to 400 psig, [70] 0 psig to 600 psig |
| Gauge Fill | [0] None, [1] Glycerin (2-1/2" Gauge), [1] Glycerin (4" Gauge), [2] Silicone (2-1/2" Gauge), [2] Silicone (4" Gauge) |
| Gauge Options | [0] None, [1] Max Indicating Pointer (4" Gauge), [2] Adjustable Pointer (4" Gauge), [3] Polycarbonate Lens (2-1/2" Gauge), [3] Polycarbonate Lens (4" Gauge) |
| Certified Calibration | Without, [CC] With |
| Press. Gauge Features | |
|---|---|
| Gauge: Brand | Noshok |
| Gauge: Type | Dial Indicating Gauge |
| Gauge: Product Unit of Measure | psig, psig / inHg |
| Gauge: Process Connection Location | Back Mount, Bottom, In Line |
| Gauge: Process Connection Type | Clamp |
| Gauge: Case Material | Stainless Steel |
| Gauge: Window | Laminated Safety Glass |
| Gauge: Diaphragm Material | Stainless Steel |
| Gauge: Dial Material | Aluminum |
| Gauge: Pointer Material | Aluminum |
| Gauge: Autoclavable | Yes |
| Gauge: Wetted Material | Stainless Steel |
| Gauge: Fill Type | Liquid Filled / Fillable |
| Gauge: Dial Size | 2-1/2 in (63 mm & 68 mm), 4 in (100 mm) |
| Gauge: Process Connection Size | 1-1/2 in, 2 in |
| Gauge: Accuracy | ±1%, ±2% |
| Gauge: Measuring Principle | Bourdon Tube |
| Gauge: Pressure Type | Gauge Pressure |
| Gauge: Scale Range | < 6 In.H2O (16 mbar), ≥ 6 In.H2O (16 mbar) to < 10 psi (600 mbar), ≥ 10 psi (0.6 bar) to ≤ 15,000 psi (1,000 bar) |
