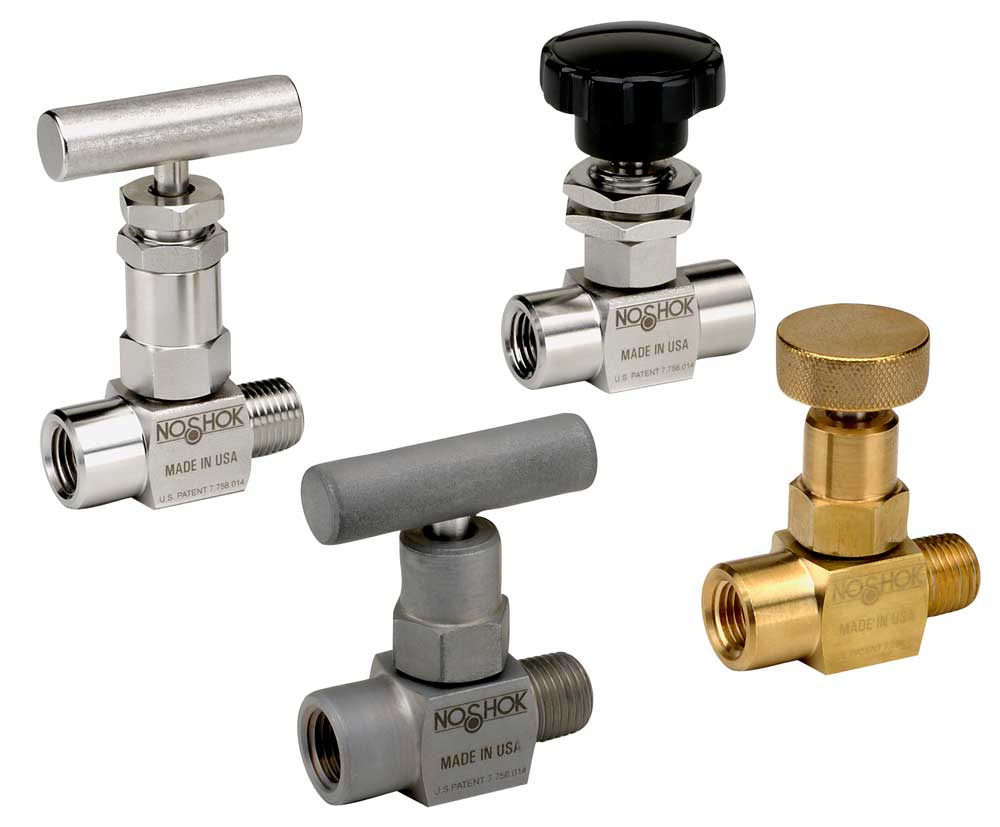

NoShok 100 Series Mini, Hard Seat Needle Valve
The NOSHOK 100 Series Mini Hard Seat Needle Valve is a compact, high-performance solution designed for maximum durability in demanding industrial environments. Ideal for applications requiring a smaller footprint without sacrificing pressure capacity, these valves are built to handle the toughest conditions in industries like oil and gas.
Every valve is 100% helium leak tested to ensure reliable performance. The patented body-to-bonnet, metal-to-metal seal significantly increases the pressure range, while the stem seal design - featuring an FKM o-ring and PTFE back-up ring located below the threads - protects against corrosion and galling.
Key Features:
- High Pressure Ratings: Capable of handling up to 10,000 psi (Steel and Stainless Steel) or 6,000 psi (Brass).
- Precision Engineering: Features 316 Stainless Steel stems with rolled threads for enhanced strength and smooth, easy operation.
- Robust Construction: Available in zinc-nickel plated steel, electropolished 316 Stainless Steel, or 360 Brass.
- Leak-Free Performance: Helium leak tested to 1 x 10⁻⁴ ml/s.
- Versatile Configurations: Choose from male-to-male, male-to-female, or female-to-female connections in both in-line and angled designs.
The NOSHOK 100 Series Mini Hard Seat Needle Valve is a compact, high-performance solution designed for maximum durability in demanding industrial environments. Ideal for applications requiring a smaller footprint without sacrificing pressure capacity, these valves are built to handle the toughest conditions in industries like oil and gas.
Every valve is 100% helium leak tested to ensure reliable performance. The patented body-to-bonnet, metal-to-metal seal significantly increases the pressure range, while the stem seal design - featuring an FKM o-ring and PTFE back-up ring located below the threads - protects against corrosion and galling.
Key Features:
- High Pressure Ratings: Capable of handling up to 10,000 psi (Steel and Stainless Steel) or 6,000 psi (Brass).
- Precision Engineering: Features 316 Stainless Steel stems with rolled threads for enhanced strength and smooth, easy operation.
- Robust Construction: Available in zinc-nickel plated steel, electropolished 316 Stainless Steel, or 360 Brass.
- Leak-Free Performance: Helium leak tested to 1 x 10⁻⁴ ml/s.
- Versatile Configurations: Choose from male-to-male, male-to-female, or female-to-female connections in both in-line and angled designs.
Specifications
| NoShok-100-HS-NValve | |
|---|---|
| Material | Brass ¹, Steel ², Stainless Steel ³ |
| Model | [101-MMB] 1/8" NPT Male - 1/8" NPT Male, [102-MMB] 1/4" NPT Male - 1/4" NPT Male, [101-MMC] 1/8" NPT Male - 1/8" NPT Male, [102-MMC] 1/4" NPT Male - 1/4" NPT Male, [101-MMS] 1/8" NPT Male - 1/8" NPT Male, [102-MMS] 1/4" NPT Male - 1/4" NPT Male, [101-MFB] 1/8" NPT Male - 1/8" NPT Female, [102-MFB] 1/4" NPT Male - 1/4" NPT Female, [101-MFC] 1/8" NPT Male - 1/8" NPT Female, [102-MFC] 1/4" NPT Male - 1/4" NPT Female, [101-MFS] 1/8" NPT Male - 1/8" NPT Female, [102-MFS] 1/4" NPT Male - 1/4" NPT Female, [101-FFB] 1/8" NPT Female - 1/8" NPT Female, [102-FFB] 1/4" NPT Female - 1/4" NPT Female, [101-FFC] 1/8" NPT Female - 1/8" NPT Female, [102-FFC] 1/4" NPT Female - 1/4" NPT Female, [101-FFS] 1/8" NPT Female - 1/8" NPT Female, [102-FFS] 1/4" NPT Female - 1/4" NPT Female, [102-MMAS] 1/4" NPT Male - 1/4" NPT Male Angle, [102-MMAC] 1/4" NPT Male - 1/4" NPT Male Angle, [101-MFAB] 1/8" NPT Male - 1/8" NPT Female Angle, [102-MFAB] 1/4" NPT Male - 1/4" NPT Female Angle, [101-MFAC] 1/8" NPT Male - 1/8" NPT Female Angle, [102-MFAC] 1/4" NPT Male - 1/4" NPT Female Angle, [101-MFAS] 1/8" NPT Male - 1/8" NPT Female Angle, [102-MFAS] 1/4" NPT Male - 1/4" NPT Female Angle, [101-FFAB] 1/8" NPT Female - 1/8" NPT Female Angle, [102-FFAB] 1/4" NPT Female - 1/4" NPT Female Angle, [101-FFAC] 1/8" NPT Female - 1/8" NPT Female Angle, [102-FFAC] 1/4" NPT Female - 1/4" NPT Female Angle, [101-FFAS] 1/8" NPT Female - 1/8" NPT Female Angle, [102-FFAS] 1/4" NPT Female - 1/4" NPT Female Angle |
| Handle Options | Standard, [HL1] Mini "T", [HL3] Round Knurled, [HL4] 1.375" Dia. Phenolic, [HL5] 1.75" Dia. Phenolic, [HL9] 2.375" Dia. Phenolic |
| Mounting Option | None, [PM2] Panel Mount ¹, [PM2] Panel Mount ², [PM2] Panel Mount ³ |
| Material Packing | None, [P1] Teflon ¹, [P1] Teflon ², [P1] Teflon ³, [P2] Graphite ¹, [P2] Graphite ², [P2] Graphite ³ |
| Stem Tip Options | None, [T1] Non-Rotating V-Tip, [T5] Non-Rotating 440C Ball, [T6] Non-Rotating Carbide Ball |
| O-Ring Options | None, [AF1] Aflas, [KZ1] Kalrez 6375, [KZ2] Kalrez 4079, [KZ3] Simriz 89D, [KZ4] Kalrez 7075, [EL1] Elast O Lion, [EM1] EPDM 80, [EM2] EPDM 90, [EM3] EPDM 70, [NB1] NBR 70, [VT1] Low Temp FKM |
| Cleaning Option | None, [O2] Cleaning for Oxygen Service |
| Needle Valve Features | |
|---|---|
| Needle Valve: Material | Steel, Brass, SS |
| Needle Valve: Connection Size | 1/8 NPT, 1/4 NPT |
| Needle Valve: Connection Type | Male - Male, Male - Female, Male - Female Angle, Female - Female, Female - Female Angle |
| Needle Valve: Orifice size | 0.172" |
| Needle Valve: Flow Coefficient | 0.42 Cv |
| Needle Valve: Handle | Round Knurled, "T" Handle, Phenolic |
| Needle Valve: Optional Mount | Panel Mount |
| Needle Valve: Optional Packing | Teflon, Graphite |
| Needle Valve: Optional Stem Tip | V-Top, 440C Ball, Carbide Ball |
| Needle Valve: Optional O-Ring | Aflas, Kalrez, Simriz, Elast O Lion, PDM, NBR, FKM |
