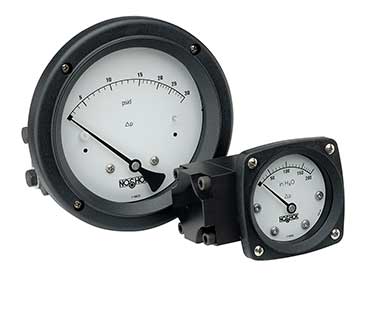

NoShok 1100 Series Diaphragm Pressure Gauge
The NOSHOK 1100 Series Diaphragm-Type Differential Pressure Gauges are simple, rugged, and compact instruments engineered for precise low differential pressure measurement, ranging from 0 inH₂O to 20 inH₂O up to 0 psid to 100 psid. With wetted parts including 316 Stainless Steel, PTFE, and a ceramic magnet, and a standard black anodized aluminum housing, these gauges offer a maximum working static pressure of 3,000 psig (Aluminum and Stainless Steel). They are ideally suited for applications such as filter monitoring, back flow testing, flow indication, and level indication. Available in 2-1/2", 4-1/2", and 6" dial sizes, with options for single/dual switches or a 4-20 mA transmitter output.
Features
- Simple, rugged, compact differential pressure gauge
- Ranges from 0 inH2O to 20 inH2O through 0 psid to 100 psid
- 2-1/2", 4-1/2" and 6" gauge sizes
- Engineered plastic gauge case
- Black anodized Aluminum housing, 316 Stainless Steel optional
- Ideal for applications including back flow testing, heat exchangers, filter monitoring, flow indication and level indication
The NOSHOK 1100 Series Diaphragm-Type Differential Pressure Gauges are simple, rugged, and compact instruments engineered for precise low differential pressure measurement, ranging from 0 inH₂O to 20 inH₂O up to 0 psid to 100 psid. With wetted parts including 316 Stainless Steel, PTFE, and a ceramic magnet, and a standard black anodized aluminum housing, these gauges offer a maximum working static pressure of 3,000 psig (Aluminum and Stainless Steel). They are ideally suited for applications such as filter monitoring, back flow testing, flow indication, and level indication. Available in 2-1/2", 4-1/2", and 6" dial sizes, with options for single/dual switches or a 4-20 mA transmitter output.
Features
- Simple, rugged, compact differential pressure gauge
- Ranges from 0 inH2O to 20 inH2O through 0 psid to 100 psid
- 2-1/2", 4-1/2" and 6" gauge sizes
- Engineered plastic gauge case
- Black anodized Aluminum housing, 316 Stainless Steel optional
- Ideal for applications including back flow testing, heat exchangers, filter monitoring, flow indication and level indication
Specifications
| NoShok1100PG | |
|---|---|
| Gauge Size | [25-11] 2-1/2 in, [45-11] 4-1/2 in, [60-11] 6 in |
| Connection Location | [1] Back, [0] Dual Top & Bottom, [2] Side, [3] Bottom |
| Connection Size | [2] 1/4 NPT Female, [9] 7/16-20 Female (Back or Side Only) |
| Pressure Range | [W20] 0 inH2O to 20 in H2O, [W25] 0 inH2O to 25 in H2O, [W30] 0 inH2O to 30 in H2O, [W40] 0 inH2O to 40 in H2O, [W50] 0 inH2O to 50 in H2O, [W60] 0 inH2O to 60 in H2O, [W75] 0 inH2O to 75 in H2O, [W100] 0 inH2O to 100 in H2O, [W135] 0 inH2O to 135 in H2O, [W150] 0 inH2O to 150 in H2O, [W200] 0 inH2O to 200 in H2O, [W300] 0 Inh2O To 300 In H2O, [W400] 0 Inh2O To 400 In H2O, [P5] 0 Psid To 5 Psid, [P10] 0 Psid To 10 Psid, [P15] 0 Psid To 15 Psid, [P20] 0 Psid To 20 Psid, [P25] 0 Psid To 25 Psid, [P30] 0 psid to 30 psid, [P50] 0 psid to 50 psid, [P60] 0 psid to 60 psid, [P75] 0 psid to 75 psid, [P100] 0 psid to 100 psid |
| Sensor Housing Material | [A] Aluminum, [S] SS |
| O-Ring & Diaphragm Material | [3] NBR, [2] FKM, [4] EPDM |
| Case Material | [P] Engineered Plastic, [A] Aluminum (45-11) |
| Lens | [1] Shatter-Resistant Acrylic, [2] Safety Glass, [3] Max Indicating Pointer |
| Fluid Fill | Without, [GY] Glycerin (25-11), [GY] Glycerin, [SL] Silicone (25-11), [SL] Silicone |
| Switch/Transmitter Type & Housing | Without, [3] Single Switch, NEMA 4x, [4] Dual Switch, NEMA 4x |
| Mounting Holes | Without, [MH] (2) 1/4-20 Holes |
| Mounting Options | Without, [MK5-CS] Steel Pipe Mounting Kit, [MK5-SS] SS Pipe Mounting Kit, [WMK] Wall Mounting Kit |
| Reversed Ports | Without, [RP] With |
| SS Tagging | Without, [ST] With |
| Press. Gauge Features | |
|---|---|
| Gauge: Brand | Noshok |
| Gauge: Type | Dial Indicating Gauge |
| Gauge: Product Unit of Measure | psid, inH2O |
| Gauge: Process Connection Location | Top / Bottom Connections, Back Mount, Bottom, In Line, Side Entry, Right |
| Gauge: Ingress Protection | IP 65 |
| Gauge: Case Material | Plastic |
| Gauge: Window | Acrylic (PMMA) |
| Gauge: Diaphragm Material | Plastic |
| Gauge: Dial Material | Aluminum |
| Gauge: Pointer Material | Aluminum |
| Gauge: Bezel Material | Plastic |
| Gauge: Wetted Material | Ceramic Magnet |
| Gauge: Fill Type | Dry |
| Gauge: Dial Size | 2-1/2 in (63 mm & 68 mm), 4-1/2 in (110 & 115 mm), 6 in (160 mm) |
| Gauge: Process Connection Size | 1/4 NPT, 7/16 - 20 UNF |
| Gauge: Accuracy | ±3% |
| Gauge: Measuring Principle | Diaphragm Element |
| Gauge: Pressure Type | Differential Pressure |
| Gauge: Scale Range | < 6 In.H2O (16 mbar), ≥ 6 In.H2O (16 mbar) to < 10 psi (600 mbar), ≥ 10 psi (0.6 bar) to ≤ 15,000 psi (1,000 bar) |
