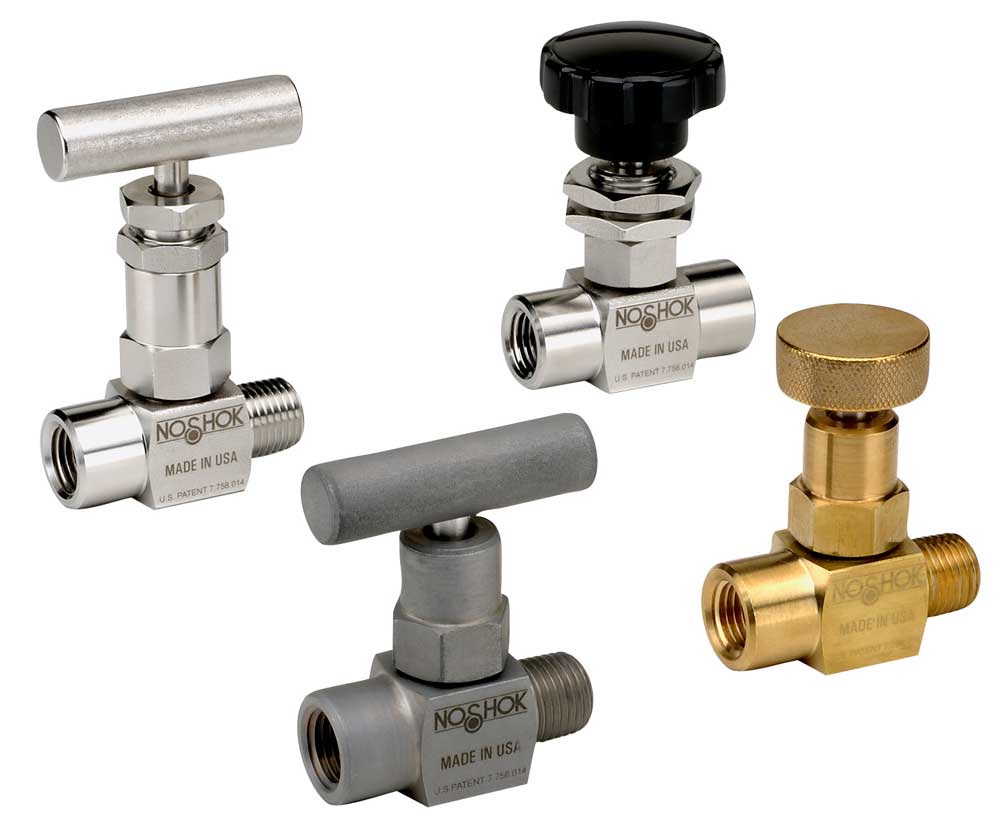

NoShok 150 Series Mini Needle Valves w/Soft Tip
The NOSHOK 150 Series Mini Soft Tip Needle Valve is a compact and durable solution designed for high-pressure applications where a leak-proof seal is essential. It features a patented non-rotating soft tip stem that ensures a bubble-tight shut-off while protecting the valve seat from wear.
Key Features:
-
High-Pressure Performance: Rated for a maximum pressure of 6,000 psi at 200 F, making it suitable for demanding oil, gas, and hydraulic systems.
-
Patented Design: Utilizes a non-rotating Acetal soft tip stem with a back-up metal-to-metal seal to provide long-lasting reliability.
-
Durable Materials: Available in zinc-nickel plated steel, electropolished 316 stainless steel, or 360 brass, with all stems made from 316 stainless steel for maximum corrosion resistance.
-
Leak Testing: Every valve is 100% helium leak tested to 1 x 10-4 ml/s to guarantee performance right out of the box.
-
Smooth Operation: Features rolled stem threads for increased strength and ease of adjustment under pressure.
The NOSHOK 150 Series Mini Soft Tip Needle Valve is a compact and durable solution designed for high-pressure applications where a leak-proof seal is essential. It features a patented non-rotating soft tip stem that ensures a bubble-tight shut-off while protecting the valve seat from wear.
Key Features:
-
High-Pressure Performance: Rated for a maximum pressure of 6,000 psi at 200 F, making it suitable for demanding oil, gas, and hydraulic systems.
-
Patented Design: Utilizes a non-rotating Acetal soft tip stem with a back-up metal-to-metal seal to provide long-lasting reliability.
-
Durable Materials: Available in zinc-nickel plated steel, electropolished 316 stainless steel, or 360 brass, with all stems made from 316 stainless steel for maximum corrosion resistance.
-
Leak Testing: Every valve is 100% helium leak tested to 1 x 10-4 ml/s to guarantee performance right out of the box.
-
Smooth Operation: Features rolled stem threads for increased strength and ease of adjustment under pressure.
Specifications
| NoShok-150-Mini-NValve | |
|---|---|
| Material | Brass ¹, Steel ², Stainless Steel ³ |
| Model | [151-MMB] 1/8" NPT Male - 1/8" NPT Male, [152-MMB] 1/4" NPT Male - 1/4" NPT Male, [151-MMC] 1/8" NPT Male - 1/8" NPT Male, [152-MMC] 1/4" NPT Male - 1/4" NPT Male, [151-MMS] 1/8" NPT Male - 1/8" NPT Male, [152-MMS] 1/4" NPT Male - 1/4" NPT Male, [151-MFB] 1/8" NPT Male - 1/8" NPT Female, [152-MFB] 1/4" NPT Male - 1/4" NPT Female, [151-MFC] 1/8" NPT Male - 1/8" NPT Female, [152-MFC] 1/4" NPT Male - 1/4" NPT Female, [151-MFS] 1/8" NPT Male - 1/8" NPT Female, [152-MFS] 1/4" NPT Male - 1/4" NPT Female, [151-FFB] 1/8" NPT Female - 1/8" NPT Female, [152-FFB] 1/4" NPT Female - 1/4" NPT Female, [151-FFC] 1/8" NPT Female - 1/8" NPT Female, [152-FFC] 1/4" NPT Female - 1/4" NPT Female, [151-FFS] 1/8" NPT Female - 1/8" NPT Female, [152-FFS] 1/4" NPT Female - 1/4" NPT Female, [151-MFAB] 1/8" NPT Male - 1/8" NPT Female Angle, [152-MFAB] 1/4" NPT Male - 1/4" NPT Female Angle, [151-MFAC] 1/8" NPT Male - 1/8" NPT Female Angle, [152-MFAC] 1/4" NPT Male - 1/4" NPT Female Angle, [151-MFAS] 1/8" NPT Male - 1/8" NPT Female Angle, [152-MFAS] 1/4" NPT Male - 1/4" NPT Female Angle, [151-FFAB] 1/8" NPT Female - 1/8" NPT Female Angle, [152-FFAB] 1/4" NPT Female - 1/4" NPT Female Angle, [151-FFAC] 1/8" NPT Female - 1/8" NPT Female Angle, [152-FFAC] 1/4" NPT Female - 1/4" NPT Female Angle, [151-FFAS] 1/8" NPT Female - 1/8" NPT Female Angle, [152-FFAS] 1/4" NPT Female - 1/4" NPT Female Anale |
| Handle Options | Standard, [HL3] Round Knurled, [HL7] Mini "T", [HL4] 1.375" Dia. Phenolic, [HL5] 1.75" Dia. Phenolic, [HL9] 2.375" Dia. Phenolic, [HL9] 2.375" Dia. Phenolic |
| Mounting Option | None, [PM2] Panel Mount ¹, [PM2] Panel Mount ², [PM2] Panel Mount ³ |
| Material Packing | None, [P1] Teflon ¹, [P1] Teflon ², [P1] Teflon ³ |
| Stem Tip Options | None, [T1] Non-Rotating V-Tip, [T5] Non-Rotating 440C Ball, [T6] Non-Rotating Carbide Ball |
| O-Ring Options | None, [AF1] Aflas, [KZ1] Kalrez 6375, [KZ2] Kalrez 4079, [KZ3] Simriz 89D, [KZ4] Kalrez 7075, [EL1] Elast O Lion, [EM1] EPDM 80, [EM2] EPDM 90, [EM3] EPDM 70, [NB1] NBR 70, [VT1] Low Temp FKM |
| Cleaning Option | None, [O2] Cleaning for Oxygen Service ¹³ |
| Needle Valve Features | |
|---|---|
| Needle Valve: Material | Steel, Brass, SS |
| Needle Valve: Connection Size | 1/8 NPT, 1/4 NPT |
| Needle Valve: Connection Type | Male - Male, Male - Female, Male - Female Angle, Female - Female, Female - Female Angle |
| Needle Valve: Orifice size | 0.172" |
| Needle Valve: Flow Coefficient | 0.42 Cv |
| Needle Valve: Handle | Round Knurled, "T" Handle, Phenolic |
| Needle Valve: Optional Mount | Panel Mount |
| Needle Valve: Optional Packing | Teflon |
| Needle Valve: Optional Stem Tip | V-Top, 440C Ball, Carbide Ball |
| Needle Valve: Optional O-Ring | Aflas, Kalrez, Simriz, Elast O Lion, PDM, NBR, FKM |
