NoShok 200 Series Low Pressure Diaphragm Gauge

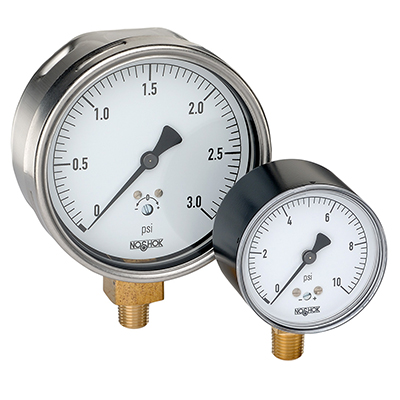

The NOSHOK 200 Series Low Pressure Diaphragm Pressure Gauges are sensitive, capsule-type dry gauges designed for precise measurement of extremely low pressures, ranging from vacuum up to 10 psi. Featuring copper alloy and brass wetted parts, these gauges are available with a black painted steel, Stainless Steel, or impact-resistant ABS case. These gauges are ideal for critical, low-pressure applications, including filter monitoring, gas distribution, HVAC, leak detection, level indication, and medical equipment. Available in 2-1/2" and 4" dial sizes.
Features
- Sensitive capsule-type, non-fillable dry gauge
- Vacuum ranges through 0 psi to 10 psi
- 2-1/2" and 4" gauge sizes
- Black painted Steel, Stainless Steel and impact-resistant ABS case
- Copper alloy and Brass wetted parts
- Ideal for applications including filter monitoring, gas distribution, HVAC, leak detection, level indication and medical
The NOSHOK 200 Series Low Pressure Diaphragm Pressure Gauges are sensitive, capsule-type dry gauges designed for precise measurement of extremely low pressures, ranging from vacuum up to 10 psi. Featuring copper alloy and brass wetted parts, these gauges are available with a black painted steel, Stainless Steel, or impact-resistant ABS case. These gauges are ideal for critical, low-pressure applications, including filter monitoring, gas distribution, HVAC, leak detection, level indication, and medical equipment. Available in 2-1/2" and 4" dial sizes.
Features
- Sensitive capsule-type, non-fillable dry gauge
- Vacuum ranges through 0 psi to 10 psi
- 2-1/2" and 4" gauge sizes
- Black painted Steel, Stainless Steel and impact-resistant ABS case
- Copper alloy and Brass wetted parts
- Ideal for applications including filter monitoring, gas distribution, HVAC, leak detection, level indication and medical
Specifications
| NoShok200PG | |
|---|---|
| Model | [25-200] 2-1/2 in, Bottom Connection, [25-210] 2-1/2 in, Back Connection, [25-224] 2-1/2 in, Panel Mount, [40-200] 4 in, Bottom Connection |
| Pressure Range | [15-inH2O-vac] -15 inH2O to 0 inH2O, [30-inH2O-vac] -30 inH2O to 0 inH2O, [60-inH2O-vac] -60 inH2O to 0 inH2O, [100-inH2O-vac] -100 inH2O to 0 inH2O, [10-inH2O] 0 inH2O to 10 inH2O, [15-inH2O] 0 inH2O to 15 inH2O, [30-inH2O] 0 inH2O to 30 inH2O, [60-inH2O] 0 inH2O to 60 inH2O, [100-inH2O] 0 inH2O to 100 inH2O, [160-inH2O] 0 inH2O to 160 inH2O, [200-inH2O] 0 inH2O to 200 inH2O, [10-oz/in2] 0 oz/in2 to 10 oz/in2, [15-oz/in2] 0 oz/in2 to 15 oz/in2, [30-oz/in2] 0 oz/in2 to 30 oz/in2, [35-oz/in2] 0 oz/in2 to 35 oz/in2, [60-oz/in2] 0 oz/in2 to 60 oz/in2, [100-oz/in2] 0 oz/in2 to 100 oz/in2, [160-oz/in2] 0 oz/in2 to 160 oz/in2, [20-oz/35-inH2O] 0 oz/in2 to 20 oz/in2 (0 inH2O to 35 inH2O), [32-oz/55-inH2O] 0 oz/in2 to 32 oz/in2 (0 inH2O to 55 inH2O), [3-psi] 0 psi to 3 psi, [5-psi] 0 psi to 5 psi, [10-psi] 0 psi to 10 psi |
| Connection Size | 1/4 NPT (Std), [10-32] 1/8" NPT/10-32 |
| Case Options | Steel (Std), ABS (Std), [SSC] SS Case (25-200), [SSC] SS Case (25-210) |
| Lens Options | Acrylic (Std), Instrument Glass (Std), [GL] Glass Lens, [SG] Safety Glass Lens (25-2x0), [SG] Safety Glass Lens (40-200), [PL] Plexiglass Lens (40-200), [RL] Recalibrator Lens (25-2x0) |
| Red Set Pointer | None, [SP] With (25-2x0), [SP] With (25-224), [SP] With (40-200) |
| Max Indicating Pointer | None, [MIP] With(25-2x0), [MIP] With (25-224) |
| Flange Options | None, [BLFF] Black Front Flange (25-210), [BLFF] Black Front Flange (40-200), [SSFF] 304SS Front Flange (40-200), [CFF] Chrome Front Flange (25-210), [BLRF] Black Rear Flange (25-200), [SSRF] 304SS Rear Flange (40-200) |
| Ring Options | None, SS Cover Ring (Std), [BCR] Black Cover Ring (25-2x0), [SSCR] SS Cover Ring (25-2x0) |
| Bezel Options | None, SS (Std), [BBU] Black Bezel w/U-Clamp (25-210), [SSBU] SS Bezel w/U-Clamp (25-210) |
| Rubber Case Protector | None, [RCP] With (25-2x0), [RCP] With (40-200) |
| Orifice Options | None, [BP3] Brass Press Fit Orifice 0.3 mm, [BT3] Brass Threaded Orifice 0.3 mm |
| Marking Options | None, [LM] Laser Marking |
| Tag Options | None, [ST] Stainless Steel Tagging |
| Cerificates | None, [CC] Certified Calibration |
| Press. Gauge Features | |
|---|---|
| Gauge: Brand | Noshok |
| Gauge: Type | Dial Indicating Gauge |
| Gauge: Product Unit of Measure | inH2O, oz/in2, mbar, psi |
| Gauge: 2nd Scale | inH2O |
| Gauge: Process Connection Location | Bottom, In Line, Back Mount, Panel Mount |
| Gauge: Case Material | Steel, Plastic |
| Gauge: Window | Acrylic (PMMA), Flat Instrument Glass |
| Gauge: Dial Material | Aluminum |
| Gauge: Pointer Material | Aluminum |
| Gauge: Bezel Material | Stainless Steel |
| Gauge: Wetted Material | Copper Alloy (Brass) |
| Gauge: Fill Type | Dry |
| Gauge: Dial Size | 2-1/2 in (63 mm & 68 mm), 4 in (100 mm) |
| Gauge: Process Connection Size | 1/4 NPT, 1/8 NPT/10-32 |
| Gauge: Accuracy | ±2%, ±3% |
| Gauge: Measuring Principle | Diaphragm Element |
| Gauge: Pressure Type | Gauge Pressure |
| Gauge: Scale Range | < 6 In.H2O (16 mbar), ≥ 6 In.H2O (16 mbar) to < 10 psi (600 mbar) |
