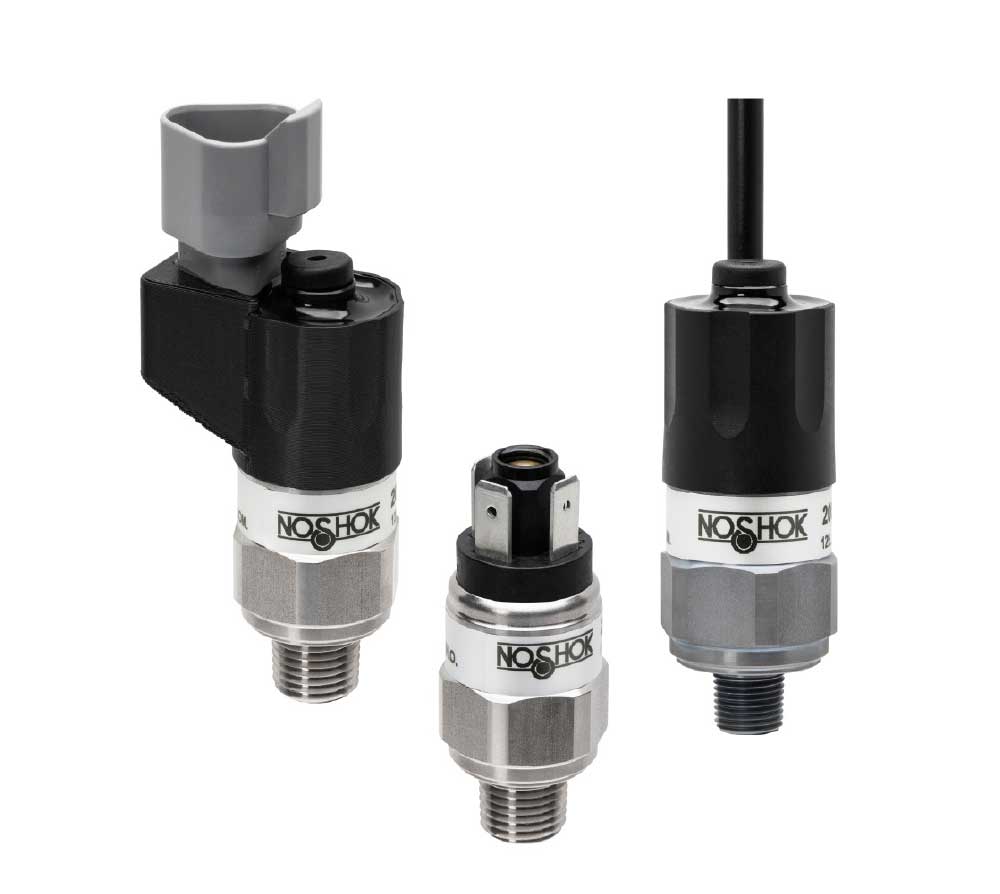

NoShok 200 Series Mechanical Compact Pressure Switch
The NOSHOK 200 Series Mechanical Compact SPDT Pressure Switch is an exceptionally durable and versatile switch designed for a broad range of industrial applications. Known for its extensive service life, this series is available in three distinct versions - Low Pressure Membrane, High Pressure Membrane, and High Pressure Piston - to accommodate various pressure requirements.
This switch features a snap-action micro-switch with solid silver, self-cleaning contacts, ensuring reliable performance across millions of cycles.
Key Features:
- Extended Service Life: Engineered for longevity, with the 200L membrane model rated for over 9,000,000 load cycles.
- Wide Adjustment Ranges: Offers precise switching points from as low as 3 psig up to 4,640 psig, depending on the specific model.
- Corrosion Resistance: The housing is constructed from Zinc-nickel plated Steel (with 316 Stainless Steel available as an option) to provide excellent protection in harsh environments.
- High Repeatability: Delivers consistent performance with a maximum ±2% full-scale repeatability at room temperature.
- Flexible Electrical Connections: Supports a wide variety of connections, including Spade Terminals, M12 x 1, Deutsch, and Weatherpack connectors.
The NOSHOK 200 Series Mechanical Compact SPDT Pressure Switch is an exceptionally durable and versatile switch designed for a broad range of industrial applications. Known for its extensive service life, this series is available in three distinct versions - Low Pressure Membrane, High Pressure Membrane, and High Pressure Piston - to accommodate various pressure requirements.
This switch features a snap-action micro-switch with solid silver, self-cleaning contacts, ensuring reliable performance across millions of cycles.
Key Features:
- Extended Service Life: Engineered for longevity, with the 200L membrane model rated for over 9,000,000 load cycles.
- Wide Adjustment Ranges: Offers precise switching points from as low as 3 psig up to 4,640 psig, depending on the specific model.
- Corrosion Resistance: The housing is constructed from Zinc-nickel plated Steel (with 316 Stainless Steel available as an option) to provide excellent protection in harsh environments.
- High Repeatability: Delivers consistent performance with a maximum ±2% full-scale repeatability at room temperature.
- Flexible Electrical Connections: Supports a wide variety of connections, including Spade Terminals, M12 x 1, Deutsch, and Weatherpack connectors.
Specifications
| NoShok-200-Switch | |
|---|---|
| Model | [200L] Low Pressure, [200M] Medium Pressure, [200H] High Pressure |
| Switch Function | [3] 1 SPDT, [1] 1 SPST, Normally Open, [2] 1 SPST, Normally Closed |
| Process Connection | [1] 1/8" NPT Male, [2] 1/4" NPT Male, [33] G 1/8 Male ISO 228-1, [45] 7/16-20 SAE Male, Non-Adjustable, [62] G 1/4 Male ISO 228-1 |
| Adjustment Range | [3/15] 3 to 15 psig *, [3/30] 3 to 30 psig, [5/30] 5 to 30 psig *, [7/75] 7 to 75 psig, [7/116] 7 to 116 psig, [15/145] 15 to 145 psig, [12/235] 15 to 235 psig, [45/300] 45 to 300 psig, [15/50] 15 to 50 psig, [15/75] 15 to 75 psig *, [15/150] 15 to 150 psig, [45/300] 45 to 300 psig, [125/600] 125 to 600 psig *, [145/435] 145 to 435 psig, [145/1160] 145 to 1160 psig, [145/1740] 145 to 1740 psig, [290/2900] 290 to 2900 psig, [290/3625] 290 to 3625 psig, [435/4640] 435 to 4640 psig, [500/2500] 500 to 2500 psig *, [1000/6000] 1000 to 6000 psig * |
| Electrical Connection | 18" Integral Cable, IP65, [4] Spade Terminals (1/4 × 1/32), [8] DIN EN 175301-803 Form A, [25] M12 x 1 (4-pin), [46] Deutsch Integral 3-pin (DT04-3P), [66] Deutsch Integral 2-pin (DT04-2P) |
| Integral Cable Options | None, [96] Weatherpack Tower, 2-pin Female, [97] Weatherpack Tower, 2-pin Male, [98] Weatherpack Shroud, 2-pin Female, [99] Weatherpack Shroud, 2-pin Male, [100] Deutsch 2-pin Male (DT04-2P), [101] Deutsch 3-pin Male (DT04-3P), [103] Deutsch 2-pin Female Socket (DT06-2S), [104] Deutsch 3-pin Female Socket (DT06-3S), [110] Weatherpack Tower, 3-pin Female, [111] Weatherpack Tower, 3-pin Male, [112] Weatherpack Shroud, 3-pin Female, [113] Weatherpack Shroud, 3-pin Male |
| Contact Option | None, [AU] Gold Plated Contacts |
| Diaphragm Options | None, [EP] EPDM Diaphragm (-40 to 212 °F), [HNBR] Low Temp NBR Diaphragm (-22 to 176 °F), [FVMQ] FVMQ Diaphragm (-40 to 212 °F), [VT] FKM Diaphragm (32 to 212 °F) |
| Material Options | None, [SS] 316 SS Body & Process Connection |
| Switch Point Option | None, [SP] Factory Adjusted Switch Point |
| Pressure Switch Features | |
|---|---|
| Pressure Switch: Type | Snap Action |
| Pressure Switch: Function | SPST, SPDT |
| Pressure Switch: Process Connection | 1/8" NPT, 1/4" NPT, G 1/8B, G 1/4B, 7/16-20 SAE |
| Pressure Switch: Electrical Connection | Cable, Integral Cable, M12 x 1, Deutsch Integral, Spade Terminals |
| Pressure Switch: Diaphragm Material | EPDM, NBR, FVMQ, FKM |
| Pressure Switch: Housing Material | Steel, SS |
| Pressure Switch: Contact Material | Silver, Gold-Plated Silver |
