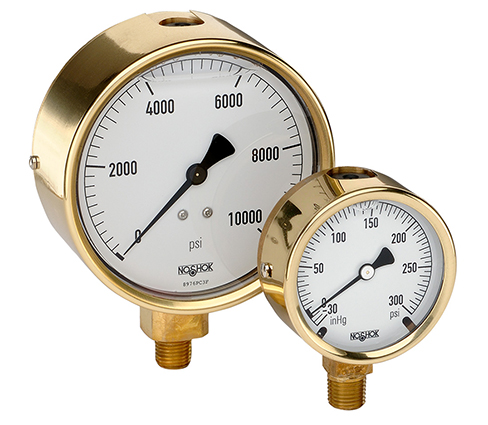

NoShok 300 Series Pressure Gauge, Brass Case, Liquid-Filled
The NOSHOK 300 Series Brass Case Liquid Filled Pressure Gauges are robust, heavy-duty instruments designed for high-performance pressure measurement, ranging from vacuum/compound up to 15,000 psi.
Featuring a die-cast brass case and a glycerin fill to dampen vibration and pulsation, these gauges are ideal for critical applications with high dynamic loads, including hydraulics, pneumatics, mining, construction, and stamping presses. Available in 2-1/2" and 4" dial sizes.
Features
- High quality, heavy-duty liquid filled gauge
- Vacuum and compound ranges through 0 psi to 15,000 psi
- 2-1/2" and 4" gauge sizes
- Die cast Brass case with natural Brass finish
- Copper alloy or 316 Stainless Steel and Brass wetted parts
- Ideal for applications including automotive, construction, hydraulics & pneumatics, mining, stamping & forming presses and transportation
The NOSHOK 300 Series Brass Case Liquid Filled Pressure Gauges are robust, heavy-duty instruments designed for high-performance pressure measurement, ranging from vacuum/compound up to 15,000 psi.
Featuring a die-cast brass case and a glycerin fill to dampen vibration and pulsation, these gauges are ideal for critical applications with high dynamic loads, including hydraulics, pneumatics, mining, construction, and stamping presses. Available in 2-1/2" and 4" dial sizes.
Features
- High quality, heavy-duty liquid filled gauge
- Vacuum and compound ranges through 0 psi to 15,000 psi
- 2-1/2" and 4" gauge sizes
- Die cast Brass case with natural Brass finish
- Copper alloy or 316 Stainless Steel and Brass wetted parts
- Ideal for applications including automotive, construction, hydraulics & pneumatics, mining, stamping & forming presses and transportation
Specifications
| NoShok300PG | |
|---|---|
| Model | [25-300] 2-1/2 in, Bottom Connection, [25-310] 2-1/2 in, Back Connection, [40-300] 4 in, Bottom Connection, [40-310] 4 in, Back Connection |
| Pressure Range | [30-inHg-vac] -30 inHg vacuum to 0 ¹, [30/15-psi] -30 inHg to 0 to 15 psi ¹, [30/30-psi] -30 inHg to 0 to 30 psi ¹, [30/60-psi] -30 inHg to 0 to 60 psi ¹, [30/100-psi] -30 inHg to 0 to 100 psi ¹, [30/160-psi] -30 inHg to 0 to 160 psi ¹, [30/300-psi] -30 inHg to 0 to 300 psi ¹, [15-psi] 0 psi to 15 psi ¹, [30-psi] 0 psi to 30 psi ¹, [60-psi] 0 psi to 60 psi ¹, [100-psi] 0 psi to 100 psi ¹, [160-psi] 0 psi to 160 psi ¹, [200-psi] 0 psi to 200 psi, [300-psi] 0 psi to 300 psi ¹, [400-psi] 0 psi to 400 psi, [600-psi] 0 psi to 600 psi ¹, [800-psi] 0 psi to 800 psi ¹, [1000-psi] 0 psi to 1,000 psi ¹, [1500-psi] 0 psi to 1,500 psi ¹, [2000-psi] 0 psi to 2,000 psi ¹, [3000-psi] 0 psi to 3,000 psi ¹, [5000-psi] 0 psi to 5,000 psi ¹, [6000-psi] 0 psi to 6,000 psi ¹, [7500-psi] 0 psi to 7,500 psi ¹, [10000-psi] 0 psi to 10,000 psi ¹, [15000-psi] 0 psi to 15,000 psi ¹, [30-inHg-vac] -30 inHg vacuum to 0 ², [30/15-psi] -30 inHg to 0 to 15 psi ², [30/30-psi] -30 inHg to 0 to 30 psi ², [30/60-psi] -30 inHg to 0 to 60 psi ², [30/100-psi] -30 inHg to 0 to 100 psi ², [30/160-psi] -30 inHg to 0 to 160 psi ², [30/200-psi] -30 inHg to 0 to 200 psi ², [30/300-psi] -30 inHg to 0 to 300 psi ², [15-psi] 0 psi to 15 psi ², [30-psi] 0 psi to 30 psi ², [60-psi] 0 psi to 60 psi ², [100-psi] 0 psi to 100 psi ², [160-psi] 0 psi to 160 psi ², [200-psi] 0 psi to 200 psi ², [300-psi] 0 psi to 300 psi ², [400-psi] 0 psi to 400 psi ², [600-psi] 0 psi to 600 psi ², [800-psi] 0 psi to 800 psi ², [1000-psi] 0 psi to 1,000 psi ², [1500-psi] 0 psi to 1,500 psi ², [2000-psi] 0 psi to 2,000 psi ², [3000-psi] 0 psi to 3,000 psi ², [5000-psi] 0 psi to 5,000 psi ², [6000-psi] 0 psi to 6,000 psi ², [7500-psi] 0 psi to 7,500 psi ², [10000-psi] 0 psi to 10,000 psi ², [15000-psi] 0 psi to 15,000 psi ², [30-inHg-vac] -30 inHg vacuum to 0 ³, [30/15-psi] -30 inHg to 0 to 15 psi ³, [30/30-psi] -30 inHg to 0 to 30 psi ³, [30/60-psi] -30 inHg to 0 to 60 psi ³, [30/100-psi] -30 inHg to 0 to 100 psi ³, [30/160-psi] -30 inHg to 0 to 160 psi ³, [15-psi] 0 psi to 15 psi ³, [30-psi] 0 psi to 30 psi ³, [60-psi] 0 psi to 60 psi ³, [100-psi] 0 psi to 100 psi ³, [160-psi] 0 psi to 160 psi ³, [200-psi] 0 psi to 200 psi ³, [300-psi] 0 psi to 300 psi ³, [400-psi] 0 psi to 400 psi ³, [600-psi] 0 psi to 600 psi ³, [800-psi] 0 psi to 800 psi ³, [1000-psi] 0 psi to 1,000 psi ³, [1500-psi] 0 psi to 1,500 psi ³, [2000-psi] 0 psi to 2,000 psi ³, [3000-psi] 0 psi to 3,000 psi ³, [5000-psi] 0 psi to 5,000 psi ³, [6000-psi] 0 psi to 6,000 psi ³, [10000-psi] 0 psi to 10,000 psi ³, [15000-psi] 0 psi to 15,000 psi ³, [30-inHg-vac] -30 inHg vacuum to 0 ⁴, [30/15-psi] -30 inHg to 0 to 15 psi ⁴, [30/30-psi] -30 inHg to 0 to 30 psi ⁴, [30/60-psi] -30 inHg to 0 to 60 psi ⁴, [30/100-psi] -30 inHg to 0 to 100 psi ⁴, [30/160-psi] -30 inHg to 0 to 160 psi ⁴, [15-psi] 0 psi to 15 psi ⁴, [30-psi] 0 psi to 30 psi ⁴, [60-psi] 0 psi to 60 psi ⁴, [100-psi] 0 psi to 100 psi ⁴, [160-psi] 0 psi to 160 psi ⁴, [200-psi] 0 psi to 200 psi ⁴, [300-psi] 0 psi to 300 psi ⁴, [400-psi] 0 psi to 400 psi ⁴, [600-psi] 0 psi to 600 psi ⁴, [800-psi] 0 psi to 800 psi ⁴, [1000-psi] 0 psi to 1,000 psi ⁴, [1500-psi] 0 psi to 1,500 psi ⁴, [2000-psi] 0 psi to 2,000 psi ⁴, [3000-psi] 0 psi to 3,000 psi ⁴, [5000-psi] 0 psi to 5,000 psi ⁴, [6000-psi] 0 psi to 6,000 psi ⁴, [10000-psi] 0 psi to 10,000 psi ⁴, [15000-psi] 0 psi to 15,000 psi ⁴ |
| Scale Option | single scale, [/kPa] kPa dual scale, [/kg/cm2] kg/cm2 dual scale, [/bar] bar dual scale |
| Connection Size | 1/4 NPT (Std), [1/2] 1/2 NPT, [SST] SAE J1926-3:7/16-20 Adjustable Connection w/FKM O-Ring, [10-32] 1/8" NPT/10-32 |
| Max Indicating Pointer | None, [MIP] With (25-3x0) |
| Lens Options | Acrylic w/O-Ring Seal (Std), [LL] Polycarbonate Lens (40-3x0), [GLO] Glass Lens Overlay (25-3x0), [SGO] Safety Glass Overlay (25-3x0), [SG] Safety Glass (40-3x0) |
| Flange Options | None, [CFF] Chrome Front Flange (25-3x0), [CFF] Chrome Front Flange (40-3x0), [CFFN] Chrome Front Flange w/o Holes (25-3x0), [CFFN] Chrome Front Flange w/o Holes (40-3x0), [BFF] Brass Front Flange (25-3x0), [BFF] Brass Front Flange (40-3x0), [BLFF] Black Front Flange (40-3x0), [SSRF] 304SS Rear Flange (40-3x0), [RF] Rear Flange (25-3x0) |
| Bezel / Ring Options | None, [CCR] Chrome Cover Ring (25-3x0), [CCR] Chrome Cover Ring (40-300), [CBU] Chrome Bezel w/U-Clamp (25-310), [CBU] Chrome Bezel w/U-Clamp (40-310) |
| Adapter Ring | Without, [AR] Adaptor Ring (25-310) |
| Accuracy Options | Standard, [IA] Increased from 1.6% to 1.0% (25-3x0), [IA] Increased from 1.0% to 0.5% (40-3x0) |
| Orifice Options | None, [BT3] Orifice - Brass Threaded 0.3mm, [BT4] Orifice - Brass Threaded 0.4mm, [BT8] Orifice - Brass Threaded 0.8mm |
| Rubber Case Protector | None, [RCP] With (25-3x0), [RCP] With (40-3x0) |
| Marking Options | None, [LM] Laser Marking |
| Tagging Options | None, [ST] Stainless Steel Tagging |
| Gauge Fill Options | Glycerin (Std), [GY40] -40° Service (25-3x0), [GY40] -40° Service (40-3x0), [SL] Silicone (25-3x0), [SL] Silicone (40-3x0), [HL] Halocarbon (25-3x0), [HL] Halocarbon (40-3x0), [MO] Mineral Oil (25-3x0), [MO] Mineral Oil (40-3x0) |
| Certified Calibration | None, [CC] Certified Calibration |
| Cleaning for O2 Service | None, [O2] Cleaning for Oxygen Service Up to 1,000 psi (25-3x0), [O2] Cleaning for Oxygen Service Up to 1,000 psi (40-3x0), [O2] Cleaning for Oxygen Service 1,500 psi and up (25-3x0), [O2] Cleaning for Oxygen Service 1,500 psi and up (40-3x0) |
| Press. Gauge Features | |
|---|---|
| Gauge: Brand | Noshok |
| Gauge: Type | Dial Indicating Gauge |
| Gauge: Product Unit of Measure | psi / inHg, psi |
| Gauge: 2nd Scale | kPa, kg/cm2, bar |
| Gauge: Process Connection Location | Bottom, In Line, Back Mount |
| Gauge: Case Material | Copper Alloy |
| Gauge: Window | Acrylic (PMMA) |
| Gauge: Dial Material | Aluminum |
| Gauge: Pointer Material | Aluminum |
| Gauge: Wetted Material | Stainless Steel, Copper Alloy (Brass) |
| Gauge: Fill Type | Liquid Filled / Fillable |
| Gauge: Dial Size | 2-1/2 in (63 mm & 68 mm), 4 in (100 mm) |
| Gauge: Process Connection Size | 1/4 NPT, 1/2 NPT, SAE J1926-3:7/16-20 Adjustable |
| Gauge: Accuracy | ±1%, ±2% |
| Gauge: Measuring Principle | Bourdon Tube |
| Gauge: Pressure Type | Gauge Pressure |
| Gauge: Scale Range | < 6 In.H2O (16 mbar), ≥ 6 In.H2O (16 mbar) to < 10 psi (600 mbar), ≥ 10 psi (0.6 bar) to ≤ 15,000 psi (1,000 bar) |
