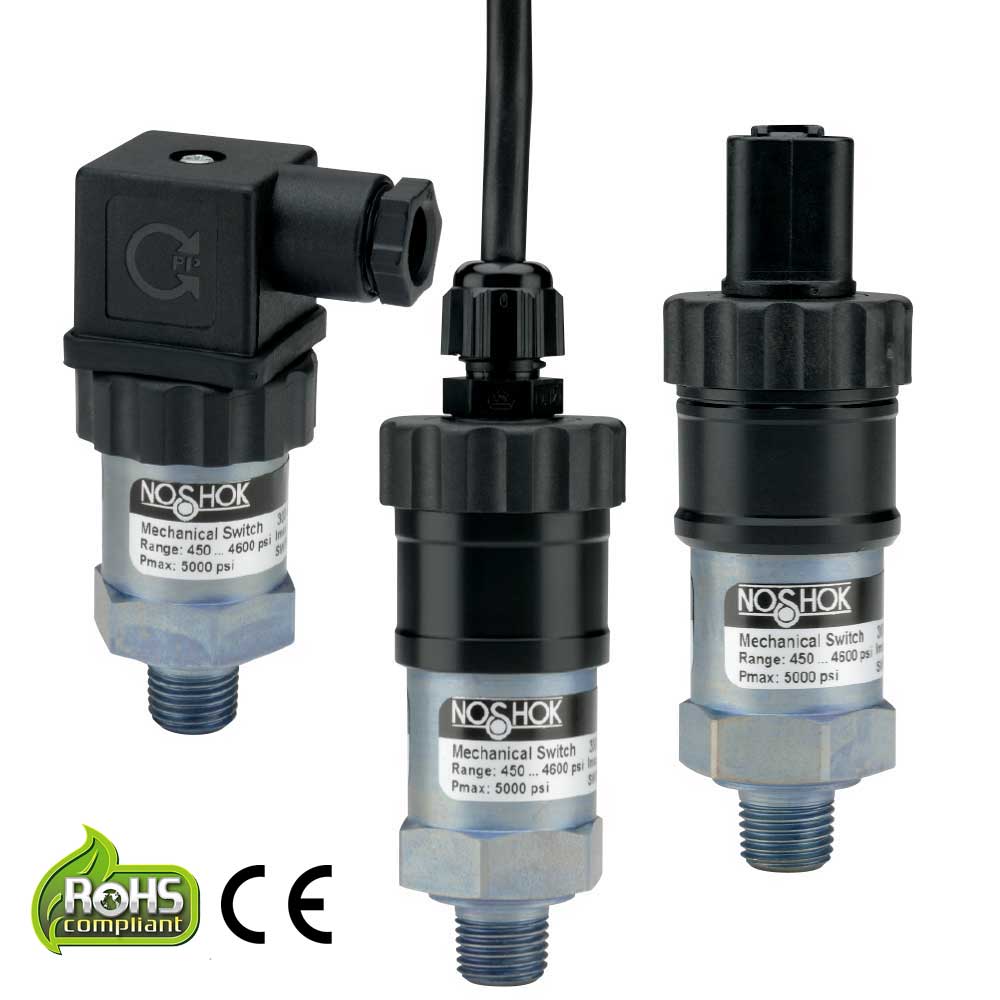

NoShok 300 Series Pressure Switch
The NOSHOK 300 Series Mechanical Compact Pressure Switch is a versatile and reliable solution for a wide range of industrial applications, including hydraulics, pneumatics, and tank monitoring. This switch features a durable zinc-nickel plated steel housing and utilizes proven diaphragm or piston sensing technology to provide exceptional repeatability and service life.
With a field-adjustable switching point and adjustable hysteresis (10-30% of the switch point), this SPDT (Single Pole Double Throw) switch offers precise control and flexibility. The micro-switch technology incorporates solid silver, self-cleaning contacts to ensure long-term dependability even in frequent-use environments.
Key Features:
Flexible Pressure Ranges: Available in various configurations from vacuum (-5 inHg to -28 inHg) up to high-pressure scales (450 psig to 4,600 psig).
Adjustable Hysteresis: Allows for fine-tuning of the reset point, typically between 10% and 30% of the set point.
Rugged Construction: Zinc-nickel plated steel housing provides excellent corrosion resistance and durability.
Precision Contacts: Features SPDT snap-action switching with self-cleaning silver contacts for superior electrical conductivity.
High Cycle Life: Rated for over 1,000,000 load cycles, making it suitable for high-frequency operations.
Environmental Protection: Rated IP65 (for Hirschmann connections) or IP67 (for M12 and other integral cable options).
* Non-Standard Range
The NOSHOK 300 Series Mechanical Compact Pressure Switch is a versatile and reliable solution for a wide range of industrial applications, including hydraulics, pneumatics, and tank monitoring. This switch features a durable zinc-nickel plated steel housing and utilizes proven diaphragm or piston sensing technology to provide exceptional repeatability and service life.
With a field-adjustable switching point and adjustable hysteresis (10-30% of the switch point), this SPDT (Single Pole Double Throw) switch offers precise control and flexibility. The micro-switch technology incorporates solid silver, self-cleaning contacts to ensure long-term dependability even in frequent-use environments.
Key Features:
Flexible Pressure Ranges: Available in various configurations from vacuum (-5 inHg to -28 inHg) up to high-pressure scales (450 psig to 4,600 psig).
Adjustable Hysteresis: Allows for fine-tuning of the reset point, typically between 10% and 30% of the set point.
Rugged Construction: Zinc-nickel plated steel housing provides excellent corrosion resistance and durability.
Precision Contacts: Features SPDT snap-action switching with self-cleaning silver contacts for superior electrical conductivity.
High Cycle Life: Rated for over 1,000,000 load cycles, making it suitable for high-frequency operations.
Environmental Protection: Rated IP65 (for Hirschmann connections) or IP67 (for M12 and other integral cable options).
* Non-Standard Range
Specifications
| NoShok-300-Switch | |
|---|---|
| Model | [300V] 300 Series Vacuum, [300L] 300 Series Low Pressure, [300H] 300 Series High Pressure |
| Switch Function | [1] 1 SPST, Normally Open, [2] 1 SPST, Normally Closed, [3] 1 SPDT |
| Process Connection | [2] 1/4" NPT Male, [1] 1/8" NPT Male, [10] G 1/4B, [33] G 1/8B |
| Adjustment Range | [5/28-vac] -5 to -28 inHg, [3/7] 3 to 7 psig, [3/15] 3 to 15 psig, [3/30] 3 to 30 psig, [7/70] 7 to 70 psig, [7/120] 7 to 120 psig, [15/200] 15 to 200 psig, [15/230] 15 to 230 psig, [30/290] 30 to 290 psia, [100/220] 100 to 220 psig, [145/1160] 145 to 1160 psig *, [145/435] 145 to 435 psig, [145/1180] 145 to 1180 psig, [145/1750] 145 to 1750 psig, [145/2320] 145 to 2320 psig *, [300/2900] 300 to 2900 psig, [300/3600] 300 to 3600 psig, [450/4600] 450 to 4600 psig |
| Electrical Connection | 3' Integral Cable, [8] DIN EN 175301-803 Form A, [1] 36" Cable, [25] M12 x 1 (4-pin), [66] Deutsch Integral 2-pin (DT04-2P) |
| Integral Cable Options | N/A, [36] None, [96] Weatherpack Tower, 2-pin Female, [97] Weatherpack Tower, 2-pin Male, [98] Weatherpack Shroud, 2-pin Female, [99] Weatherpack Shroud, 2-pin Male, [100] Deutsch 2-pin Male (DT04-2P), [101] Deutsch 3-pin Male (DT04-3P), [103] Deutsch 2-pin Female Socket, [104] Deutsch 3-pin Female Socket, [110] Weatherpack Tower, 3-pin Female, [111] Weatherpack Tower, 3-pin Male, [112] Weatherpack Shroud, 3-pin Female, [113] Weatherpack Shroud, 3-pin Male |
| Diaphragm Options | None, [EP] EPDM Diaphragm (-40 to 212°F), [HNBR] Low Temp Nitrile Diaphragm (-40 to 176°F), [VT] FKM Diaphragm (0 to 250°F) |
| Material Options | None, [SS] 316 SS Body & Process Connection |
| Switch Point Option | None, [SP] Factory Adjusted Switch Point |
| Pressure Switch Features | |
|---|---|
| Pressure Switch: Type | Snap Action w/Adjustable Hysteresis |
| Pressure Switch: Style | Vacuum, Low Pressure, High Pressure |
| Pressure Switch: Function | SPST, SPDT |
| Pressure Switch: Process Connection | 1/8" NPT, 1/4" NPT, G 1/8B, G 1/4B, 7/16-20 SAE |
| Pressure Switch: Electrical Connection | Cable, Integral Cable, M12 x 1, Deutsch Integral |
| Pressure Switch: Diaphragm Material | EPDM, NBR, FKM |
| Pressure Switch: Measuring Element | NBR |
| Pressure Switch: Housing Material | Steel |
| Pressure Switch: Contact Material | Silver |
| Pressure Switch: IP Rating | IP65, IP67 |
