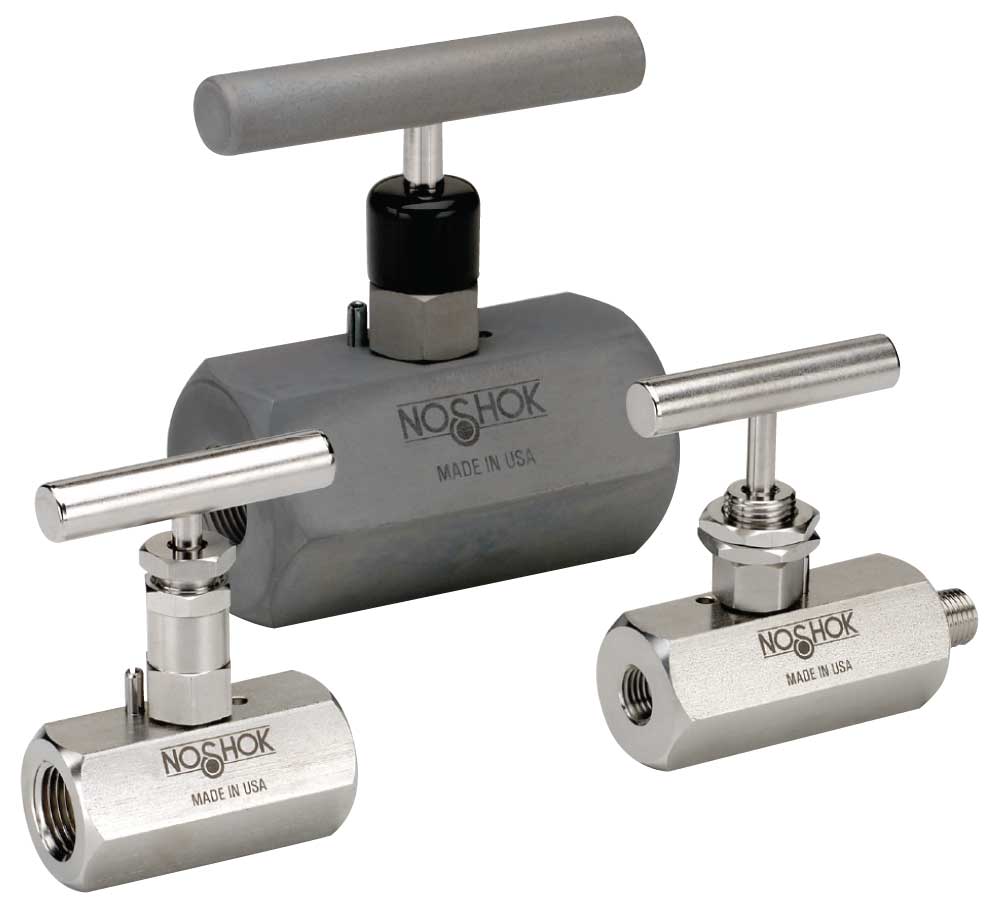

NoShok 400 Series Standard, Hard Seat Needle Valve
The NOSHOK 400 Series Standard Hard Seat Needle Valve is a heavy-duty valve designed for high-pressure, high-temperature industrial environments. It features a robust one-piece bonnet with a metal-to-metal seal and a blow-out proof stem, making it a reliable choice for severe service applications in oil and gas or manufacturing.
Key Features:
-
High-Pressure Capacity: Rated for 10,000 psi for sizes up to 1/2 inch NPT and 8,000 psi for sizes up to 1-1/2 inch NPT.
-
Leak Integrity: 100% helium leak tested to 1 x 10-4 ml/s to ensure bubble-tight performance and safety.
-
Durable Construction: Bodies are made from zinc-nickel plated steel or electropolished 316 stainless steel, with all stems constructed from 316 stainless steel.
-
Smooth Operation: Rolled stem threads provide high strength and ease of movement, even under maximum pressure.
-
Safety Features: A slotted spring pin prevents accidental loosening of the bonnet, and the blow-out proof stem provides a secondary seal in the full open position.
The NOSHOK 400 Series Standard Hard Seat Needle Valve is a heavy-duty valve designed for high-pressure, high-temperature industrial environments. It features a robust one-piece bonnet with a metal-to-metal seal and a blow-out proof stem, making it a reliable choice for severe service applications in oil and gas or manufacturing.
Key Features:
-
High-Pressure Capacity: Rated for 10,000 psi for sizes up to 1/2 inch NPT and 8,000 psi for sizes up to 1-1/2 inch NPT.
-
Leak Integrity: 100% helium leak tested to 1 x 10-4 ml/s to ensure bubble-tight performance and safety.
-
Durable Construction: Bodies are made from zinc-nickel plated steel or electropolished 316 stainless steel, with all stems constructed from 316 stainless steel.
-
Smooth Operation: Rolled stem threads provide high strength and ease of movement, even under maximum pressure.
-
Safety Features: A slotted spring pin prevents accidental loosening of the bonnet, and the blow-out proof stem provides a secondary seal in the full open position.
Specifications
| NoShok-400-NValve | |
|---|---|
| Material | Steel ², Stainless Steel ³ |
| Model | [402-FFC] 1/4" NPT Female - 1/4" NPT Female, [403-FFC] 3/8" NPT Female - 3/8" NPT Female, [404-FFC] 1/2" NPT Female - 1/2" NPT Female, [406-FFC] 3/4" NPT Female - 3/4" NPT Female *, [408-FFC] 1" NPT Female - 1" NPT Female *, [410-FFC] 1-1/4" NPT Female - 1-1/4" NPT Female *, [412-FFC] 1-1/2" NPT Female - 1-1/2" NPT Female *, [442-FFC] 7/16"-20 UNF 2B Female-Female, [402-FFS] 1/4" NPT Female - 1/4" NPT Female, [403-FFS] 3/8" NPT Female - 3/8" NPT Female, [404-FFS] 1/2" NPT Female - 1/2" NPT Female, [406-FFS] 3/4" NPT Female-3/4" NPT Female *, [408-FFS] 1" NPT Female - 1" NPT Female *, [410-FFS] 1-1/4" NPT Female - 1-1/4" NPT Female *, [412-FFS] 1-1/2" NPT Female - 1-1/2" NPT Female *, [442-FFS] 7/16"-20 UNF 2B Female-Female, [402-MFC] 1/4" NPT Male - 114" NPT Female, [404-MFC] 1/2" NPT Male - 1/2" NPT Female, [406-MFC] 3/4" NPT Male - 3/4" NPT Female *, [408-MFC] 1" NPT Male - 1" NPT Female *, [410-MFC] 1-1/4" NPT Male - 1-1/4" NPT Female *, [412-MFC] 1-1/2" NPT Male - 1-1/2" NPT Female *, [402-MFS] 1/4" NPT Male - 1/4" NPT Female, [403-MFS] 3/8" NPT Male - 3/8° NPT Female, [404-MFS] 1/2" NPT Male - 1/2" NPT Female, [406-MFS] 3/4" NPT Male - 3/4" NPT Female *, [408-MFS] 1" NPT Male - 1" NPT Female *, [410-MFS] 1-1/4" NPT Male - 1-1/4" NPT Female *, [412-MFS] 1-1/2" NPT Male - 1-1/2" NPT Female *, [402-FFAC] 1/4" NPT Female - 1/4" NPT Female Angle, [404-FFAC] 1/2" NPT Female - 1/2" NPT Female Angle, [402-FFAS] 1/4" NPT Female - 1/4" NPT Female Angle, [404-FFAS] 1/2" NPT Female - 1/2" NPT Female Angle, [402-MFAC] 1/4" NPT Male - 1/4" NPT Female Angle, [404-MFAC] 1/2" NPT Male - 1/2" NPT Female Angle, [402-MFAS] 1/4" NPT Male - 1/4" NPT Female Angle, [404-MFAS] 1/2" NPT Male - 1/2" NPT Female Angle |
| O-Ring Options | None, [AF1] Aflas, [KZ1] Kalrez 6375, [KZ2] Kalrez 4079, [KZ3] Simriz 89D, [KZ4] Kalrez 7075, [EL1] Elast O Lion, [EM1] EPDM 80, [EM2] EPDM 90, [EM3] EPDM 70, [NB1] NBR 70, [VT1] Low Temp FKM, [EM1] EPDM 70 *, [KZ2] Kairez 4079 *, [EL1] Elast O Lion *, [VT2] Low Temp FKM * |
| Stem Tip Options | None, [T1] Non-Rotating V-Tip, [T5] Non-Rotating 440C Ball, [T6] Non-Rotating Carbide Ball |
| Material Packing | None, [P1] Teflon ², [P1] Teflon ³, [P2] Graphite ², [P2] Graphite ³ |
| Mounting Option | None, [PM2] Panel Mount ², [PM2] Panel Mount ³ |
| Handle Options | Standard, [HL4] 1.375" Dia. Phenolic, [HL5] 1.75" Dia. Phenolic, [HL9] 2.375" Dia. Phenolic |
| Cleaning Option | None, Cleaning for Oxygen Service ³ |
| Needle Valve Features | |
|---|---|
| Needle Valve: Material | Steel, Brass, SS |
| Needle Valve: Connection Size | 1/8 NPT, 1/4 NPT |
| Needle Valve: Connection Type | Male - Male, Male - Female, Male - Female Angle, Female - Female, Female - Female Angle |
| Needle Valve: Orifice size | 0.172" |
| Needle Valve: Flow Coefficient | 0.42 Cv |
| Needle Valve: Handle | Round Knurled, "T" Handle, Phenolic |
| Needle Valve: Optional Mount | Panel Mount |
| Needle Valve: Optional Packing | Teflon |
| Needle Valve: Optional Stem Tip | V-Top, 440C Ball, Carbide Ball |
| Needle Valve: Optional O-Ring | Aflas, Kalrez, Simriz, Elast O Lion, PDM, NBR, FKM |
