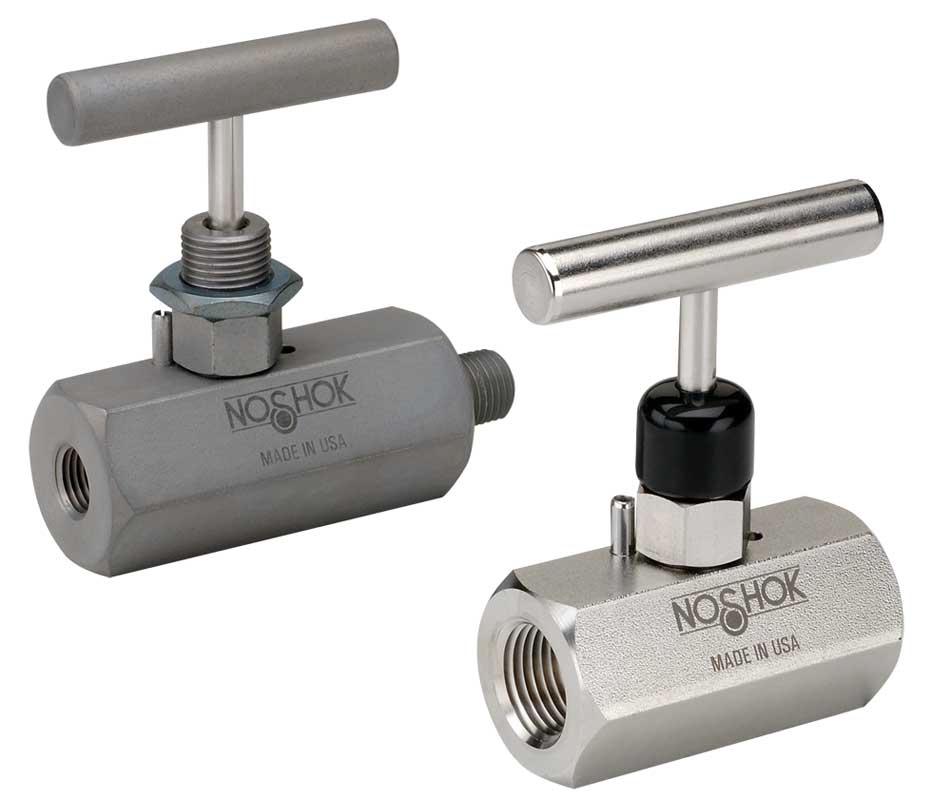

NoShok 500 Series Standard, Soft Seat Needle Valve
The NOSHOK 500 Series Standard Soft Seat Needle Valve is a high-capacity valve designed for applications that require a bubble-tight shut-off and high flow rates. It features a replaceable soft seat and a straight-through porting design, which allows for bidirectional flow and makes it easy to clean using a rod.
This series is frequently used in oil and gas, chemical processing, and industrial automation where clean, efficient fluid or gas control is necessary.
Key Features:
-
Bubble-Tight Shut-Off: The replaceable Acetal soft seat ensures a zero-leak seal, even in high-pressure gas applications.
-
High Flow Capacity: The straight-through design provides a high flow coefficient (CV up to 4.0 for larger sizes), minimizing pressure drop.
-
Reliable Safety: Includes a blow-out proof stem that acts as a secondary seal when the valve is fully open.
-
Durable Stem Design: All stems are made from 316 Stainless Steel with rolled threads for increased strength and smooth operation.
-
Leak Testing: Every unit is 100% helium leak tested to 1 x 10-4 ml/s to ensure field reliability.
The NOSHOK 500 Series Standard Soft Seat Needle Valve is a high-capacity valve designed for applications that require a bubble-tight shut-off and high flow rates. It features a replaceable soft seat and a straight-through porting design, which allows for bidirectional flow and makes it easy to clean using a rod.
This series is frequently used in oil and gas, chemical processing, and industrial automation where clean, efficient fluid or gas control is necessary.
Key Features:
-
Bubble-Tight Shut-Off: The replaceable Acetal soft seat ensures a zero-leak seal, even in high-pressure gas applications.
-
High Flow Capacity: The straight-through design provides a high flow coefficient (CV up to 4.0 for larger sizes), minimizing pressure drop.
-
Reliable Safety: Includes a blow-out proof stem that acts as a secondary seal when the valve is fully open.
-
Durable Stem Design: All stems are made from 316 Stainless Steel with rolled threads for increased strength and smooth operation.
-
Leak Testing: Every unit is 100% helium leak tested to 1 x 10-4 ml/s to ensure field reliability.
Specifications
| NoShok-500-NValve | |
|---|---|
| Material | Steel ², Stainless Steel ³ |
| Model | [502-FFC] 1/4" NPT Female - 1/4" NPT Female, [503-FFC] 3/8" NPT Female - 3/8" NPT Female, [504-FFC] 1/2" NPT Female - 1/2" NPT Female, [508-FFC] 1" NPT Female - 1" NPT Female *, [502-FFS] 1/4" NPT Female - 1/4" NPT Female, [503-FFS] 3/8" NPT Female - 3/8" NPT Female, [504-FFS] 1/2" NPT Female - 1/2" NPT Female, [508-FFS] 1" NPT Female - 1" NPT Female *, [502-MFC] 1/4" NPT Male - 1/4" NPT Female, [504-MFC] 1/2" NPT Male - 1/2" NPT Female, [50402-MFC] 1/2" NPT Male - 1/4" NPT Female, [502-MFS] 1/4" NPT Male - 1/4" NPT Female, [504-MFS] 1/2" NPT Male - 1/2" NPT Female |
| Handle Options | Standard, [HL4] 1.375" Dia. Phenolic, [HL5] 1.75" Dia. Phenolic, [HL9] 2.375" Dia. Phenolic |
| O-Ring Options | None, [AF1] Aflas, [KZ1] Kalrez 6375, [K72] Kalrez 4079, [KZ3] Simriz 89D, [K74] Kalrez 7075, [EL1] Elast O Lion, [EM1] EPDM 80, [EM2] EPDM 90, [EM3] EPDM 70, [NB1] NBR 70, [VT1] Low Temp FKM, [EM1] EPDM 70 *, [KZ2] Kalrez 4079 *, [EL1] Elast O Lion *, [VT2] Low Temp FKM * |
| Mounting Option | None, [PM2] Panel Mount ², [PM2] Panel Mount ³ |
| Material Packing | None, [P1] Teflon ², [P1] Teflon ³ |
| Stem Tip Options | None, [T1] Non-Rotating V-Tip, [T5] Non-Rotating 440C Ball, [T6] Non-Rotating Carbide Ball |
| Cleaning Option | None, Cleaning for Oxygen Service ³ |
| Needle Valve Features | |
|---|---|
| Needle Valve: Material | Steel, Brass, SS |
| Needle Valve: Connection Size | 1/8 NPT, 1/4 NPT |
| Needle Valve: Connection Type | Male - Male, Male - Female, Male - Female Angle, Female - Female, Female - Female Angle |
| Needle Valve: Orifice size | 0.187", 0.438" |
| Needle Valve: Flow Coefficient | 0.42 Cv |
| Needle Valve: Handle | Round Knurled, "T" Handle, Phenolic |
| Needle Valve: Optional Mount | Panel Mount |
| Needle Valve: Optional Packing | Teflon |
| Needle Valve: Optional Stem Tip | V-Top, 440C Ball, Carbide Ball |
| Needle Valve: Optional O-Ring | Aflas, Kalrez, Simriz, Elast O Lion, PDM, NBR, FKM |
