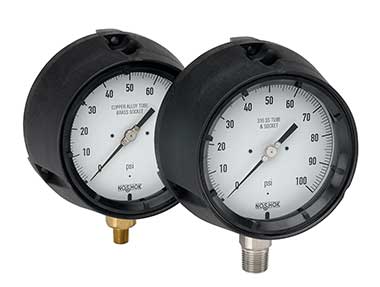

Representative photo. Please check item description for details.
NoShok 600/700 Series Pressure Gauge, Process & Low Pressure Process
The NOSHOK 600 Series (Brass wetted parts) and 700 Series (316 Stainless Steel wetted parts) are high-accuracy process gauges designed for superior reliability and long-term service in severe industrial environments.
Featuring a black Polypropylene safety case with a solid front and blow-out back, these gauges deliver ±0.5% full scale accuracy and cover pressures from vacuum/compound up to 15,000 psi. They are ideal for use in chemical, oil & gas, and water/wastewater industries. Available in a 4-1/2" dial size.
Features
- Turret style dry (field fillable) and liquid filled process gauges
- Vacuum and compound ranges through 0 psi to 15,000 psi
- 4-1/2" gauge sizes
- Solid front and blow-out back
- Black Polypropylene safety case
700 Series low pressure - black PBT safety case - 316 Stainless Steel and Brass wetted parts
The NOSHOK 600 Series (Brass wetted parts) and 700 Series (316 Stainless Steel wetted parts) are high-accuracy process gauges designed for superior reliability and long-term service in severe industrial environments.
Featuring a black Polypropylene safety case with a solid front and blow-out back, these gauges deliver ±0.5% full scale accuracy and cover pressures from vacuum/compound up to 15,000 psi. They are ideal for use in chemical, oil & gas, and water/wastewater industries. Available in a 4-1/2" dial size.
Features
- Turret style dry (field fillable) and liquid filled process gauges
- Vacuum and compound ranges through 0 psi to 15,000 psi
- 4-1/2" gauge sizes
- Solid front and blow-out back
- Black Polypropylene safety case
700 Series low pressure - black PBT safety case - 316 Stainless Steel and Brass wetted parts
Specifications
| NoShok600/700PG | |
|---|---|
| Model | [45-640] 4-1/2 in, Brass, Dry, Bottom Connection ¹, [45-740] 4-1/2 in, SS, Dry, Bottom Connection ², [45-660] 4-1/2 in, Brass, Liquid Filled, Bottom Connection ³, [45-760] 4-1/2 in, SS, Liquid Filled, Bottom Connection ⁴, [45-740] 4-1/2 in, Low Pressure, SS, Dry, Bottom Connection ⁵ |
| Pressure Range | [30-vac] -30 inHg Vacuum to 0 ¹, [30/15-psi] -30 inHg to 0 to 15 psi ¹, [30/30-psi] -30 inHg to 0 to 30 psi ¹, [15-psi] 0 psi to 15 psi ¹, [30-psi] 0 psi to 30 psi ¹, [60-psi] 0 psi to 60 psi ¹, [100-psi] 0 psi to 100 psi ¹, [160-psi] 0 psi to 160 psi ¹, [200-psi] 0 psi to 200 psi ¹, [300-psi] 0 psi to 300 psi ¹, [600-psi] 0 psi to 600 psi ¹, [1000-psi] 0 psi to 1,000 psi ¹, [1500-psi] 0 psi to 1,500 psi ¹, [2000-psi] 0 psi to 2,000 psi ¹, [3000-psi] 0 psi to 3,000 psi ¹, [5000-psi] 0 psi to 5,000 psi ¹, [6000-psi] 0 psi to 6,000 psi ¹, [10000-psi] 0 psi to 10,000 psi ¹, [30-vac] -30 inHg Vacuum to 0 ², [30/15-psi] -30 inHg to 0 to 15 psi ², [30/30-psi] -30 inHg to 0 to 30 psi ², [30/60-psi] -30 inHg to 0 to 60 psi ², [30/100-psi] -30 inHg to 0 to 100 psi ², [30/160-psi] -30 inHg to 0 to 160 psi ², [30/200-psi] -30 inHg to 0 to 200 psi ², [30/300-psi] -30 inHg to 0 to 300 psi ², [15-psi] 0 psi to 15 psi ², [30-psi] 0 psi to 30 psi ², [60-psi] 0 psi to 60 psi ², [100-psi] 0 psi to 100 psi ², [160-psi] 0 psi to 160 psi ², [200-psi] 0 psi to 200 psi ², [300-psi] 0 psi to 300 psi ², [400-psi] 0 psi to 400 psi ², [600-psi] 0 psi to 600 psi ², [800-psi] 0 psi to 800 psi ², [1000-psi] 0 psi to 1,000 psi ², [1500-psi] 0 psi to 1500 psi ², [2000-psi] 0 psi to 2,000 psi ², [3000-psi] 0 psi to 3,000 psi ², [5000-psi] 0 psi to 5,000 psi ², [6000-psi] 0 psi to 6,000 psi ², [10000-psi] 0 psi to 10,000 psi ², [15000-psi] 0 psi to 15,000 psi ⁴, [30-vac] -30 inHg Vacuum to 0 ³, [30/15-psi] -30 inHg to 0 to 15 psi ³, [30/30-psi] -30 inHg to 0 to 30 psi ³, [15-psi] 0 psi to 15 psi ³, [30-psi] 0 psi to 30 psi ³, [60-psi] 0 psi to 60 psi ³, [100-psi] 0 psi to 100 psi ³, [160-psi] 0 psi to 160 psi ³, [200-psi] 0 psi to 200 psi ³, [300-psi] 0 psi to 300 psi ³, [600-psi] 0 psi to 600 psi ³, [1000-psi] 0 psi to 1,000 psi ³, [1500-psi] 0 psi to 1,500 psi ³, [2000-psi] 0 psi to 2,000 psi ³, [3000-psi] 0 psi to 3,000 psi ³, [5000-psi] 0 psi to 5,000 psi ³, [6000-psi] 0 psi to 6,000 psi ³, [10000-psi] 0 psi to 10,000 psi ³, [30-vac] -30 inHg Vacuum to 0 ⁴, [30/15-psi] -30 inHg to 0 to 15 psi ⁴, [30/30-psi] -30 inHg to 0 to 30 psi ⁴, [30/60-psi] -30 inHg to 0 to 60 psi ⁴, [30/100-psi] -30 inHg to 0 to 100 psi ⁴, [30/160-psi] -30 inHg to 0 to 160 psi ⁴, [30/200-psi] -30 inHg to 0 to 200 psi ⁴, [30/300-psi] -30 inHg to 0 to 300 psi ⁴, [15-psi] 0 psi to 15 psi ⁴, [30-psi] 0 psi to 30 psi ⁴, [60-psi] 0 psi to 60 psi ⁴, [100-psi] 0 psi to 100 psi ⁴, [160-psi] 0 psi to 160 psi ⁴, [200-psi] 0 psi to 200 psi ⁴, [300-psi] 0 psi to 300 psi ⁴, [400-psi] 0 psi to 400 psi ⁴, [600-psi] 0 psi to 600 psi ⁴, [800-psi] 0 psi to 800 psi ⁴, [1000-psi] 0 psi to 1,000 psi ⁴, [1500-psi] 0 psi to 1,500 psi ⁴, [2000-psi] 0 psi to 2,000 psi ⁴, [3000-psi] 0 psi to 3,000 psi ⁴, [5000-psi] 0 psi to 5,000 psi ⁴, [6000-psi] 0 psi to 6,000 psi ⁴, [10000-psi] 0 psi to 10,000 psi ⁴, [15000-psi] 0 psi to 15,000 psi ⁴, [30-inH2O-vac] -30 inH2O to 0 inH2O ⁵, [60-inH2O-vac] -60 inH2O to 0 inH2O ⁵, [10-inH2O] 0 inH2O to 10 inH2O ⁵, [15-inH2O] 0 inH2O to 15 inH2O ⁵, [20-inH2O] 0 inH2O to 20 inH2O ⁵, [30-inH2O] 0 inH2O to 30 inH2O ⁵, [40-inH2O] 0 inH2O to 40 inH2O ⁵, [60-inH2O] 0 inH2O to 60 inH2O ⁵, [80-inH2O] 0 inH2O to 80 inH2O ⁵, [100-inH2O] 0 inH2O to 100 inH2O ⁵, [0-5-psi] 0 psi to 5 psi ⁵, [0-10-psi] 0 psi to 10 psi ⁵ |
| Scale Option | single scale, [/kPa] kPa dual scale, [/kg/cm2] kg/cm2 dual scale, [/bar] bar dual scale, [/ozin2] ozin2 dual scale |
| Connection Size | 1/4 NPT (Std), 1/2 NPT (Std), [1/4] 1/4 NPT, [10-32] 10-32-UNF-2B (45-6x0), [10-32] 10-32-UNF-2B (45-7x0) |
| Lens Options | Acrylic (Std), [SG] Safety Glass Lens, [GL] Glass Lens |
| Max Indicating Pointer | None, [MIP] With |
| Overload Stop | None, [OS] With |
| Orifice Options | None, [BT3] Brass Threaded 0.3mm, [BT8] Brass Threaded 0.8mm, [ST8] SS Threaded 0.8mm |
| Gauge Fill Options | Dry/Fillable, Glycerin, [GY40] -40° Service, [SL] Silicone, [HL] Halocarbon, [MO] Mineral Oil |
| Certified Calibration | None, [CC] Vacuum through 15,000 psi |
| Cleaning for O2 Service | None, [O2] Up to 1,000 psi, [O2] 1,500 psi and up |
| Press. Gauge Features | |
|---|---|
| Gauge: Brand | Noshok |
| Gauge: Type | Dial Indicating Gauge |
| Gauge: Product Unit of Measure | psi, psi / inHg |
| Gauge: 2nd Scale | kPa, kg/cm2, bar |
| Gauge: Process Connection Location | Bottom, In Line |
| Gauge: Case Material | Plastic |
| Gauge: Window | Acrylic (PMMA) |
| Gauge: Dial Material | Aluminum |
| Gauge: Pointer Material | Aluminum |
| Gauge: Window Ring | Bayonet Ring |
| Gauge: Wetted Material | Stainless Steel, Copper Alloy (Brass) |
| Gauge: Fill Type | Liquid Filled / Fillable |
| Gauge: Dial Size | 4-1/2 in (110 & 115 mm) |
| Gauge: Process Connection Size | 1/4 NPT, 1/2 NPT, 10-32 Female |
| Gauge: Accuracy | ±0.5%, ±2% |
| Gauge: Measuring Principle | Bourdon Tube |
| Gauge: Pressure Type | Gauge Pressure |
| Gauge: Scale Range | < 6 In.H2O (16 mbar), ≥ 6 In.H2O (16 mbar) to < 10 psi (600 mbar), ≥ 10 psi (0.6 bar) to ≤ 15,000 psi (1,000 bar) |
