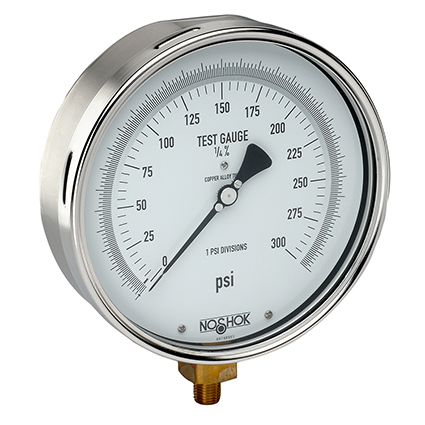

NoShok 800 Series 6" Precision Test Pressure Gauge
The NOSHOK 800 Series gauges are highly accurate, dry instruments engineered for demanding calibration and precision measurement applications.
Featuring a 304 Stainless Steel case, brass movement with jeweled bearings, and a combination of Beryllium Copper and 316 Stainless Steel wetted parts, these gauges offer a high accuracy of ±0.25% full scale, measuring from vacuum/compound up to 6,000 psi. They are ideal for laboratory & test equipment, gauge repair facilities, and critical precision measurement. Available in a 6" dial size.
Features
- Highly accurate dry gauge
- Vacuum and compound ranges through 0 psi to 6,000 psi
- 6" gauge size
- Stainless Steel case
- Beryllium Copper, 316 Stainless Steel, and Brass wetted parts
- Ideal for applications including aerospace equipment, gauge repair facilities, laboratory & test equipment and precision measurement
The NOSHOK 800 Series gauges are highly accurate, dry instruments engineered for demanding calibration and precision measurement applications.
Featuring a 304 Stainless Steel case, brass movement with jeweled bearings, and a combination of Beryllium Copper and 316 Stainless Steel wetted parts, these gauges offer a high accuracy of ±0.25% full scale, measuring from vacuum/compound up to 6,000 psi. They are ideal for laboratory & test equipment, gauge repair facilities, and critical precision measurement. Available in a 6" dial size.
Features
- Highly accurate dry gauge
- Vacuum and compound ranges through 0 psi to 6,000 psi
- 6" gauge size
- Stainless Steel case
- Beryllium Copper, 316 Stainless Steel, and Brass wetted parts
- Ideal for applications including aerospace equipment, gauge repair facilities, laboratory & test equipment and precision measurement
Specifications
| NoShok800PG | |
|---|---|
| Pressure Range | [30-vac] -30 inHg Vacuum to 0, [15-psi] 0 psi to 15 psi, [30-psi] 0 psi to 30 psi, [60-psi] 0 psi to 60 psi, [100-psi] 0 psi to 100 psi, [160-psi] 0 psi to 160 psi, [200-psi] 0 psi to 200 psi, [300-psi] 0 psi to 300 psi, [600-psi] 0 psi to 600 psi, [1000-psi] 0 psi to 1,000 psi, [2000-psi] 0 psi to 2,000 psi, [3000-psi] 0 psi to 3,000 psi, [5000-psi] 0 psi to 5,000 psi, [6000-psi] 0 psi to 6,000 psi |
| Connection Size | 1/4 NPT (Std), [10-32] 10-32-UNF-2B |
| Flange Options | None, [SSFF] SS Front Flange, [SSRF] SS Rear Flange |
| Marking Options | None, [LM] Laser Marking |
| Tagging Options | None, [ST] SS Tagging |
| Carrying Case | None, [GC] With |
| Certified Calibration | None, [CC] With |
| Cleaning for O2 Service | None, [O2] Up to 1,000 psi, [O2] 1,500 psi and up |
| Press. Gauge Features | |
|---|---|
| Gauge: Brand | Noshok |
| Gauge: Type | Dial Indicating Gauge |
| Gauge: Product Unit of Measure | psi, psi / inHg |
| Gauge: Process Connection Location | Bottom, In Line |
| Gauge: Case Material | Stainless Steel |
| Gauge: Window | Flat Instrument Glass |
| Gauge: Dial Material | Aluminum |
| Gauge: Pointer Type | Adjustable, Knife Edge |
| Gauge: Wetted Material | Carbon Steel, Stainless Steel |
| Gauge: Fill Type | Dry |
| Gauge: Dial Size | 6 in (160 mm) |
| Gauge: Process Connection Size | 1/4 in, 10-32 Female |
| Gauge: Accuracy | ±0.25% |
| Gauge: Measuring Principle | Bourdon Tube |
| Gauge: Pressure Type | Gauge Pressure |
| Gauge: Scale Range | < 6 In.H2O (16 mbar), ≥ 6 In.H2O (16 mbar) to < 10 psi (600 mbar), ≥ 10 psi (0.6 bar) to ≤ 15,000 psi (1,000 bar) |
