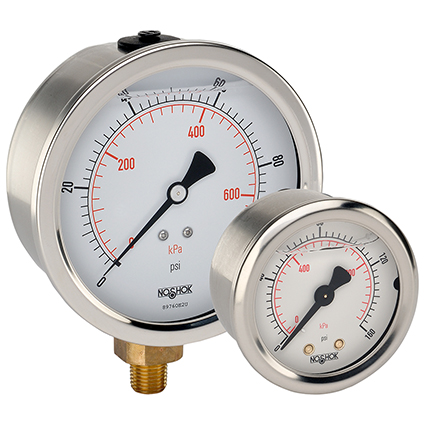

NoShok 901/911 Series 4" ABS/SS Pressure Gauge, Liquid-Filled
The NOSHOK 900 Series ABS and Stainless Steel Liquid Filled Pressure Gauges are high-quality, impact-resistant instruments designed for reliable performance in applications subject to vibration and pulsation. Measuring from vacuum/compound up to 15,000 psi, these gauges feature copper alloy and brass wetted parts and come standard with a glycerin fill. They are ideal for use in hydraulics & pneumatics, power generation, automotive, construction, transportation, and water management. Available in a 4" dial size.
Features
- High quality liquid filled gauge
- Vacuum and compound ranges through 0 psi to 15,000 psi
- Impact-resistant ABS and Stainless Steel case
- Copper alloy and Brass wetted parts
- Ideal for applications including automotive, construction, hydraulics & pneumatics, power generation, transportation and water management
The NOSHOK 900 Series ABS and Stainless Steel Liquid Filled Pressure Gauges are high-quality, impact-resistant instruments designed for reliable performance in applications subject to vibration and pulsation. Measuring from vacuum/compound up to 15,000 psi, these gauges feature copper alloy and brass wetted parts and come standard with a glycerin fill. They are ideal for use in hydraulics & pneumatics, power generation, automotive, construction, transportation, and water management. Available in a 4" dial size.
Features
- High quality liquid filled gauge
- Vacuum and compound ranges through 0 psi to 15,000 psi
- Impact-resistant ABS and Stainless Steel case
- Copper alloy and Brass wetted parts
- Ideal for applications including automotive, construction, hydraulics & pneumatics, power generation, transportation and water management
Specifications
| NoShok9x1PG | |
|---|---|
| Model | [40-901] 4 in, SS, Bottom Connection ¹, [40-911] 4 in, SS, Back Connection ² |
| Pressure Range | ￭ Model 40-901 ￭, [30-vac] -30 inHg Vacuum to 0 ¹, [15-psi] 0 psi to 15 psi ¹, [30-psi] 0 psi to 30 psi ¹, [60-psi] 0 psi to 60 psi ¹, [100-psi] 0 psi to 100 psi ¹, [160-psi] 0 psi to 160 psi ¹, [200-psi] 0 psi to 200 psi ¹, [300-psi] 0 psi to 300 psi ¹, [400-psi] 0 psi to 400 psi ¹, [600-psi] 0 psi to 600 psi ¹, [1000-psi] 0 psi to 1,000 psi ¹, [1500-psi] 0 psi to 1,500 psi ¹, [2000-psi] 0 psi to 2,000 psi ¹, [3000-psi] 0 psi to 3,000 psi ¹, [5000-psi] 0 psi to 5,000 psi ¹, [6000-psi] 0 psi to 6,000 psi ¹, [7500-psi] 0 psi to 7,500 psi ¹, [10000-psi] 0 psi to 10,000 psi ¹, [15000-psi] 0 psi to 15,000 psi ¹, ￭ Model 40-911 ￭, [30-vac] -30 inHg Vacuum to 0 ², [15-psi] 0 psi to 15 psi ², [30-psi] 0 psi to 30 psi ², [60-psi] 0 psi to 60 psi ²v, [100-psi] 0 psi to 100 psi ², [160-psi] 0 psi to 160 psi ², [200-psi] 0 psi to 200 psi ², [300-psi] 0 psi to 300 psi ², [400-psi] 0 psi to 400 psi ², [600-psi] 0 psi to 600 psi ², [1000-psi] 0 psi to 1,000 psi ², [1500-psi] 0 psi to 1,500 psi ², [2000-psi] 0 psi to 2,000 psi ², [3000-psi] 0 psi to 3,000 psi ², [5000-psi] 0 psi to 5,000 psi ², [6000-psi] 0 psi to 6,000 psi ², [10000-psi] 0 psi to 10,000 psi ² |
| Scale Option | single scale, [/kPa] kPa dual scale, [/kg/cm2] kg/cm2 dual scale, [/bar] bar dual scale |
| Connection Size | 1/4 NPT (Std), [1/2] 1/2 NPT, [10-32] 10-32-UNF-2B |
| Max Indicating Pointer | None, [MIP] With |
| Red Set Pointer | None, [SP] With |
| Lens Options | Polycarbonate (Std), [SG] Safety Glass Lens |
| Flange Options | None, [SSFF] SS Front Flange (40-911), [SSRF] SS Rear Flange |
| Mounting Options | None, [SSBU] Integral SS Bezel w/U-Clamp (40-911) |
| Accuracy Options | Standard, [IA] Increased Accuracy from 1.0% to 0.5% |
| Orifice Options | None, [BP3] Brass Press Fit 0.3mm, [BT8] Brass Threaded 0.8mm |
| Rubber Case Protector | None, [RCP] With |
| Dry Out Charge | None, [DRY] With |
| Marking Options | None, [LM] Laser Marking |
| Tagging Options | None, [ST] Steel Tagging |
| Gauge Fill Options | Glycerin (Std), [GY40] -40° Service, [SL] Silicone, [HL] Halocarbon, [MO] Mineral Oil |
| Certified Calibration | None, [CC] With |
| Cleaning for O2 Service | None, [O2] Up to 1,000 psi, [O2] 1,500 psi and up |
| Press. Gauge Features | |
|---|---|
| Gauge: Brand | Noshok |
| Gauge: Type | Dial Indicating Gauge |
| Gauge: Product Unit of Measure | psi, psi / inHg |
| Gauge: 2nd Scale | kPa, kg/cm2, bar |
| Gauge: Process Connection Location | Back Mount, Bottom, In Line |
| Gauge: Case Material | Stainless Steel |
| Gauge: Window | Polycarbonate |
| Gauge: Dial Material | Aluminum |
| Gauge: Pointer Material | Aluminum |
| Gauge: Bezel Material | Stainless Steel |
| Gauge: Wetted Material | Copper Alloy (Brass) |
| Gauge: Fill Type | Liquid Filled / Fillable |
| Gauge: Dial Size | 4 in (100 mm) |
| Gauge: Process Connection Size | 1/4 NPT, 1/2 NPT, 10-32 Female |
| Gauge: Accuracy | ±1%, ±2%, ±3% |
| Gauge: Measuring Principle | Bourdon Tube |
| Gauge: Pressure Type | Gauge Pressure |
| Gauge: Scale Range | < 6 In.H2O (16 mbar), ≥ 6 In.H2O (16 mbar) to < 10 psi (600 mbar), ≥ 10 psi (0.6 bar) to ≤ 15,000 psi (1,000 bar) |
