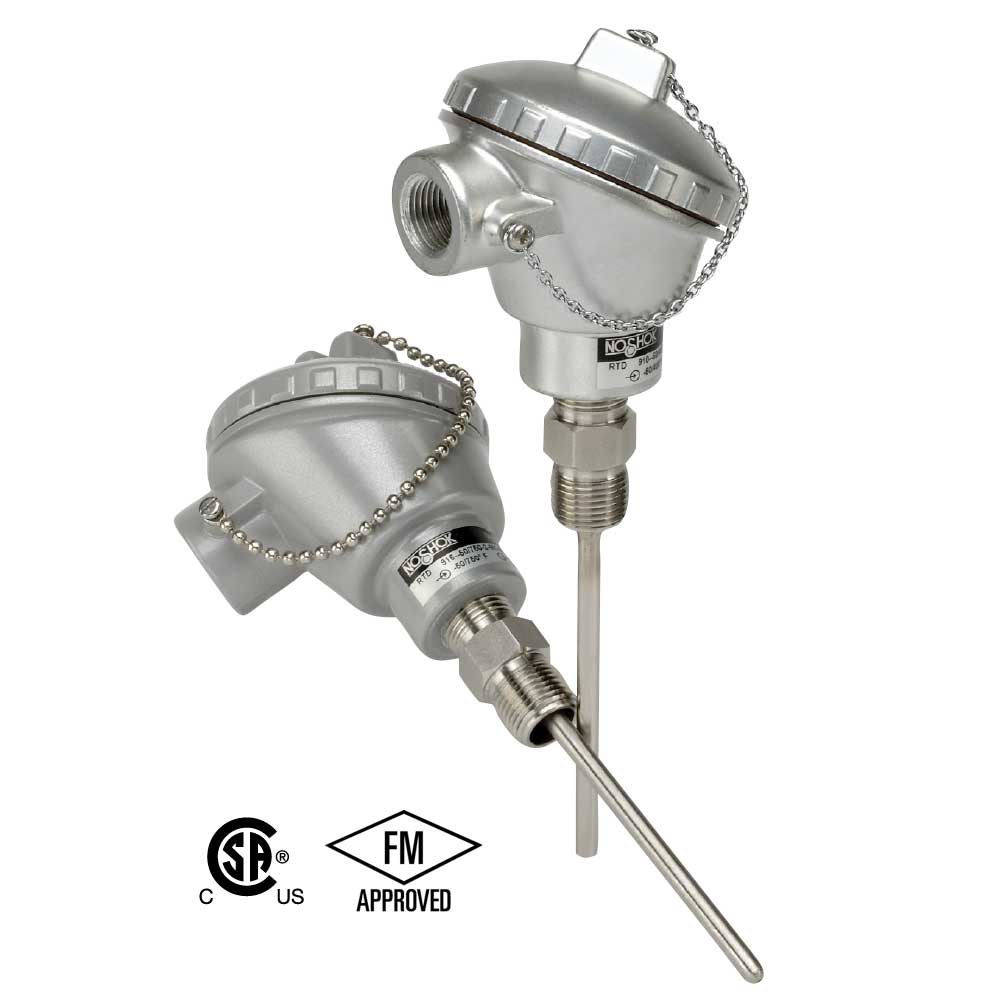

NoShok 910/915 Series Industrial RTD, Probe Type w/Connection Head
The NOSHOK 910/915 Series Industrial RTD is a high-performance temperature sensor designed for industrial applications that require accurate and reliable thermal monitoring. This series offers a versatile head-type assembly with both fixed and spring-loaded probe options, making it suitable for direct process insertion or use within a thermowell.
Key Features:
-
High Accuracy: Available in three accuracy classes, including Class AA with a precision of plus or minus 0.04% (plus or minus 0.1 C) at 0 C.
-
Robust Protection: Connection heads are available in NEMA 4 and NEMA 4X ratings, with explosion-proof aluminum and stainless steel models approved for Class I, Division 1 environments.
-
Flexible Configuration: Supports 2, 3, and 4-wire circuit types, and offers PT100 and PT1000 element options to suit various control systems.
-
Integrated Transmitter: Can be equipped with an optional 4 mA to 20 mA or voltage output transmitter that fits directly into the connection head.
-
Durable Sheath: Built with a 316 stainless steel sheath and a maximum finish of 32 micro-inches to resist corrosion and maintain high sanitary standards.
The NOSHOK 910/915 Series Industrial RTD is a high-performance temperature sensor designed for industrial applications that require accurate and reliable thermal monitoring. This series offers a versatile head-type assembly with both fixed and spring-loaded probe options, making it suitable for direct process insertion or use within a thermowell.
Key Features:
-
High Accuracy: Available in three accuracy classes, including Class AA with a precision of plus or minus 0.04% (plus or minus 0.1 C) at 0 C.
-
Robust Protection: Connection heads are available in NEMA 4 and NEMA 4X ratings, with explosion-proof aluminum and stainless steel models approved for Class I, Division 1 environments.
-
Flexible Configuration: Supports 2, 3, and 4-wire circuit types, and offers PT100 and PT1000 element options to suit various control systems.
-
Integrated Transmitter: Can be equipped with an optional 4 mA to 20 mA or voltage output transmitter that fits directly into the connection head.
-
Durable Sheath: Built with a 316 stainless steel sheath and a maximum finish of 32 micro-inches to resist corrosion and maintain high sanitary standards.
Specifications
| NoShok-915-RTD | |
|---|---|
| Model | [910] Fixed RTD, [915] Spring Loaded |
| Temperature Range | [-50/400] -50 to 400 °F, [-50/750] -50 to 750 °F, [-330/1100] -330 to 1100 °F |
| Accuracy | [1] ±0.12% at 0 °C, Class B, [2] ±0.06% at 0 °C, Class A, [3] ±0.04% at 0 °C, Class AA |
| Element Type | [C] PT100 Ω at 0 °C, [M] PT1000 Ω at 0 °C |
| Circuit Type | [2] Single, 3-Wire, [1] Single, 2-Wire, [3] Single, 4-Wire, [4] Dual, 2-Wire, [5] Dual, 3-Wire, [6] Dual, 4-Wire |
| Add Transmitter? | No, Yes |
| Transmitter Output | --, None, [1U] 4 mA to 20 mA, 2-Wire, Upscale Burnout, [1D] 4 mA to 20 mA, 2-Wire, Downscale Burnout, [2] 0 Vdc to 5 Vdc, 3-Wire, [3] 1 Vdc to 5 Vdc, 3-Wire, [5] 0 Vdc to 10 Vdc, 3-Wire |
| Transmitter Process Connection | --, [0] None, [2] 1/4" NPT Male, [8] 1/2” NPT Male, [48] 1/2” NPT Male w/Sliding Compression Fitting |
| Transmitter Electrical Connection | --, [23] Connection Head w/ 1/2" NPT Conduit, [45] Connection Head w/ 3/4" NPT Conduit |
| Transmitter Enclosure Material | --, [A1] Aluminum Cast, [A2] Aluminum Cast, Explosion Proof, [P1] PP, White, [S1] SS Cast, [S2] SS Cast, Explosion Proof |
| Transmitter Stem Length | --, [025] 2-1/2", [040] 4", [060] 6", [090] 9", [120] 12", [150] 15", [180] 18", [240] 24" |
| Transmitter Stem Diameter | --, [2] 1/4", [3] 3/8", [4] 1/2", [6] 6 mm |
| RTD Features | |
|---|---|
| RTD: Style | Fixed, Spring-Loaded |
| RTD: Accuracy | ±0.12%, ±0.04%, ±0.06% |
| RTD: Connection Size | 1/8 NPT, 1/4 NPT, 1/2 NPT, 1/2 NPT w/Compression Fitting |
| RTD: Electrical Connection | Connection Head w/ 1/2" NPT Conduit, Connection Head w/ 3/4" NPT Conduit |
| RTD: Electrical Connection Material | Aluminum, SS, PP |
| RTD: Length (Probe/Sheath/TW) | 2.5 in, 4 in, 6 in, 9 in, 12 in, 15 in, 18 in, 24 in |
| RTD: Stem Diameter | 1/8 in, 1/4 in, 3/8 in, 1/2 in, 6 mm |
| RTD: Finish | 32 µin max |
| RTD: Enclosure Rating | NEMA 4, NEMA 4X |
