NoShok PTI10 Series Intelligent Pressure Transmitter - IO-Link | Branom Instrument Company

Features

Digital IO-Link can be used for pressure monitoring or as an electronic PNP switch for process control
Integrated diagnostic functions with multicolor LED status display for easy maintenance
Simplified machine integration with product specific drivers
Fully welded electrical connection available for harsh and high vibration environments

WARNING: This product can expose you to chemicals including Lead and Nickel, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Specifications

NoShokPTI10
Pressure Range	[1barv] -1 barg to 0 barg (-14.5 psig to 0 psig), [.6barc] -1 barg to 0.6 barg (-14.5 psig to 8.7 psig), [1.5barc] -1 barg to 1.5 barg (-14.5 psig to 21.8 psig), [3barc] -1 barg to 3 barg (-14.5 psig to 43.5 psig), [5barc] -1 barg to 5 barg (-14.5 psig to 72.5 psig), [9barc] -1 barg to 9 barg (-14.5 psig to 130.5 psig), [15barc] -1 barg to 15 barg (-14.5 psig to 217.5 psig), [24barc] -1 barg to 24 barg (-14.5 psig to 348 psig), [.4barg] 0 barg to 0.4 barg (0 psig to 5.8 psig), [.6barg] 0 barg to 0.6 barg (0 psig to 8.7 psig), [1barg] 0 barg to 1 barg (0 psig to 14.5 psig), [1.6barg] 0 barg to 1.6 barg (0 psig to 23.2 psig), [2.5barg] 0 barg to 2.5 barg (0 psig to 36.3 psig), [4barg] 0 barg to 4 barg (0 psig to 58 psig), [6barg] 0 barg to 6 barg (0 psig to 87 psig), [10barg] 0 barg to 10 barg (0 psig to 145 psig), [16barg] 0 barg to 16 barg (0 psig to 232 psig), [25barg] 0 barg to 25 barg (0 psig to 362.5 psig), [40barg] 0 barg to 40 barg (0 psig to 580 psig), [60barg] 0 barg to 60 barg (0 psig to 870 psig), [100barg] 0 barg to 100 barg (0 psig to 1450 psig), [160barg] 0 barg to 160 barg (0 psig to 2320 psig), [250barg] 0 barg to 250 barg (0 psig to 3625 psig), [400barg] 0 barg to 400 barg (0 psig to 5800 psig), [600barg] 0 barg to 600 barg (0 psig to 8700 psig), [1000barg] 0 barg to 1000 barg (0 psig to 14500 psig)), [.4bara] 0 bara to 0.4 bara (0 psia to 5.8 psia), [.6bara] 0 bara to 0.6 bara (0 psia to 8.7 psia), [1bara] 0 bara to 1 bara (0 psia to 14.5 psia), [1.6bara] 0 bara to 1.6 bara (0 psia to 23.2 psia), [2.5bara] 0 bara to 2.5 bara (0 psia to 36.3 psia), [4bara] 0 bara to 4 bara (0 psia to 58 psia), [6bara] 0 bara to 6 bara (0 psia to 87 psia), [10bara] 0 bara to 10 bara (0 psia to 145 psia), [16bara] 0 bara to 16 bara (0 psia to 232 psia), [25bara] 0 bara to 25 bara (0 psia to 362.5 psia)
Accuracy	[1] ±1.0% Full Scale, [2] ±0.5% Full Scale
Output Signal	[56] IO-Link v 1.1 (1 configurable outputs, PNP), [54] IO-Link v 1.1 (2 configurable outputs, PNP)

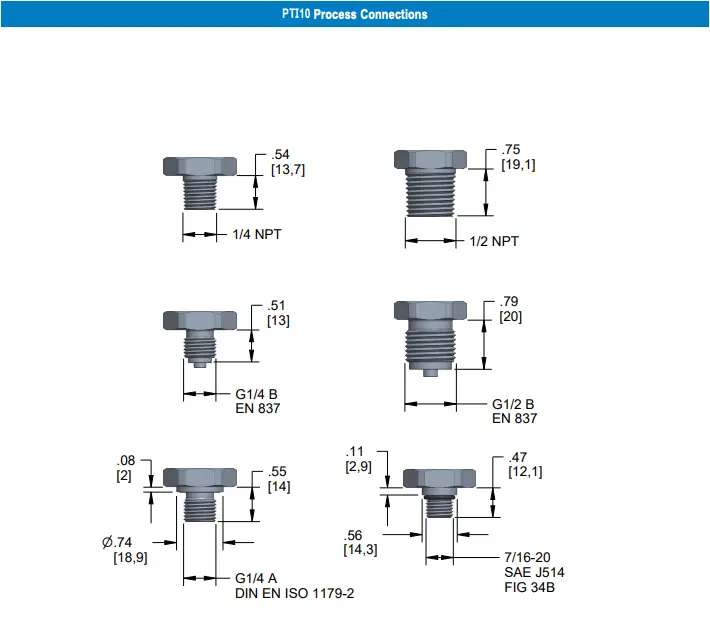

Process Connection	[2] 1/4" NPT Male, [8] 1/2" NPT Male, [10] G 1/4 B male EN837 , [45] 7/16-20 SAE J514 FIG 34B Non-Adjustable , [83] G 1/2 B EN837, [46] G 1/4 A male ISO 1179-2
Electrical Connection	[25] M12 x 1 (4-pin), [25M] M12 x 1 (4-pin), Heavy Duty
Orifice Option	Without, [ST8] SS Threaded Orifice (0.8 mm)
Setpoint Option	Without, [SP] Factory Adjusted Setpoint

Transmitter Features
Transmitters: Housing Material	316 SS
Transmitters: Electrical Connection Material	PBT GF30, SS
Transmitters: Process Connection Material	316 SS
Transmitters: Measuring Element Material	316 SS
Transmitters: IP Rating	IP65, IP67
Transmitters: Service Life	> 10 million load cycles
Transmitters: Response Time	≤ 5 ms
Transmitters: Proof pressure < 7,500 psi	2x FS
Transmitters: Proof pressure 7500 – 10,000 psi	1.5x FS, 2x FS
