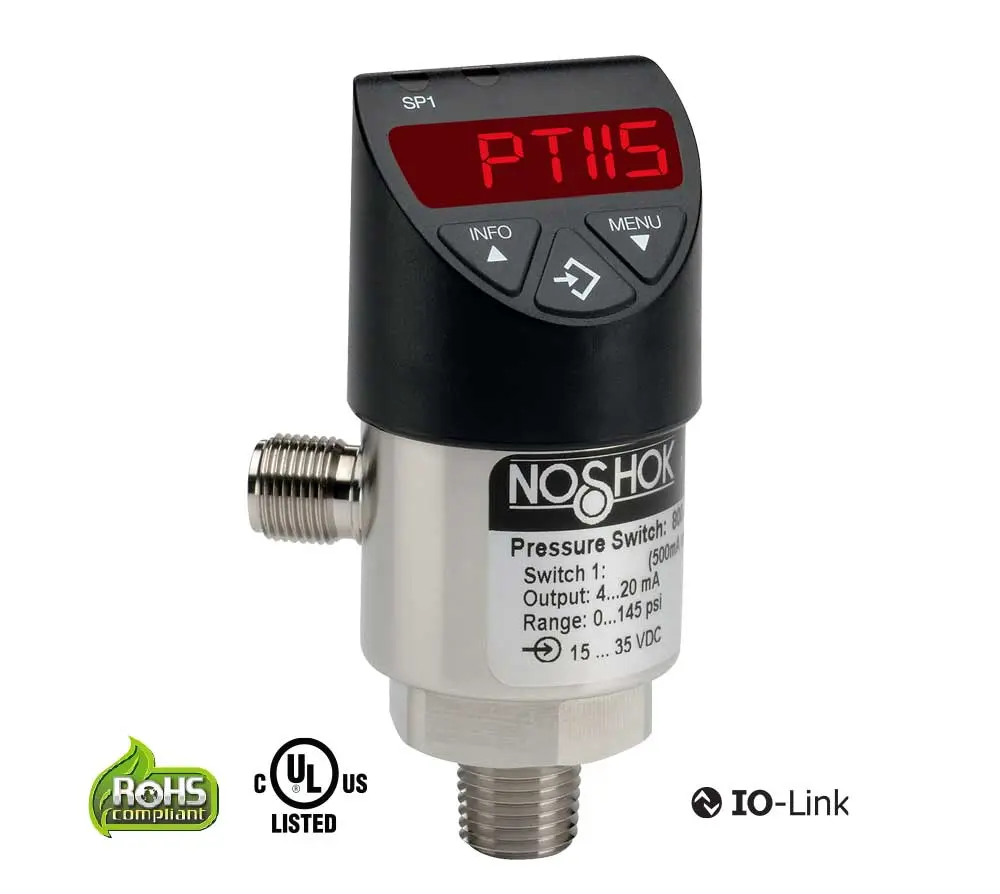

NoShok PTI15 Series Intelligent Indicating Pressure Transmitter/Switch - IO-Link
Features
- Compound and standard ranges from 0 psig to 10 psig through 0 psig to 7,500 psig
- 316L Stainless Steel wetted parts
- Current and voltage outputs available
- 7 different output configurations available
- Advanced functionality with optional IO-Link
- Display and electrical connection can be rotated independently
- RoHS compliant
WARNING: This product can expose you to chemicals including Lead and Nickel, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Features
- Compound and standard ranges from 0 psig to 10 psig through 0 psig to 7,500 psig
- 316L Stainless Steel wetted parts
- Current and voltage outputs available
- 7 different output configurations available
- Advanced functionality with optional IO-Link
- Display and electrical connection can be rotated independently
- RoHS compliant
WARNING: This product can expose you to chemicals including Lead and Nickel, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

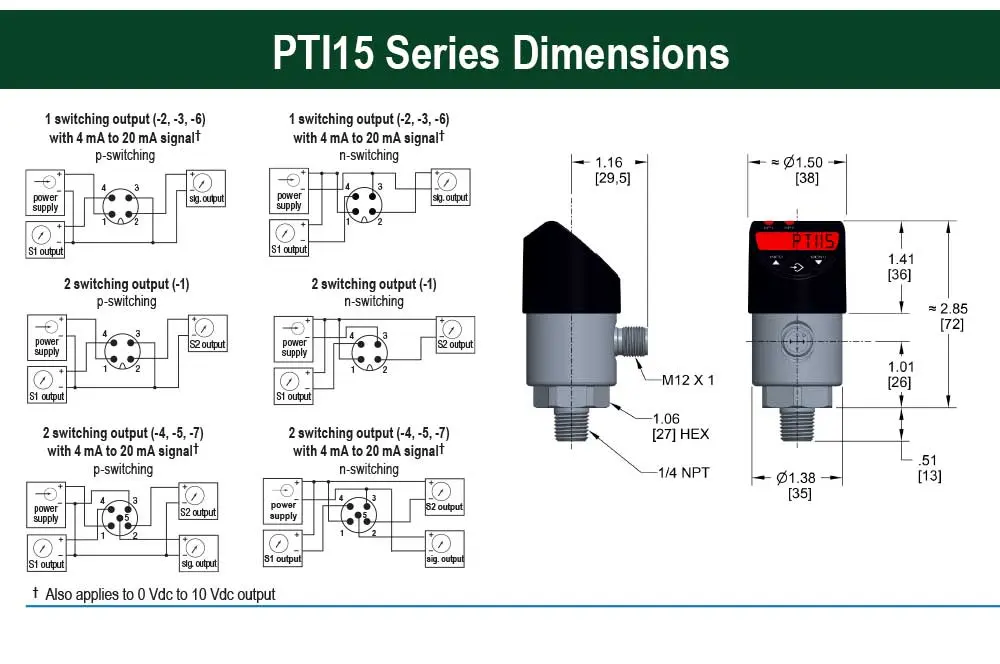

Specifications
| NoShokPTI15 | |
|---|---|
| Pressure Range | [15psiv] -14.5 psig to 0 psig, [15psic] -14.5 psig to 15 psig, [30psic] -14.5 psig to 30 psig, [50psic] -14.5 psia to 50 psia, [100psic] -14.5 psig to 100 psig, [160psic] -14.5 psig to 160 psig , [200psic] -14.5 psig to 200 psig , [300psic] -14.5 psig to 300 psig, [10psig] 0 psig to 10 psig, [15psig] 0 psig to 15 psig, [25psig] 0 psig to 25 psig, [30psig] 0 psig to 30 psig, [50psig] 0 psig to 50 psig, [100psig] 0 psig to 100 psig, [160psig] 0 psig to 160 psig, [200psig] 0 psig to 200 psig, [300psig] 0 psig to 300 psig, [500psig] 0 psig to 500 psig, [1000psig] 0 psig to 1,000 psig, [1500psig] 0 psig to 1,500 psig , [2000psig] 0 psig to 2,000 psig, [3000psig] 0 psig to 3,000 psig, [5000psig] 0 psig to 5,000 psig , [7500psig] 0 psig to 7,500 psig, [10psia] 0 psia to 10 psia, [15psia] 0 psia to 15 psia, [25psia] 0 psia to 25 psia, [30psia] 0 psia to 30 psia , [50psia] 0 psia to 50 psia , [100psia] 0 psia to 100 psia, [160psia] 0 psia to 160 psia, [200psia] 0 psia to 200 psia, [300psia] 0 psia to 300 psia |
| Switch Function | [1] 2 N.O. or N.C. (PNP or NPN), [2] 1 N.O. or N.C. (PNP or NPN) with 4 mA to 20 mA, [3] 1 N.O. or N.C. (PNP or NPN) with 0 Vdc to 10 Vdc, [4] 2 N.O. or N.C. (PNP or NPN) with 4 mA to 20 mA, [5] 2 N.O. or N.C. switch (PNP/NPN) with 0 Vdc to 10 Vdc, [6] 1 N.O. or N.C. switch (PNP/NPN) with 4 mA to 20 mA/0 Vdc to 10 Vdc, [7] 2 N.O. or N.C. switch (PNP/NPN) with 4 mA to 20 mA/0 Vdc to 10 Vdc |
| Process Connection | [2] 1/4" NPT Male, [8] 1/2" NPT Male, [10] G 1/4 B male EN837 , [45] 7/16-20 SAE J514 FIG 34B Non-Adjustable , [83] G 1/2 B EN837 |
| Electrical Connection | [25] M12 x 1 (4-pin), [48] M12 x 1 (5-pin) |
| IO-Link Option | Without, [IOL] With |
| Orifice Option | None, [ST8] SS Threaded Orifice (0.88 mm) |
| Setpoint Option | None, [SP] Factory Adjusted Setpoint |
| Accuracy | [1] ≤±0.5% |
| Transmitter Features | |
|---|---|
| Transmitters: Housing Material | 304 SS |
| Transmitters: Proof pressure ≥ 10,000 psi | 2x FS |
| Transmitters: Process Connection Material | 316 SS |
| Transmitters: Electrical Connection Material | SS |
| Transmitters: Measuring Element Material | 316 SS |
| Transmitters: IP Rating | IP65, IP67 |
| Transmitters: Service Life | > 10 million load cycles |
| Transmitters: Response Time | ≤ 5 ms |
| Transmitters: Proof pressure < 7,500 psi | 2x FS |
| Transmitters: Proof pressure 7500 – 10,000 psi | 2x FS |
