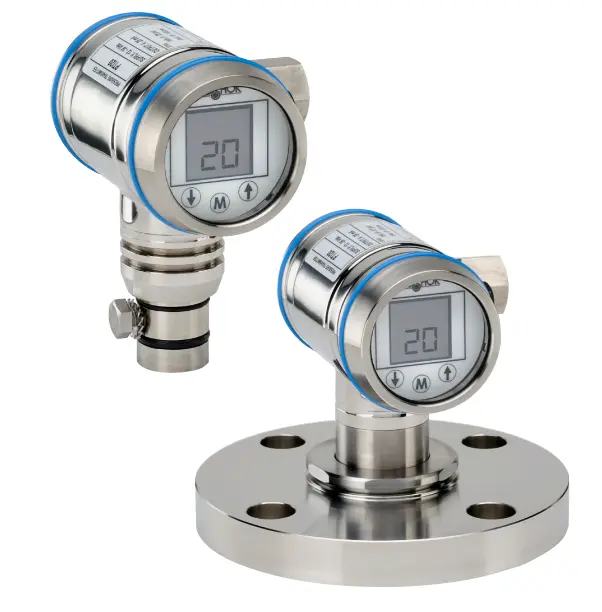

NoShok PTI30 Series High Accuracy Intelligent Industrial Transmitter
Features
- Adjustable pressure ranges vacuum to 1,450 psig
- All ranges are user adjustable from vacuum to full scale with standard on board display
- 4 mA to 20 mA HART® optional pressure transmitter
- Accuracy ±0.1% of adjusted span
- 10:1 turn down
- All Stainless Steel construction with 316 Stainless Steel wetted parts
- CE compliant to suppress RFI, EMI and ESD
WARNING: This product can expose you to chemicals including and Nickel, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Features
- Adjustable pressure ranges vacuum to 1,450 psig
- All ranges are user adjustable from vacuum to full scale with standard on board display
- 4 mA to 20 mA HART® optional pressure transmitter
- Accuracy ±0.1% of adjusted span
- 10:1 turn down
- All Stainless Steel construction with 316 Stainless Steel wetted parts
- CE compliant to suppress RFI, EMI and ESD
WARNING: This product can expose you to chemicals including and Nickel, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Specifications
| NoShokPTI30TM | |
|---|---|
| Pressure Range | [5psig] Min. span 1.45 psi, max. span 5.8 psi (Lowest vacuum pressure -5.8 psig), [17psig] Min. span 4 psi, max. span 17.4 psi (Lowest vacuum pressure -15 psig), [145psig] Min. span 14.5 psi, max. span 145 psi (Lowest vacuum pressure -15 psig), [435psig] Min. span 72.5 psi, max. span 435 psi (Lowest vacuum pressure -15 psig), [1450psig] Min. span 290 psi, max. span 1,450 psi (Lowest vacuum pressure -15 psig) |
| Output Signal | [1] 4 mA to 20 mA, 2-wire, [43] 4 mA to 20 mA, 2-wire and Hart® signal |
| Process Connection | [8] 1/2" NPT Male, [69] 1/2" NPT Female, [73] 1" NPT Male Flush, [74] 1-1/2" NPT Male Flush, [75] Threaded Flush Diaphragm For Flange (Flange Not Included), [76] Flange 1-1/2" ANSI 150# RF Flange, [77] Flange 2" ANSI 150# RF Flange, [78] Flange 3" ANSI 150# RF Flange, [79] PMC 1" Flush, [80] PMC 1-1/2" Flush |
| Electrical Connection | [71] PG9 Cable Gland, [25] M12 x 1 (4-pin), [28] 1/2” NPT Female |
| Cover Option | None, [TC] Transparent Cover for Display |
| Mounting Option | None, [RMT-10] Remote Mount Display (10' cable) |
| Certified Calibration | Without, [CC] With |
| Accuracy | [1] ±0.1% of Adjusted span |
| Transmitter Features | |
|---|---|
| Transmitters: Housing Material | 304 SS, 316 SS |
| Transmitters: Measuring Element Material | Hastelloy C, Tantalum, Gold Plated, 316 SS |
| Transmitters: Process Connection Material | 316 SS |
| Transmitters: Electrical Connection Material | SS |
| Transmitters: IP Rating | IP66, IP68 |
| Transmitters: Service Life | > 10 years |
| Transmitters: Response Time | < 250 ms |
