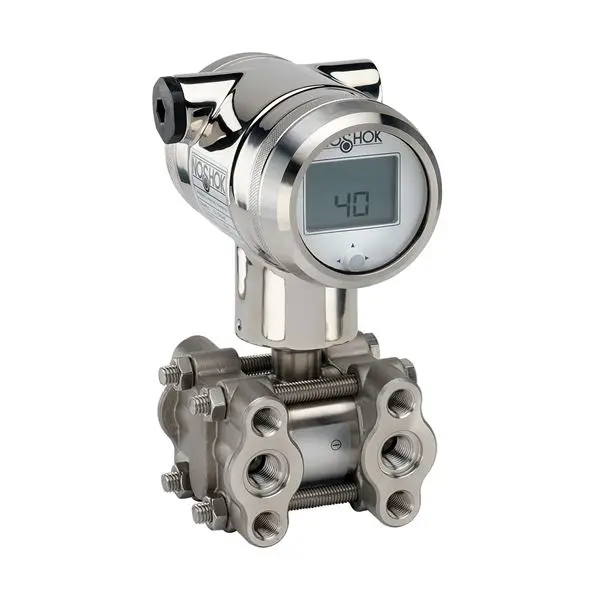

NoShok PTI40 Series Premier Accuracy Intelligent Industrial Transmitter
Features
- Adjustable pressure ranges 1 psig to 300 psig
- All ranges are user adjustable from vacuum to full scale with standard on board display
- 4 mA to 20 mA HART® optional pressure transmitter
- Accuracy ±0.075% of adjusted span
- 100:1 turn down
- All Stainless Steel construction with 316 Stainless Steel wetted parts
- CE compliant to suppress RFI, EMI and ESD
WARNING: This product can expose you to chemicals including and Nickel, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Features
- Adjustable pressure ranges 1 psig to 300 psig
- All ranges are user adjustable from vacuum to full scale with standard on board display
- 4 mA to 20 mA HART® optional pressure transmitter
- Accuracy ±0.075% of adjusted span
- 100:1 turn down
- All Stainless Steel construction with 316 Stainless Steel wetted parts
- CE compliant to suppress RFI, EMI and ESD
WARNING: This product can expose you to chemicals including and Nickel, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Specifications
| Transmitter Features | |
|---|---|
| Transmitters: Housing Material | 304 SS, 316 SS |
| Transmitters: Measuring Element Material | Hastelloy C, Gold Plated, 316 SS |
| Transmitters: Process Connection Material | 316 SS |
| Transmitters: Electrical Connection Material | SS |
| Transmitters: IP Rating | IP66, IP68 |
| Transmitters: Service Life | > 10 years |
| Transmitters: Response Time | < 200 ms |
| NoShokPTI40TM | |
|---|---|
| Pressure Range | [1psid] Min. span 0.15 psi, max. span 1 psi, [6psid] Min. span 0.15 psi, max. span 6 psil, [30psid] Min. span 0.3 psi, max. span 30 psi, [300psid] Min. span 3 psi, max. span 300 psi |
| Accuracy | [1] ±0.075% of Adjusted span |
| Output Signal | [43] 4 mA to 20 mA, 2-wire and Hart® signal |
| Process Connection | [81] (2) 1/4" NPT female, IEC 61518 flange with bleed valves |
| Electrical Connection | [28] 1/2” NPT Female |
| Cover Option | [TC] Transparent Cover (for display) |
