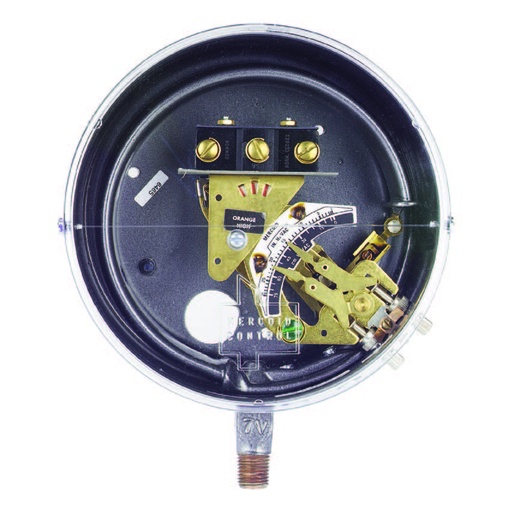

[DAW-7043-153-24E] DAW Series Bourdon Tube Pressure Switch, SPDT Snap Switch, Adjustable Deadband, 316 SS Wetted Parts, 10-150 PSI, Weatherproof Housing

Dwyer Instruments Inc

DAW Series Bourdon Tube Pressure Switch, SPDT Snap Switch, Adjustable Deadband, 316 SS Wetted Parts, 10-150 PSI, Weatherproof Housing
DAW-7043-153-24E

$ 2,020.04

MADE TO ORDER

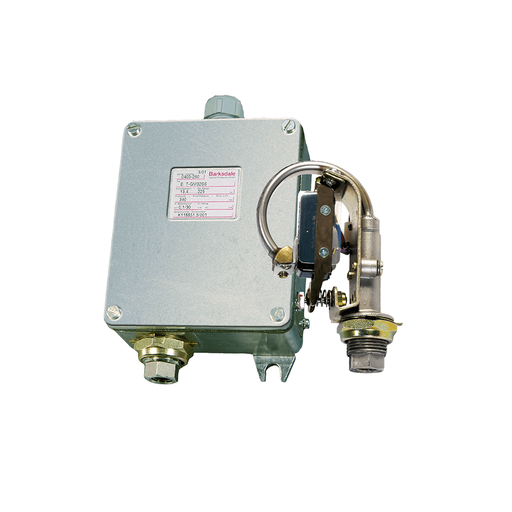

[B2T-M32SS] Barksdale B2T SS Bourdon Tube Pressure Switch, Housed Dual Setpoint, 10 Amps @ 125/250 VAC; 3 A @ 480 VAC; 0.5 A @ 24 VDC, 160 to 3200 PSI, SS, 1/4 NPT

Barksdale Inc Dba Dynalco Controls Corp

Barksdale B2T SS Bourdon Tube Pressure Switch, Housed Dual Setpoint, 10 Amps @ 125/250 VAC; 3 A @ 480 VAC; 0.5 A @ 24 VDC, 160 to 3200 PSI, SS, 1/4 NPT
B2T-M32SS

$ 1,123.39

MADE TO ORDER

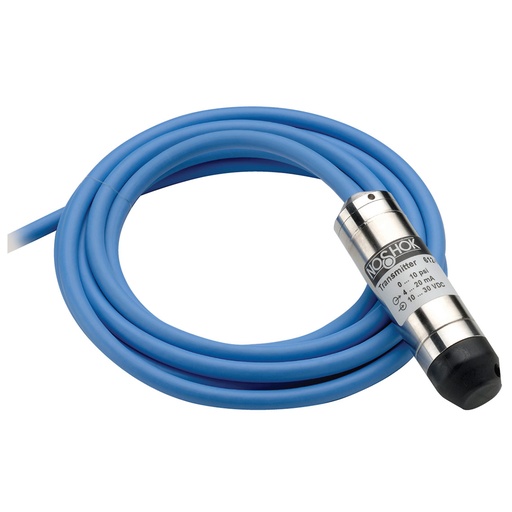

[612-15-1-1-N-50-DC-CBC-JB] 612 Series Submersible Level Transmitter, 0 psig to 15 psig, 50' Std PUR Cable, Cable Clamp, Desiccant Cartridge, Junction Box

Noshok Inc

612 Series Submersible Level Transmitter, 0 psig to 15 psig, 50' Std PUR Cable, Cable Clamp, Desiccant Cartridge, Junction Box
612-15-1-1-N-50-DC-CBC-JB

$ 1,548.65

MADE TO ORDER

[9090983] Wika 910.11DIN-Shut-off valve Instrument Grade Specifications according to data sheet: AM 09.02 Design: with test connection, per DIN 16271 or similiar (with vent screw) Material body: Carbon steel Material packing: PTFE Temperature range of medium: -10...+120°C Nominal pressure: PN max. 400 bar Style: Form A, with LH-RH union Connection process side + instument side: G 1/2 B male + G 1/2 LH-RH union Test connection: M20 x 1,5

Wika Instrument Lp

Wika 910.11DIN-Shut-off valve Instrument Grade Specifications according to data sheet: AM 09.02 Design: with test connection, per DIN 16271 or similiar (with vent screw) Material body: Carbon steel Material packing: PTFE Temperature range of medium: -10...+120°C Nominal pressure: PN max. 400 bar Style: Form A, with LH-RH union Connection process side + instument side: G 1/2 B male + G 1/2 LH-RH union Test connection: M20 x 1,5
9090983

$ 60.87

MADE TO ORDER

[9318275] Wika 213.40 Series Glycerin Filled Industrial Pressure Gauge, 2.5" Dial, 0 to 3000PSI, 1/4 NPT Brass Center Back Mount

Wika Instrument Lp

Wika 213.40 Series Glycerin Filled Industrial Pressure Gauge, 2.5" Dial, 0 to 3000PSI, 1/4 NPT Brass Center Back Mount
9318275

$ 123.34

MADE TO ORDER

[131G9667] VLT Aqua Drive FC-202, 40 HP / 30 KW, 380-480 VAC, 3 Phase, IP20 FC-202P30KT4E20H2XGXXXXSXXXXAXBPCXXXXDX

Danfoss LLC

VLT Aqua Drive FC-202, 40 HP / 30 KW, 380-480 VAC, 3 Phase, IP20 FC-202P30KT4E20H2XGXXXXSXXXXAXBPCXXXXDX
131G9667

$ 5,728.02

MADE TO ORDER
