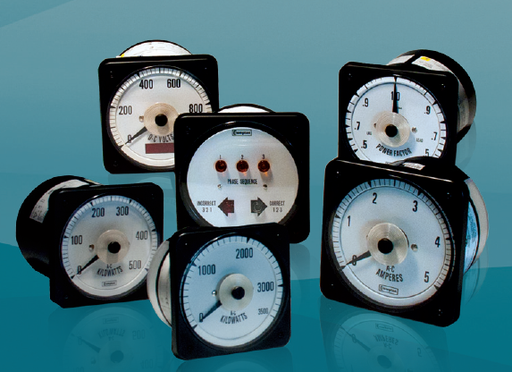

[007-DIAA-ECSN-A5] CROMPTON Model 007 - 4.5 INCH SWITCHBOARD DIGITAL/ANALOG DC AMMETER SPEC. ANSI C39.1 ES. 0/50 MILLIVOLTS DC. SCALED. 0/800 AMPS DC. AUXILIARY. 100-250V AC/DC

TE Connectivity Corporation

CROMPTON Model 007 - 4.5 INCH SWITCHBOARD DIGITAL/ANALOG DC AMMETER SPEC. ANSI C39.1 ES. 0/50 MILLIVOLTS DC. SCALED. 0/800 AMPS DC. AUXILIARY. 100-250V AC/DC
007-DIAA-ECSN-A5

$ 725.00

MADE TO ORDER

[007-DIAA-ECSJ-A5] CROMPTON Model 007 - 4.5 INCH SWITCHBOARD DIGITAL/ANALOG DC AMMETER SPEC. ANSI C39.1 ES. 0/50 MILLIVOLTS DC. SCALED. 0/600 AMPS DC. AUXILIARY. 100-250V AC/DC

TE Connectivity Corporation

CROMPTON Model 007 - 4.5 INCH SWITCHBOARD DIGITAL/ANALOG DC AMMETER SPEC. ANSI C39.1 ES. 0/50 MILLIVOLTS DC. SCALED. 0/600 AMPS DC. AUXILIARY. 100-250V AC/DC
007-DIAA-ECSJ-A5

$ 725.00

MADE TO ORDER

[E1H-H-VAC-P6] Barksdale E1H Dia-Seal Piston Pressure Switch, Housed, 10 Amps @ 125/250 VAC; 3 Amps @ 480 VAC, 0.5 to 30 inHg, 1/8" NPT Int with 1/2" NPT Ext Threads

Barksdale Inc Dba Dynalco Controls Corp

Barksdale E1H Dia-Seal Piston Pressure Switch, Housed, 10 Amps @ 125/250 VAC; 3 Amps @ 480 VAC, 0.5 to 30 inHg, 1/8" NPT Int with 1/2" NPT Ext Threads
E1H-H-VAC-P6

$ 313.29

MADE TO ORDER

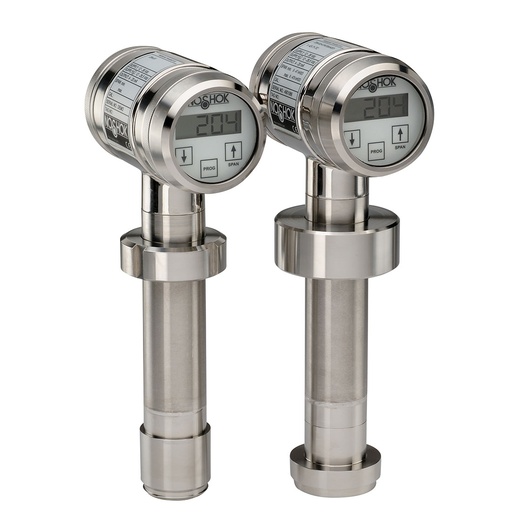

[204-98-47/470inH2O-1-1-25] 20 Series Intelligent Silo & Tank Level Sanitary Pressure Transmitter, Rosemount Tank Spud - 6", 47 inH2O to 470 inH2O, M12 x 1 (4-Pin) Electrical Connection

Noshok Inc

20 Series Intelligent Silo & Tank Level Sanitary Pressure Transmitter, Rosemount Tank Spud - 6", 47 inH2O to 470 inH2O, M12 x 1 (4-Pin) Electrical Connection
204-98-47/470inH2O-1-1-25

$ 3,018.97

MADE TO ORDER

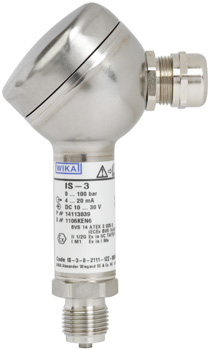

[76204471] Wika IS-3 Pressure Transmitter, 0-5000 PSI, Zero and Span Adjustability, 1/2" NPT, Field Case IP69K

Wika Instrument Lp

Wika IS-3 Pressure Transmitter, 0-5000 PSI, Zero and Span Adjustability, 1/2" NPT, Field Case IP69K
76204471

$ 843.60

MADE TO ORDER

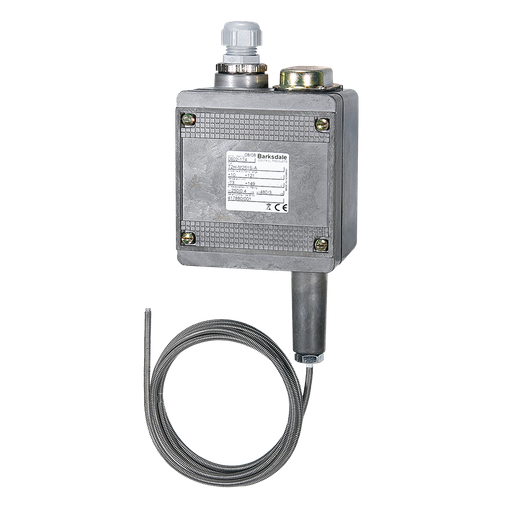

[T2H-H351S-A] Barksdale Remote Mount Temperature Switch, Dual switch (2 SPDT), NEMA 4 Enclosure, 150/350F range, 6FT Capillary, 304 SS Wetted Material, 302 SS Armor

Barksdale Inc Dba Dynalco Controls Corp

Barksdale Remote Mount Temperature Switch, Dual switch (2 SPDT), NEMA 4 Enclosure, 150/350F range, 6FT Capillary, 304 SS Wetted Material, 302 SS Armor
T2H-H351S-A

$ 1,816.31

MADE TO ORDER
