[HE599CNX100] SmartRail, CsCAN Base. Recommended for larger systems as Expansion I/O. Standard CsCAN bandwidth (1x), supporting up to 500m network distance.

Horner APG LLC

SmartRail, CsCAN Base. Recommended for larger systems as Expansion I/O. Standard CsCAN bandwidth (1x), supporting up to 500m network distance.
HE599CNX100

$ 477.83

MADE TO ORDER

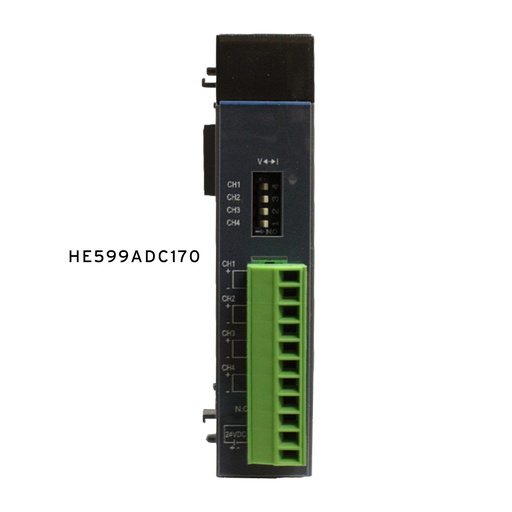

[HE599ADC170] SmartRail, 4 channel Analog Inputs, 12-bit. Selectable channel-by-channel for 0-20mA, 4-20mA, 0-10V. For spring-clamp terminals, add HE599TRM011

Horner APG LLC

SmartRail, 4 channel Analog Inputs, 12-bit. Selectable channel-by-channel for 0-20mA, 4-20mA, 0-10V. For spring-clamp terminals, add HE599TRM011
HE599ADC170

$ 548.23

MADE TO ORDER

[HE359THM200] SmartMod, 8 channel Thermocouple Inputs (Types J,K,R,S,B,E,T,N) or millivolt inputs (+/-1000mV, max). 0.1 degrees Celsius resolution, 2000vac isolation (ch-RS485 & ch-power)

Horner APG LLC

SmartMod, 8 channel Thermocouple Inputs (Types J,K,R,S,B,E,T,N) or millivolt inputs (+/-1000mV, max). 0.1 degrees Celsius resolution, 2000vac isolation (ch-RS485 & ch-power)
HE359THM200

$ 701.73

MADE TO ORDER

[HE359THM100] SmartMod, 4 channel Thermocouple Inputs (Types J,K,R,S,B,E,T,N) or millivolt inputs (+/-1000mV, max). 0.1 degrees Celsius resolution, 2000vac isolation (ch-RS485 & ch-power)

Horner APG LLC

SmartMod, 4 channel Thermocouple Inputs (Types J,K,R,S,B,E,T,N) or millivolt inputs (+/-1000mV, max). 0.1 degrees Celsius resolution, 2000vac isolation (ch-RS485 & ch-power)
HE359THM100

$ 462.83

MADE TO ORDER

[HE359RTD100] SmartMod, 4 channel RTD Inputs (Pt-100, Ni-100, Pt-1000, Ni-1000) or Resistance Inputs (0-2000ohm). 0.1 degree Celsius resolution, 2000vac isolation (ch-RS485 & ch-power)

Horner APG LLC

SmartMod, 4 channel RTD Inputs (Pt-100, Ni-100, Pt-1000, Ni-1000) or Resistance Inputs (0-2000ohm). 0.1 degree Celsius resolution, 2000vac isolation (ch-RS485 & ch-power)
HE359RTD100

$ 462.83

MADE TO ORDER

[HE359DAC107] SmartMod, 4 channel Analog Outputs, selectable between Voltage (0-10VDC) and Current (0-20mA). 1mV or 1uA resolution. 2000vac isolation (ch-RS485 & ch-power)

Horner APG LLC

SmartMod, 4 channel Analog Outputs, selectable between Voltage (0-10VDC) and Current (0-20mA). 1mV or 1uA resolution. 2000vac isolation (ch-RS485 & ch-power)
HE359DAC107

$ 701.73

MADE TO ORDER

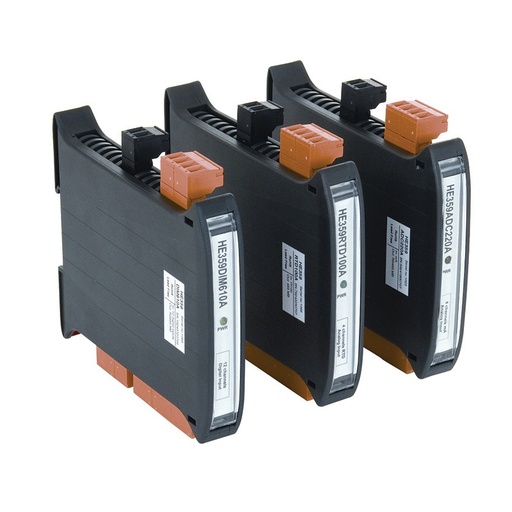

[HE359DAC007] SmartMod, 2 channel Analog Outputs, selectable between Voltage (0-10VDC) and Current (0-20mA). 1mV or 1uA resolution. 2000vac isolation (ch-RS485 & ch-power)

Horner APG LLC

SmartMod, 2 channel Analog Outputs, selectable between Voltage (0-10VDC) and Current (0-20mA). 1mV or 1uA resolution. 2000vac isolation (ch-RS485 & ch-power)
HE359DAC007

$ 537.85

MADE TO ORDER

[HE579THM200] SmartBlock, Isolated Thermocouple Input Module, 8 channel. Supports J, K, T, E, R, S, C, mV. 0.1°C or F resolution. 0.1% accuracy, typical (varies by type and temperature range)

Horner APG LLC

SmartBlock, Isolated Thermocouple Input Module, 8 channel. Supports J, K, T, E, R, S, C, mV. 0.1°C or F resolution. 0.1% accuracy, typical (varies by type and temperature range)
HE579THM200

$ 1,303.06

MADE TO ORDER

[HE579THM100] SmartBlock, Isolated Thermocouple Input Module, 4 channel. Supports J, K, T, E, R, S, C, mV. 0.1°C or F resolution. 0.1% accuracy, typical (varies by type and temperature range)

Horner APG LLC

SmartBlock, Isolated Thermocouple Input Module, 4 channel. Supports J, K, T, E, R, S, C, mV. 0.1°C or F resolution. 0.1% accuracy, typical (varies by type and temperature range)
HE579THM100

$ 865.63

MADE TO ORDER

[HE579RTD200] SmartBlock, Isolated RTD Input Module, 8 channel. Supports PT100, PT200, PT500, Pt-1000, Ni100, Ni120, and Cu10. 0.1°C or F resolution. 0.1% accuracy, typical

Horner APG LLC

SmartBlock, Isolated RTD Input Module, 8 channel. Supports PT100, PT200, PT500, Pt-1000, Ni100, Ni120, and Cu10. 0.1°C or F resolution. 0.1% accuracy, typical
HE579RTD200

$ 1,292.67

MADE TO ORDER

[HE579RTD100] SmartBlock, Isolated RTD Input Module, 4 channel. Supports PT100, PT200, PT500, Pt-1000, Ni100, Ni120, and Cu10. 0.1°C or F resolution. 0.1% accuracy, typical

Horner APG LLC

SmartBlock, Isolated RTD Input Module, 4 channel. Supports PT100, PT200, PT500, Pt-1000, Ni100, Ni120, and Cu10. 0.1°C or F resolution. 0.1% accuracy, typical
HE579RTD100

$ 865.63

MADE TO ORDER

[HE579MIX977] SmartBlock, 8 Analog Inputs (0-10V, 0 -5V, 0-20mA, 4-20mA) 16-bit resolution + 4 Analog Outputs (0-10V, 0 -5V, 0-20mA, 4-20mA) 14-bit resolution. Channel-by-Channel voltage/current selection for all channels

Horner APG LLC

SmartBlock, 8 Analog Inputs (0-10V, 0 -5V, 0-20mA, 4-20mA) 16-bit resolution + 4 Analog Outputs (0-10V, 0 -5V, 0-20mA, 4-20mA) 14-bit resolution. Channel-by-Channel voltage/current selection for all channels
HE579MIX977

$ 1,303.06

MADE TO ORDER

[HE579MIX577] SmartBlock, 4 Analog Inputs (0-10V, 0 -5V, 0-20mA, 4-20mA) 16-bit resolution + 2 Analog Outputs (0-10V, 0 -5V, 0-20mA, 4-20mA) 14-bit resolution. Channel-by-Channel voltage/current selection for all channels

Horner APG LLC

SmartBlock, 4 Analog Inputs (0-10V, 0 -5V, 0-20mA, 4-20mA) 16-bit resolution + 2 Analog Outputs (0-10V, 0 -5V, 0-20mA, 4-20mA) 14-bit resolution. Channel-by-Channel voltage/current selection for all channels
HE579MIX577

$ 1,034.13

MADE TO ORDER

[HE579MIX105] SmartBlock, Isolated Mixed Digital/Analog I/O Module (12/12/2/2). Twelve Isolated, 12/24V DC Inputs (pos/neg logic). Twelve 12/24VDC Outputs . Two Analog Inputs (14-bit) supporting 4-20mA, 0-10V, 100mV or (16-bit) PT100 RTD, Thermocouple. Two Analog Outputs (14-bit) 0-10 or 0-20mA

Horner APG LLC

SmartBlock, Isolated Mixed Digital/Analog I/O Module (12/12/2/2). Twelve Isolated, 12/24V DC Inputs (pos/neg logic). Twelve 12/24VDC Outputs . Two Analog Inputs (14-bit) supporting 4-20mA, 0-10V, 100mV or (16-bit) PT100 RTD, Thermocouple. Two Analog Outputs (14-bit) 0-10 or 0-20mA
HE579MIX105

$ 1,303.06

MADE TO ORDER

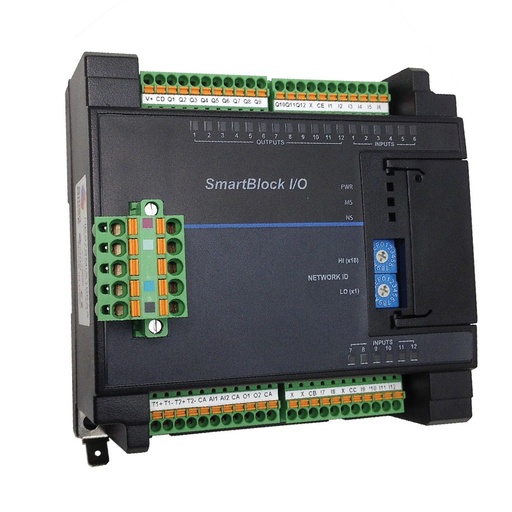

[HE579MIX102] SmartBlock, Isolated Mixed Digital/Analog I/O Module (12/6/4). Twelve Isolated, 12/24V DC Inputs (pos/neg logic). Six Relay Outputs (30VDC, 250Vac, 3A). Four Isolated Analog Inputs (16-bit) supporting 4-20mA and 0-10V

Horner APG LLC

SmartBlock, Isolated Mixed Digital/Analog I/O Module (12/6/4). Twelve Isolated, 12/24V DC Inputs (pos/neg logic). Six Relay Outputs (30VDC, 250Vac, 3A). Four Isolated Analog Inputs (16-bit) supporting 4-20mA and 0-10V
HE579MIX102

$ 964.88

MADE TO ORDER
