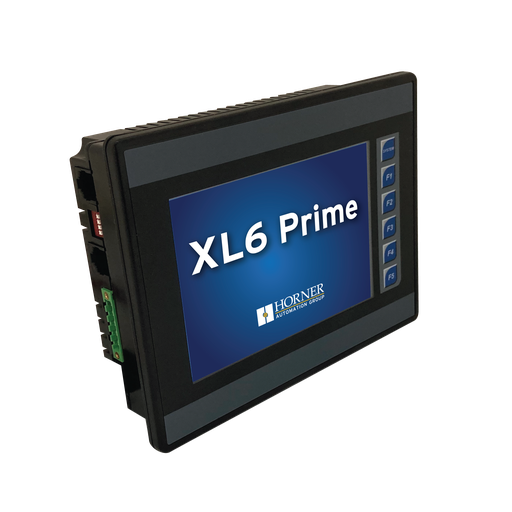

[HE-XPL1E6-602] XL6 Prime Controller 5.7" with Improved Performance, 12 DC In, 12 DC Out, 6 Analog In (mA/V/Tc/mV/RTD), 4 Analog Out. With screw type I/O terminals

Horner APG LLC

XL6 Prime Controller 5.7" with Improved Performance, 12 DC In, 12 DC Out, 6 Analog In (mA/V/Tc/mV/RTD), 4 Analog Out. With screw type I/O terminals
HE-XPL1E6-602

$ 3,306.70

MADE TO ORDER

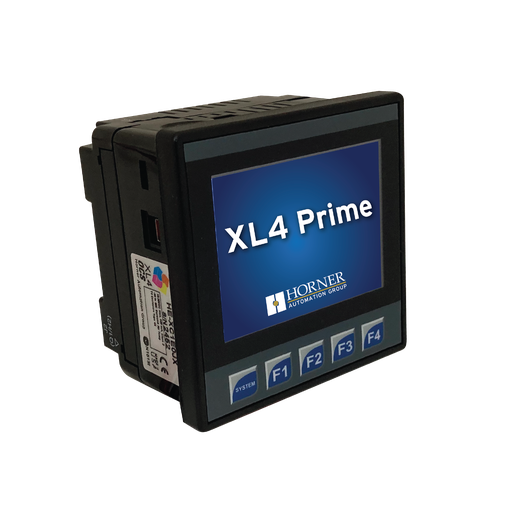

[HE-XPC1E6-603] XL4 Prime Controller 3.5" with Improved Performance, 12 DC In, 12 DC Out, 6 Analog In (mA/V/Tc/mV/RTD), 4 Analog Out. With Display Heater and With screw type I/O terminals

Horner APG LLC

XL4 Prime Controller 3.5" with Improved Performance, 12 DC In, 12 DC Out, 6 Analog In (mA/V/Tc/mV/RTD), 4 Analog Out. With Display Heater and With screw type I/O terminals
HE-XPC1E6-603

$ 2,789.63

MADE TO ORDER

[HE-XPC1E6-602] XL4 Prime Controller 3.5" with Improved Performance, 12 DC In, 12 DC Out, 6 Analog In (mA/V/Tc/mV/RTD), 4 Analog Out. With screw type I/O terminals

Horner APG LLC

XL4 Prime Controller 3.5" with Improved Performance, 12 DC In, 12 DC Out, 6 Analog In (mA/V/Tc/mV/RTD), 4 Analog Out. With screw type I/O terminals
HE-XPC1E6-602

$ 2,498.78

MADE TO ORDER

[HE-XPC1E6-22] XL4 Prime Controller 3.5" with Improved Performance, 12 DC In, 12 DC Out, 6 Analog In (mA/V/Tc/mV/RTD), 4 Analog Out, With Display Heater

Horner APG LLC

XL4 Prime Controller 3.5" with Improved Performance, 12 DC In, 12 DC Out, 6 Analog In (mA/V/Tc/mV/RTD), 4 Analog Out, With Display Heater
HE-XPC1E6-22

$ 2,789.63

MADE TO ORDER

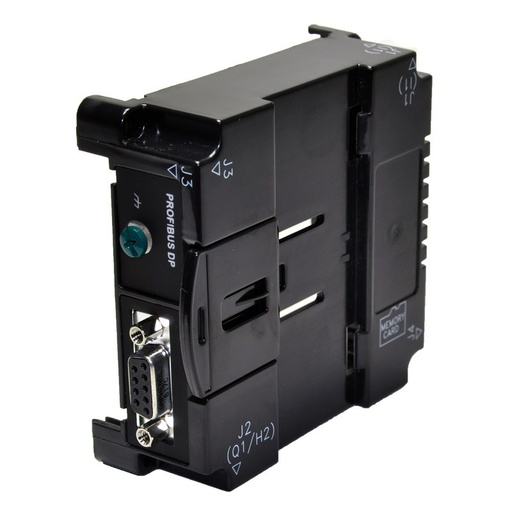

[HE-XPBS] MAT - Profibus DP Slave option kit. Due to mechanical interference, not compatible with I/O models 100, 104, and 105. Does NOT require sharing of MJ1 resources

Horner APG LLC

MAT - Profibus DP Slave option kit. Due to mechanical interference, not compatible with I/O models 100, 104, and 105. Does NOT require sharing of MJ1 resources
HE-XPBS

$ 776.76

MADE TO ORDER

[HE-XT1E6-44] XLTe Controller 3.5", 12 DC In, 12 DC Out, 6 Analog In (mA/V/Tc/mV/RTD), 4 Analog Out, With SAE J1939 license preloaded and CsCAN support removed

Horner APG LLC

XLTe Controller 3.5", 12 DC In, 12 DC Out, 6 Analog In (mA/V/Tc/mV/RTD), 4 Analog Out, With SAE J1939 license preloaded and CsCAN support removed
HE-XT1E6-44

$ 2,498.78

MADE TO ORDER

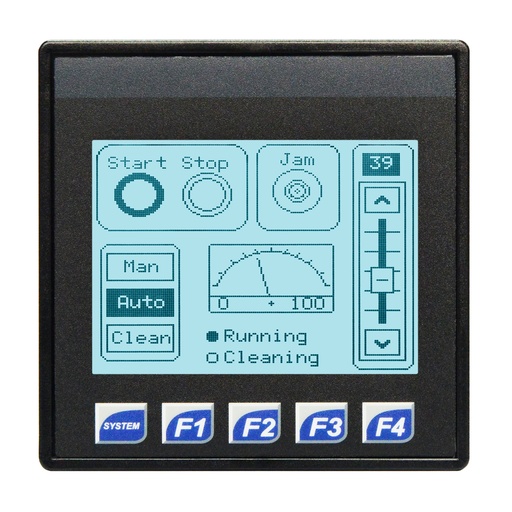

[HE-XT1E5-44] XLTe Controller 3.5", 12 DC In, 12 DC Out, 2 Analog In (mA/V/Tc/mV/RTD), 2 Analog Out, With SAE J1939 license preloaded and CsCAN support removed

Horner APG LLC

XLTe Controller 3.5", 12 DC In, 12 DC Out, 2 Analog In (mA/V/Tc/mV/RTD), 2 Analog Out, With SAE J1939 license preloaded and CsCAN support removed
HE-XT1E5-44

$ 2,291.03

MADE TO ORDER

Public Pricelist (v2)
