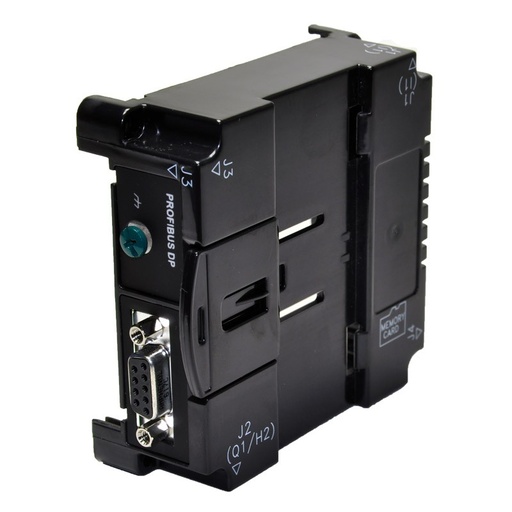

[HE-XPBS] MAT - Profibus DP Slave option kit. Due to mechanical interference, not compatible with I/O models 100, 104, and 105. Does NOT require sharing of MJ1 resources

Horner APG LLC

MAT - Profibus DP Slave option kit. Due to mechanical interference, not compatible with I/O models 100, 104, and 105. Does NOT require sharing of MJ1 resources
HE-XPBS

$ 776.76

MADE TO ORDER

[HE-XT1E6-44] XLTe Controller 3.5", 12 DC In, 12 DC Out, 6 Analog In (mA/V/Tc/mV/RTD), 4 Analog Out, With SAE J1939 license preloaded and CsCAN support removed

Horner APG LLC

XLTe Controller 3.5", 12 DC In, 12 DC Out, 6 Analog In (mA/V/Tc/mV/RTD), 4 Analog Out, With SAE J1939 license preloaded and CsCAN support removed
HE-XT1E6-44

$ 2,498.78

MADE TO ORDER

[HE-XT1E5-44] XLTe Controller 3.5", 12 DC In, 12 DC Out, 2 Analog In (mA/V/Tc/mV/RTD), 2 Analog Out, With SAE J1939 license preloaded and CsCAN support removed

Horner APG LLC

XLTe Controller 3.5", 12 DC In, 12 DC Out, 2 Analog In (mA/V/Tc/mV/RTD), 2 Analog Out, With SAE J1939 license preloaded and CsCAN support removed
HE-XT1E5-44

$ 2,291.03

MADE TO ORDER

[HE-XT106-44] XLT Controller 3.5", 12 DC In, 12 DC Out, 6 Analog In (mA/V/Tc/mV/RTD), 4 Analog Out, With SAE J1939 license preloaded and CsCAN support removed

Horner APG LLC

XLT Controller 3.5", 12 DC In, 12 DC Out, 6 Analog In (mA/V/Tc/mV/RTD), 4 Analog Out, With SAE J1939 license preloaded and CsCAN support removed
HE-XT106-44

$ 2,498.78

MADE TO ORDER

[HE-XT105-44] XLT Controller 3.5", 12 DC In, 12 DC Out, 2 Analog In (mA/V/Tc/mV/RTD), 2 Analog Out, With SAE J1939 license preloaded and CsCAN support removed

Horner APG LLC

XLT Controller 3.5", 12 DC In, 12 DC Out, 2 Analog In (mA/V/Tc/mV/RTD), 2 Analog Out, With SAE J1939 license preloaded and CsCAN support removed
HE-XT105-44

$ 2,291.03

MADE TO ORDER

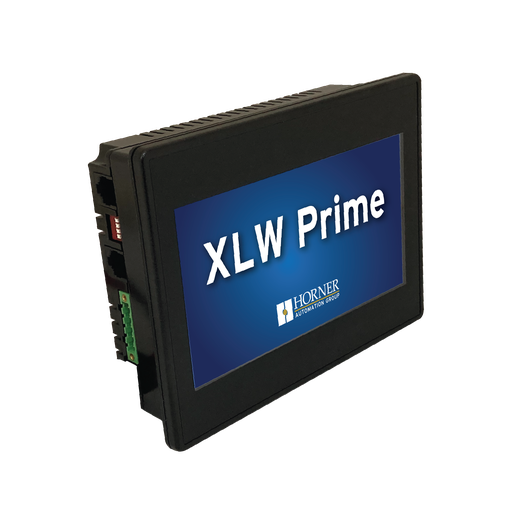

[HE-XPLWE6-44] XLW Prime Controller 7" with Improved Performance, 12 DC In, 12 DC Out, 6 Analog In (mA/V/Tc/mV/RTD), 4 Analog Out, With SAE J1939 license preloaded and CsCAN support removed

Horner APG LLC

XLW Prime Controller 7" with Improved Performance, 12 DC In, 12 DC Out, 6 Analog In (mA/V/Tc/mV/RTD), 4 Analog Out, With SAE J1939 license preloaded and CsCAN support removed
HE-XPLWE6-44

$ 3,537.53

MADE TO ORDER

[HE-XPLWE5-44] XLW Prime Controller 7" with Improved Performance, 12 DC In, 12 DC Out, 2 Analog In (mA/V/Tc/mV/RTD), 2 Analog Out, With SAE J1939 license preloaded and CsCAN support removed

Horner APG LLC

XLW Prime Controller 7" with Improved Performance, 12 DC In, 12 DC Out, 2 Analog In (mA/V/Tc/mV/RTD), 2 Analog Out, With SAE J1939 license preloaded and CsCAN support removed
HE-XPLWE5-44

$ 3,422.11

MADE TO ORDER
