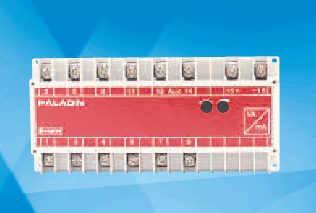

[256-TWMU-QKHG-C6-XC] CROMPTON PALADIN WATT TRANSDUCER 3 PHASE 3 WIRE UNBALNCED LOAD, INPUT L/L VT RATIO 450/450V, CT RATIO 900/5A, OUTPUT 4-20mA into 500 ohms, 60 Hz, 0/500 KW

TE Connectivity Corporation

CROMPTON PALADIN WATT TRANSDUCER 3 PHASE 3 WIRE UNBALNCED LOAD, INPUT L/L VT RATIO 450/450V, CT RATIO 900/5A, OUTPUT 4-20mA into 500 ohms, 60 Hz, 0/500 KW
256-TWMU-QKHG-C6-XC

$ 680.00

MADE TO ORDER

[256-TWMU-QKHG-C6-WW] CROMPTON PALADIN WATT TRANSDUCER 3 PHASE 3 WIRE UNBALNCED LOAD, INPUT L/L VT RATIO 450/450V, CT RATIO 400/5A, OUTPUT 4-20mA into 500 ohms, 60 Hz, 0/200 KW

TE Connectivity Corporation

CROMPTON PALADIN WATT TRANSDUCER 3 PHASE 3 WIRE UNBALNCED LOAD, INPUT L/L VT RATIO 450/450V, CT RATIO 400/5A, OUTPUT 4-20mA into 500 ohms, 60 Hz, 0/200 KW
256-TWMU-QKHG-C6-WW

$ 680.00

MADE TO ORDER

[256-TWMU-QKHG-C6-XA] CROMPTON PALADIN WATT TRANSDUCER 3 PHASE 3 WIRE UNBALNCED LOAD, INPUT L/L VT RATIO 450/450V, CT RATIO 700/5A, OUTPUT 4-20mA into 500 ohms, 60 Hz, 0/400 KW

TE Connectivity Corporation

CROMPTON PALADIN WATT TRANSDUCER 3 PHASE 3 WIRE UNBALNCED LOAD, INPUT L/L VT RATIO 450/450V, CT RATIO 700/5A, OUTPUT 4-20mA into 500 ohms, 60 Hz, 0/400 KW
256-TWMU-QKHG-C6-XA

$ 680.00

MADE TO ORDER

[256-TWMU-QKHG-C6-WY] CROMPTON PALADIN WATT TRANSDUCER 3 PHASE 3 WIRE UNBALNCED LOAD, INPUT L/L VT RATIO 450/450V, CT RATIO 600/5A, OUTPUT 4-20mA into 500 ohms, 60 Hz, 0/300 KW

TE Connectivity Corporation

CROMPTON PALADIN WATT TRANSDUCER 3 PHASE 3 WIRE UNBALNCED LOAD, INPUT L/L VT RATIO 450/450V, CT RATIO 600/5A, OUTPUT 4-20mA into 500 ohms, 60 Hz, 0/300 KW
256-TWMU-QKHG-C6-WY

$ 680.00

MADE TO ORDER

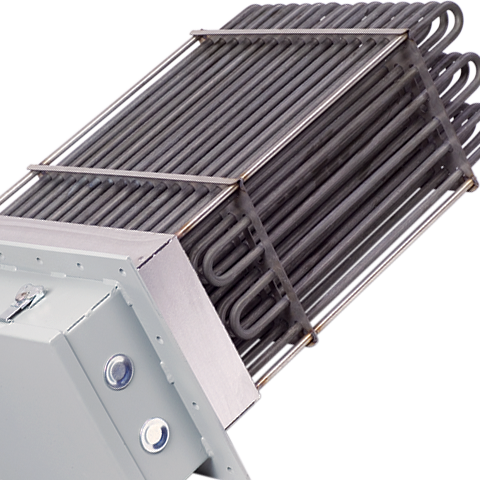

[D30S5S] Watlow Duct Heater Voltage: 480 Kilowatts: 30 Watt Density: (Calculated) 19.1 B Dimension (Immersed Element Length): 20.00 Number Of Elements: 30 Elements Electrical Phase: 3 Phase Delta Wiring Wired Par Or Ser: Parallel Insulation Thickness (In.): 3.5 In. Insulation Material: Fiberglass 450F Max Housing: General Purpose (Incl. Csa) Hilimit Sensor: No Sensor

Watlow Electric Manufacturing Company

Watlow Duct Heater Voltage: 480 Kilowatts: 30 Watt Density: (Calculated) 19.1 B Dimension (Immersed Element Length): 20.00 Number Of Elements: 30 Elements Electrical Phase: 3 Phase Delta Wiring Wired Par Or Ser: Parallel Insulation Thickness (In.): 3.5 In. Insulation Material: Fiberglass 450F Max Housing: General Purpose (Incl. Csa) Hilimit Sensor: No Sensor
D30S5S

$ 5,169.00

MADE TO ORDER

[44-4068E112-015] Pressure Reducing Regulator, 316 Stainless Steel, 6000 PSI Inlet, 600 PSI Outlet, 2.0 Cv, 3/4" SAE Ports

Tescom Corporation

Pressure Reducing Regulator, 316 Stainless Steel, 6000 PSI Inlet, 600 PSI Outlet, 2.0 Cv, 3/4" SAE Ports
44-4068E112-015

$ 5,299.00

MADE TO ORDER

[44-1362-1122] Pressure Reducing Regulator 0-300 PSI Outlet Pressure, 3/4" SAE Port Size, Self Venting, 4500 PSI Max Inlet, Cv 2.0

Tescom Corporation

Pressure Reducing Regulator 0-300 PSI Outlet Pressure, 3/4" SAE Port Size, Self Venting, 4500 PSI Max Inlet, Cv 2.0
44-1362-1122

$ 2,838.00

MADE TO ORDER

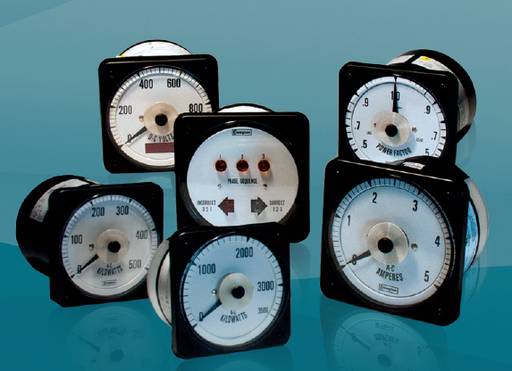

[007-DIWA-PZSJ-C6-A2] CROMPTON Model 007 - 4.5 INCH SWITCHBOARD DIGITAL/ANALOG, VOLT METER, POWER SUPPLY 12-48VDC, RATING 150V, SCALING 0-600V, PLASTIC CASE

TE Connectivity Corporation

CROMPTON Model 007 - 4.5 INCH SWITCHBOARD DIGITAL/ANALOG, VOLT METER, POWER SUPPLY 12-48VDC, RATING 150V, SCALING 0-600V, PLASTIC CASE
007-DIWA-PZSJ-C6-A2

$ 725.00

MADE TO ORDER
