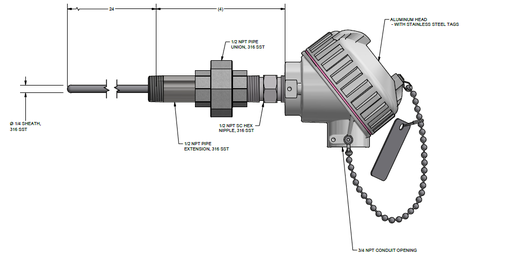

[BMI4A49-018-9HN-SG,I-0740] R1T185L483-024-SC-8PU431,I 100 ohm Platinum Temperature Coefficient 0.00385 ohms per Degree C Tolerance Grade B Temperature Range -200 to 200 Degrees C 1/4 Inch Diameter 316 Stainless Steel Sheath 3-Wire Sheath Length: 24 Inches 1/2 Inch NPT Stainless Steel Union/Nipple Extension E Length: 4 Inches Aluminum Screw Cover Head - NEMA 4X Rated Stainless Steel Tag – TE614,TE615(DRAWING 10001028738)

Pyromation Inc.

R1T185L483-024-SC-8PU431,I 100 ohm Platinum Temperature Coefficient 0.00385 ohms per Degree C Tolerance Grade B Temperature Range -200 to 200 Degrees C 1/4 Inch Diameter 316 Stainless Steel Sheath 3-Wire Sheath Length: 24 Inches 1/2 Inch NPT Stainless Steel Union/Nipple Extension E Length: 4 Inches Aluminum Screw Cover Head - NEMA 4X Rated Stainless Steel Tag – TE614,TE615(DRAWING 10001028738)
BMI4A49-018-9HN-SG,I-0740

$ 281.40

MADE TO ORDER

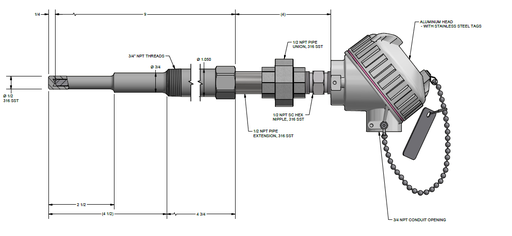

[R1T185L483-S4D0908T3S-SC-8PU431,I] Single Element RTD 100 ohm PlatinumTemperature Coefficient 0.00385 ohms per Degree C Temperature Range -200 to 200 Degrees C 1/4 Inch Diameter 316 Stainless Steel Sheath 3-Wire Standard Duty Threaded (NPT) - 0.260 Bore 316 Stainless Steel 3/4 Inch NPT Pipe Size S Dimension: 9 InchesDimension: 4(1/2) Inches Dimension: 3 Inches Customer Specified Part # on Thermowell – TW601, TW602, TWVCONE,Stainless Steel Tag – TE601, TE602, TEVCONE,Aluminum Screw Cover Head - NEMA 4X Rated(DRAWING 10001028740)

Pyromation Inc.

Single Element RTD 100 ohm PlatinumTemperature Coefficient 0.00385 ohms per Degree C Temperature Range -200 to 200 Degrees C 1/4 Inch Diameter 316 Stainless Steel Sheath 3-Wire Standard Duty Threaded (NPT) - 0.260 Bore 316 Stainless Steel 3/4 Inch NPT Pipe Size S Dimension: 9 InchesDimension: 4(1/2) Inches Dimension: 3 Inches Customer Specified Part # on Thermowell – TW601, TW602, TWVCONE,Stainless Steel Tag – TE601, TE602, TEVCONE,Aluminum Screw Cover Head - NEMA 4X Rated(DRAWING 10001028740)
R1T185L483-S4D0908T3S-SC-8PU431,I

$ 405.00

MADE TO ORDER

[BPS32NVM0150P] Barksdale BPS3000 Electronic Pressure Switch, Single Switch + 4-20 mA, 1/4" NPT, FKM, M12 Conn, 0 to 150 psig

Barksdale Inc Dba Dynalco Controls Corp

Barksdale BPS3000 Electronic Pressure Switch, Single Switch + 4-20 mA, 1/4" NPT, FKM, M12 Conn, 0 to 150 psig
BPS32NVM0150P

$ 563.72

MADE TO ORDER

[BPS32NVM0750P] Barksdale BPS3000 Electronic Pressure Switch, Single Switch + 4-20 mA, 1/4" NPT, FKM, M12 Conn, 0 to 75 psig

Barksdale Inc Dba Dynalco Controls Corp

Barksdale BPS3000 Electronic Pressure Switch, Single Switch + 4-20 mA, 1/4" NPT, FKM, M12 Conn, 0 to 75 psig
BPS32NVM0750P

$ 563.72

MADE TO ORDER

[BPS32NVM3000P] Barksdale BPS3000 Electronic Pressure Switch, Single Switch + 4-20 mA, 1/4" NPT, FKM, M12 Conn, 0 to 3000 psig

Barksdale Inc Dba Dynalco Controls Corp

Barksdale BPS3000 Electronic Pressure Switch, Single Switch + 4-20 mA, 1/4" NPT, FKM, M12 Conn, 0 to 3000 psig
BPS32NVM3000P

$ 563.72

MADE TO ORDER
