Representative photo. Please check item description for details.

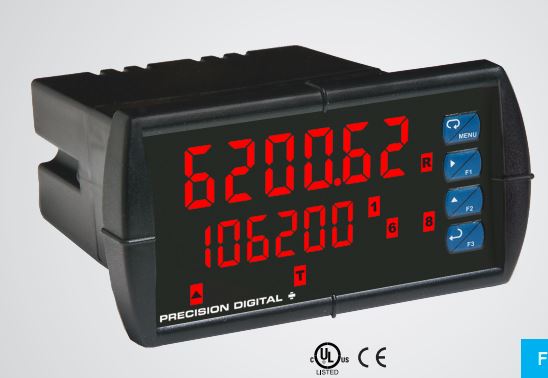

Precision Digital PD6200-6H2 ProVu Display with 2 Relays
ProVu 1/8 DIN Flow Rate/Totalizer Digital Panel Meter
Input(s): 4-20 mA, ± 10 V, (Field Selectable)
Number of Inputs: 1
Output(s): (2) Relays
Power: 85-265 VAC, 90-265 VDC
Transmitter Power: 24 VDC @ 200 mA
Display: Dual Line, SunBright Red LED, 7 Segments, 6 Digits (-99999 to 999999)
Operating Temperature Range: -40 to 65°C (-40 to 149°F)
Serial Communications: RS-232 & RS-485 Modbus External Adapters (sold separately)
Math Functions: None
Front Panel: UL Type 4X, IP65, NEMA 4X
DIN Size: 1/8 DIN
External Modules Available: 4-Relay, Digital I/O
Weight: 10 oz (269 g)
Approvals: UL & C-UL Listed. E160849; UL 508 Industrial Control Equipment, CE
Warranty: 3 Years
