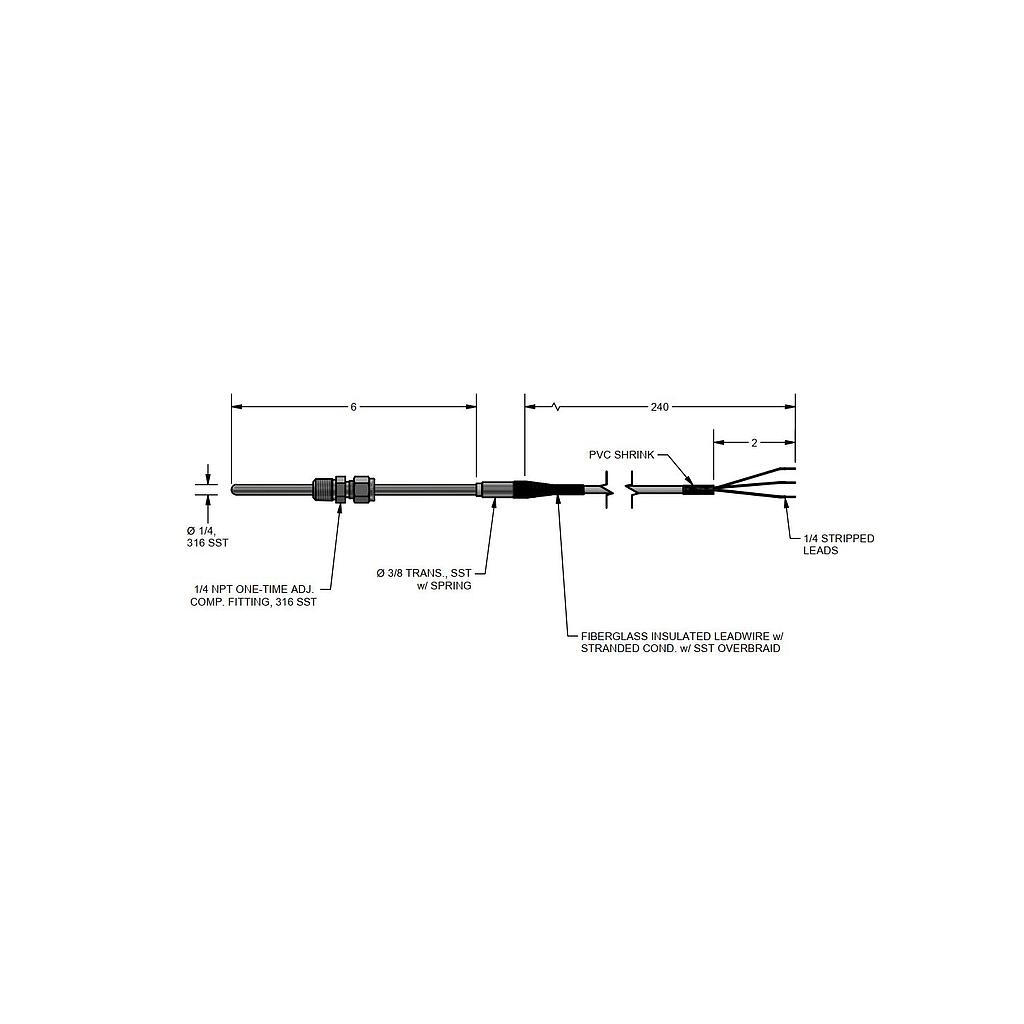

Pyromation RTD Spring-Loaded Assembly, Single 3-Wire, 1/4" OD, 6" Sheath, 20' Fiberglass Leads (2" Split, 1/4" Stripped) w/Relief Spring

https://www.branom.com/web/image/product.template/185170/image_1920?unique=c1b9893
(0 review)

‡ Single Element RTD
‡ 100 ohm Platinum
‡ Temperature Coefficient 0.00385 ohms per Degree C
‡ Tolerance Grade B
‡ Temperature Range -200 to 600 Degrees C
‡ 1/4 Inch Diameter 316 Stainless Steel Sheath
‡ 3 Wire
‡ Sheath Length: 6 Inches
‡ One-Time Adjustable Compression Fitting - 316 Stainless Steel - 1/4 Inch NPT
‡ Extension Leadwire Transition with Relief Spring 400 Degrees F
‡ Leadwire - Fiberglass Insulation - Stranded Conductor - Stainless Steel Overbraid
‡ Extension Wire B Length: 240 Inches
‡ 2 Inch Split Leads 1/4 Inch Strippe


$ 236.50 236.5 USD $ 236.50

$ 236.50

Not Available For Sale

  • RTD: Brand
  • RTD: Type
  • RTD: Output

This combination does not exist.

Contact Us

Share

‡ Single Element RTD
‡ 100 ohm Platinum
‡ Temperature Coefficient 0.00385 ohms per Degree C
‡ Tolerance Grade B
‡ Temperature Range -200 to 600 Degrees C
‡ 1/4 Inch Diameter 316 Stainless Steel Sheath
‡ 3 Wire
‡ Sheath Length: 6 Inches
‡ One-Time Adjustable Compression Fitting - 316 Stainless Steel - 1/4 Inch NPT
‡ Extension Leadwire Transition with Relief Spring 400 Degrees F
‡ Leadwire - Fiberglass Insulation - Stranded Conductor - Stainless Steel Overbraid
‡ Extension Wire B Length: 240 Inches
‡ 2 Inch Split Leads 1/4 Inch Strippe

Specifications

RTD: Brand Pyromation
RTD: Type Probe
RTD: Output 100 Ω
