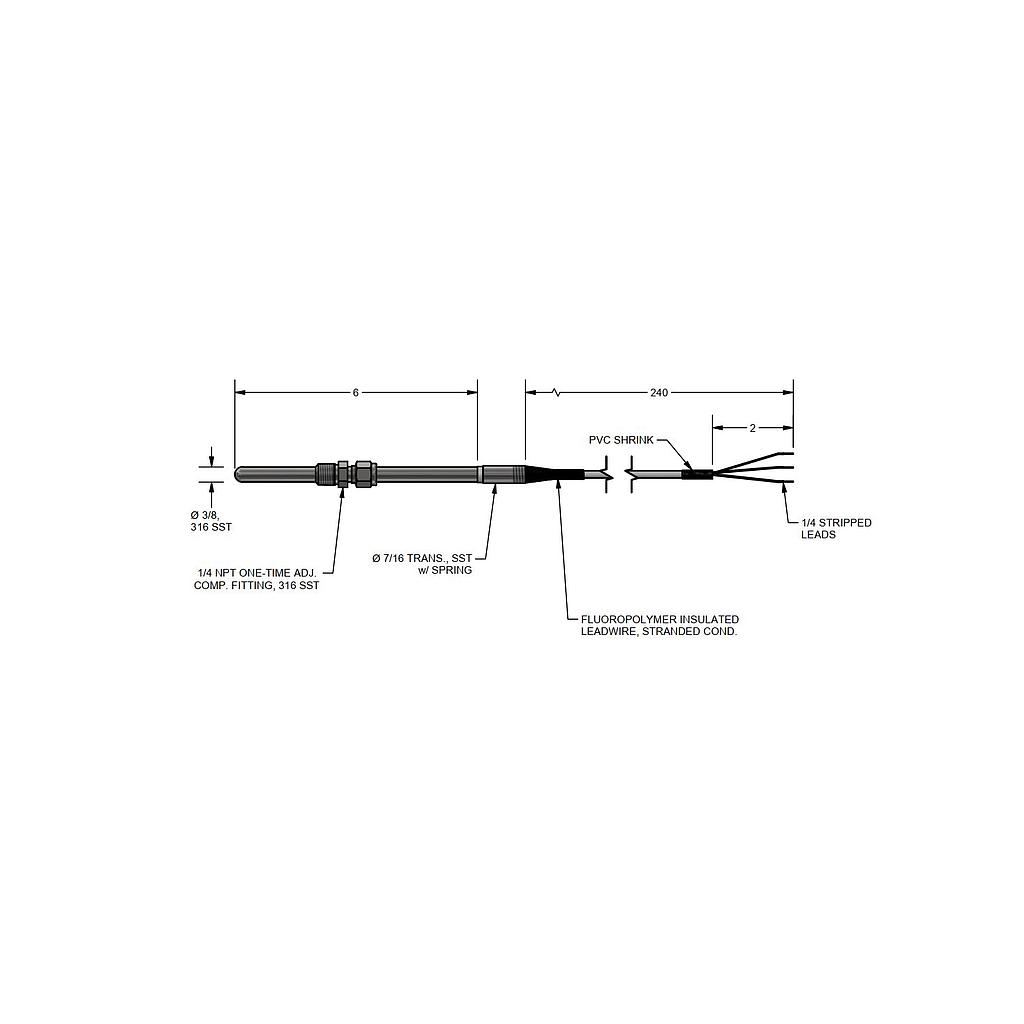

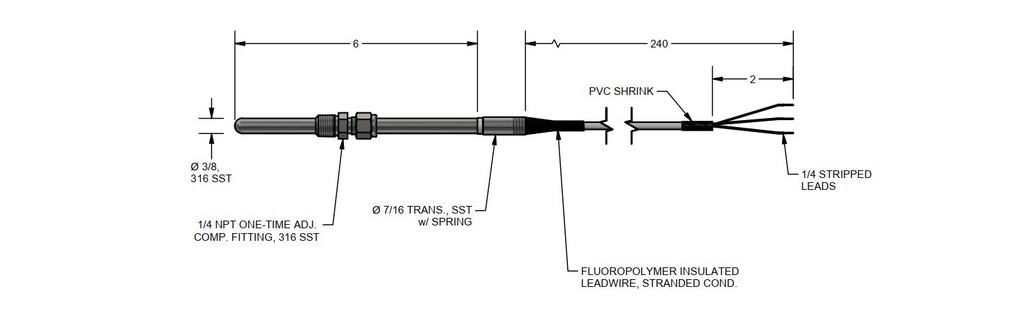

Pyromation RTD Spring-Loaded Assembly, Single 3-Wire, 1/4" OD, 6" Sheath, 20' FPM Leads (2" Split, 1/4" Stripped) w/Relief Spring
Single Element RTD
100 ohm Platinum
Temperature Coefficient 0.00385 ohms per Degree C
Tolerance Grade B
Temperature Range -200 to 600 Degrees C
3/8 Inch Diameter 316 Stainless Steel Sheath
3 Wire
Sheath Length: 6 Inches
One-Time Adjustable Compression Fitting - 316 Stainless Steel - 1/4 Inch NPT
Extension Leadwire Transition with Relief Spring 400 Degrees F
Leadwire - Fluoropolymer Insulation - Stranded Conductor
Extension Wire B Length: 240 Inches
2 Inch Split Leads 1/4 Inch Stripped
Single Element RTD
100 ohm Platinum
Temperature Coefficient 0.00385 ohms per Degree C
Tolerance Grade B
Temperature Range -200 to 600 Degrees C
3/8 Inch Diameter 316 Stainless Steel Sheath
3 Wire
Sheath Length: 6 Inches
One-Time Adjustable Compression Fitting - 316 Stainless Steel - 1/4 Inch NPT
Extension Leadwire Transition with Relief Spring 400 Degrees F
Leadwire - Fluoropolymer Insulation - Stranded Conductor
Extension Wire B Length: 240 Inches
2 Inch Split Leads 1/4 Inch Stripped
Specifications
| RTD: Brand | Pyromation |
| RTD: Type | Probe |
| RTD: Output | 100 Ω |
