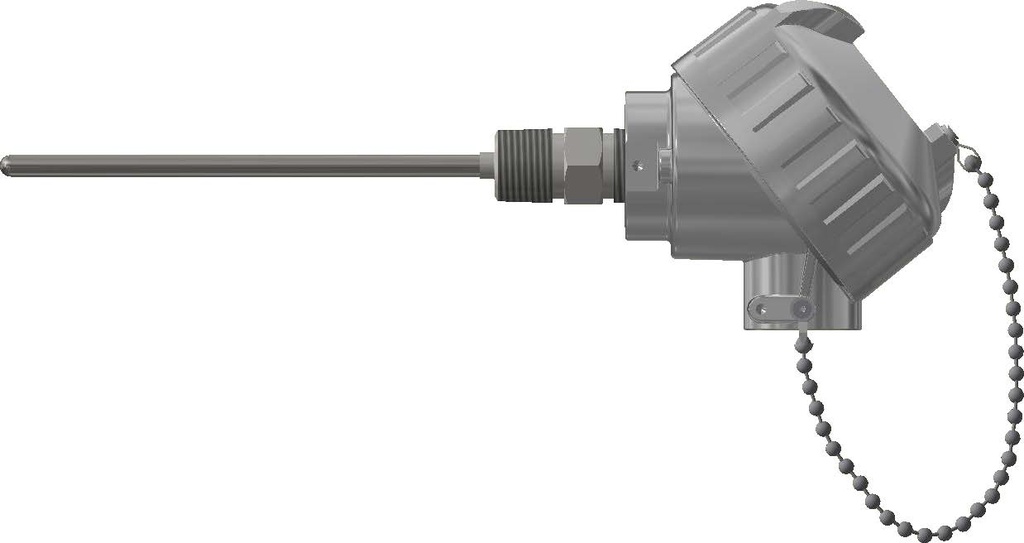

Representative photo. Please check item description for details.
Pyromation Spring-Loaded RTD, Single 3-Wire, 1/4" OD, 8" SS Sheath, Cast Iron Head
• Single Element RTD
• 100 ohm Platinum
• Temperature Coefficient 0.00385 ohms per Degree C
• Tolerance Grade B
• Temperature Range -200 to 200 Degrees C
• 1/4 Inch Diameter 316 Stainless Steel Sheath
• 4 Wire
• Sheath Length: 42 Inches
• Spring-loaded Element
• 1/2 Inch x 1/2 Inch NPT Stainless Steel Hex Nipple
• Aluminum Screw Cover Head - NEMA 4X Rated
• Single Element RTD
• 100 ohm Platinum
• Temperature Coefficient 0.00385 ohms per Degree C
• Tolerance Grade B
• Temperature Range -200 to 200 Degrees C
• 1/4 Inch Diameter 316 Stainless Steel Sheath
• 4 Wire
• Sheath Length: 42 Inches
• Spring-loaded Element
• 1/2 Inch x 1/2 Inch NPT Stainless Steel Hex Nipple
• Aluminum Screw Cover Head - NEMA 4X Rated
Specifications
| RTD: Brand | Pyromation |
| RTD: Type | Probe w/Connection Head |
| RTD: Connection Size | 1/2 NPT |
| RTD: Connection Type | Hex Nipple |
| RTD: Output | 100 Ω |
