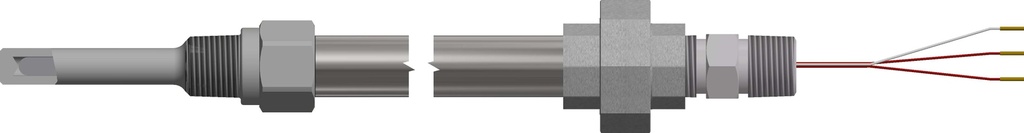

Pyromation Spring-Loaded RTD, Single 3-Wire, 1/4" OD, 11" Thermowell (SS, 3/4 NPT)
• Single Element RTD
• 100 ohm Platinum
• Temperature Coefficient 0.00385 ohms per Degree C
• Tolerance Grade B
• Temperature Range -200 to 600 Degrees C
• 1/4 Inch Diameter 316 Stainless Steel Sheath
• 3 Wire
• Standard Duty Threaded (NPT) - 0.260 Bore
• 316 Stainless Steel
• 3/4 Inch NPT Pipe Size
• S Dimension: 11 Inches
• U Dimension: 9(1/2) Inches
• Spring-loaded Element
• 1/2 Inch NPT Stainless Steel Union/Nipple
• Extension E Length: 4 Inches
• 3 Inch Individual Leads and Terminal Pins
• Single Element RTD
• 100 ohm Platinum
• Temperature Coefficient 0.00385 ohms per Degree C
• Tolerance Grade B
• Temperature Range -200 to 600 Degrees C
• 1/4 Inch Diameter 316 Stainless Steel Sheath
• 3 Wire
• Standard Duty Threaded (NPT) - 0.260 Bore
• 316 Stainless Steel
• 3/4 Inch NPT Pipe Size
• S Dimension: 11 Inches
• U Dimension: 9(1/2) Inches
• Spring-loaded Element
• 1/2 Inch NPT Stainless Steel Union/Nipple
• Extension E Length: 4 Inches
• 3 Inch Individual Leads and Terminal Pins
Specifications
| RTD: Brand | Pyromation |
| RTD: Type | Probe w/Connection Head |
| RTD: Connection Size | 1/2 NPT |
| RTD: Connection Type | Union/Nipple |
| RTD: Output | 100 Ω |
