Pyromation Spring-Loaded RTD, Single 4-Wire, 1/4" OD, 12" Leads, 6" Thermowell (SS, 3/4 NPT)
Single Element RTD
- 100 ohm Platinum
- Temperature Coefficient 0.00385 ohms per Degree C
- Tolerance Grade B
- Temperature Range -200 to 600 Degrees C
- 1/4 Inch Diameter 316 Stainless Steel Sheath
- 4 Wire
- Standard Duty Threaded (NPT) - 0.260 Bore
- 316 Stainless Steel
- 3/4 Inch NPT Pipe Size

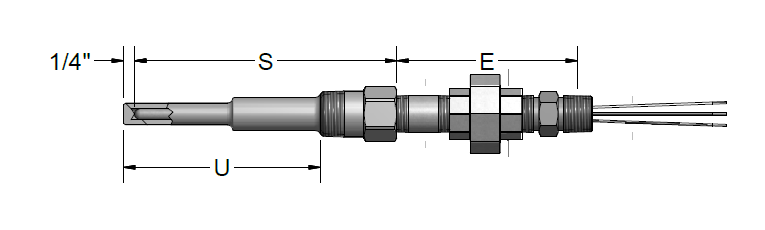

- S Dimension: 6 Inches
- U Dimension: 4(1/2) Inches
- Self-contained Spring-loaded Element
- 1/2 Inch NPT Stainless Steel Union/Nipple
- Extension E Length: 4 Inches
- 12 Inch Individual Leads and Terminal Pins
Single Element RTD
- 100 ohm Platinum
- Temperature Coefficient 0.00385 ohms per Degree C
- Tolerance Grade B
- Temperature Range -200 to 600 Degrees C
- 1/4 Inch Diameter 316 Stainless Steel Sheath
- 4 Wire
- Standard Duty Threaded (NPT) - 0.260 Bore
- 316 Stainless Steel
- 3/4 Inch NPT Pipe Size
- S Dimension: 6 Inches
- U Dimension: 4(1/2) Inches
- Self-contained Spring-loaded Element
- 1/2 Inch NPT Stainless Steel Union/Nipple
- Extension E Length: 4 Inches
- 12 Inch Individual Leads and Terminal Pins
Specifications
| RTD: Brand | Pyromation |
| RTD: Type | Probe w/Connection Head |
| RTD: Connection Size | 1/2 NPT |
| RTD: Connection Type | Union/Nipple |
| RTD: Output | 100 Ω |
