Pyromation Spring-Loaded RTD, Single 4-Wire, 1/4" OD, 3" Leads, 9" Thermowell (SS, 3/4 NPT)
Single Element RTD
100 ohm Platinum
Temperature Coefficient 0.00385 ohms per Degree C
Tolerance Grade B
Temperature Range -200 to 600 Degrees C
1/4 Inch Diameter 316 Stainless Steel Sheath
3 Wire
Standard Duty Threaded (NPT) - 0.260 Bore
316 Stainless Steel
3/4 Inch NPT Pipe Size

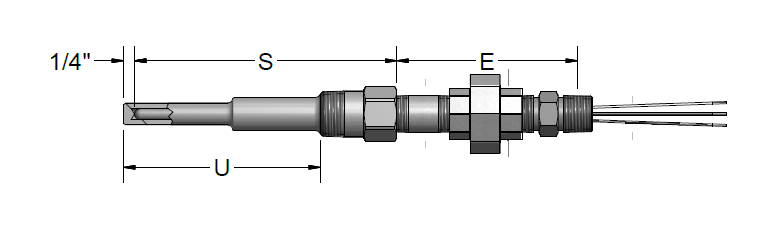

S Dimension: 9 Inches
U Dimension: 7(1/2) Inches
Self-contained Spring-loaded Element
1/2 Inch x 1/2 Inch NPT Stainless Steel Hex Nipple
3 Inch Individual Leads and Terminal Pin
Single Element RTD
100 ohm Platinum
Temperature Coefficient 0.00385 ohms per Degree C
Tolerance Grade B
Temperature Range -200 to 600 Degrees C
1/4 Inch Diameter 316 Stainless Steel Sheath
3 Wire
Standard Duty Threaded (NPT) - 0.260 Bore
316 Stainless Steel
3/4 Inch NPT Pipe Size
S Dimension: 9 Inches
U Dimension: 7(1/2) Inches
Self-contained Spring-loaded Element
1/2 Inch x 1/2 Inch NPT Stainless Steel Hex Nipple
3 Inch Individual Leads and Terminal Pin
Specifications
| RTD: Brand | Pyromation |
| RTD: Type | Probe w/Connection Head |
| RTD: Connection Size | 1/2 NPT |
| RTD: Connection Type | Union/Nipple |
| RTD: Output | 100 Ω |
