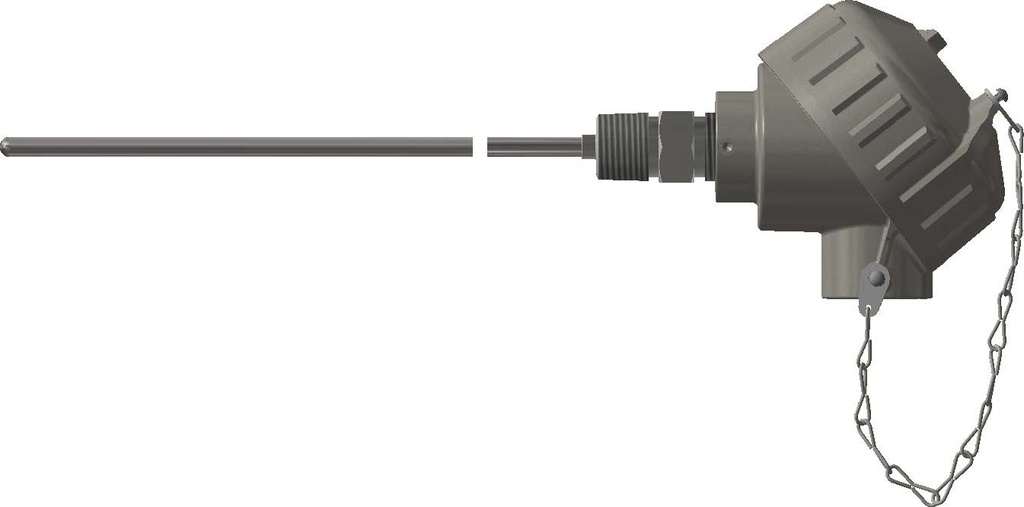

Representative photo. Please check item description for details.
Pyromation Fixed-Sheath RTD, Explosion Proof, Single 3-Wire, 1/4" OD x 18" SS Sheath, SS Head
Single Element RTD
100 ohm Platinum
Temperature Coefficient 0.00385 ohms per Degree C
Tolerance Grade B
Temperature Range -200 to 200 Degrees C
1/4 Inch Diameter 316 Stainless Steel Sheath
3 Wire
Sheath Length: (12) Inches
1/2 Inch x 1/2 Inch NPT Stainless Steel Hex Nipple
316 L Stainless Steel Screw Cover Head - NEMA 4X Rated
Single Element RTD
100 ohm Platinum
Temperature Coefficient 0.00385 ohms per Degree C
Tolerance Grade B
Temperature Range -200 to 200 Degrees C
1/4 Inch Diameter 316 Stainless Steel Sheath
3 Wire
Sheath Length: (12) Inches
1/2 Inch x 1/2 Inch NPT Stainless Steel Hex Nipple
316 L Stainless Steel Screw Cover Head - NEMA 4X Rated
Specifications
| RTD: Brand | Pyromation |
| RTD: Accuracy | Grade B |
| RTD: Circuit Type | Single 3-Wire |
| RTD: Connection Size | 1/2 NPT |
| RTD: Connection Type | Hex Nipple, Fixed-Sheath |
| RTD: Output | Pl100 Ω |
| RTD: Length (Probe/Sheath/TW) | 18 in |
| RTD: Stem Diameter | 1/4 in |
| RTD: Wetted Material | SS |
| RTD: Has Thermowell | No |
| RTD: Cover / Head Material | SS, Explosion-Proof |
| RTD: Min Temp | -328 °F |
| RTD: Max Temp | 392 °F |
