SPRING LOADED RTD WITH CONNECTION HEAD AND TRANSMITTER 4" LENGTH

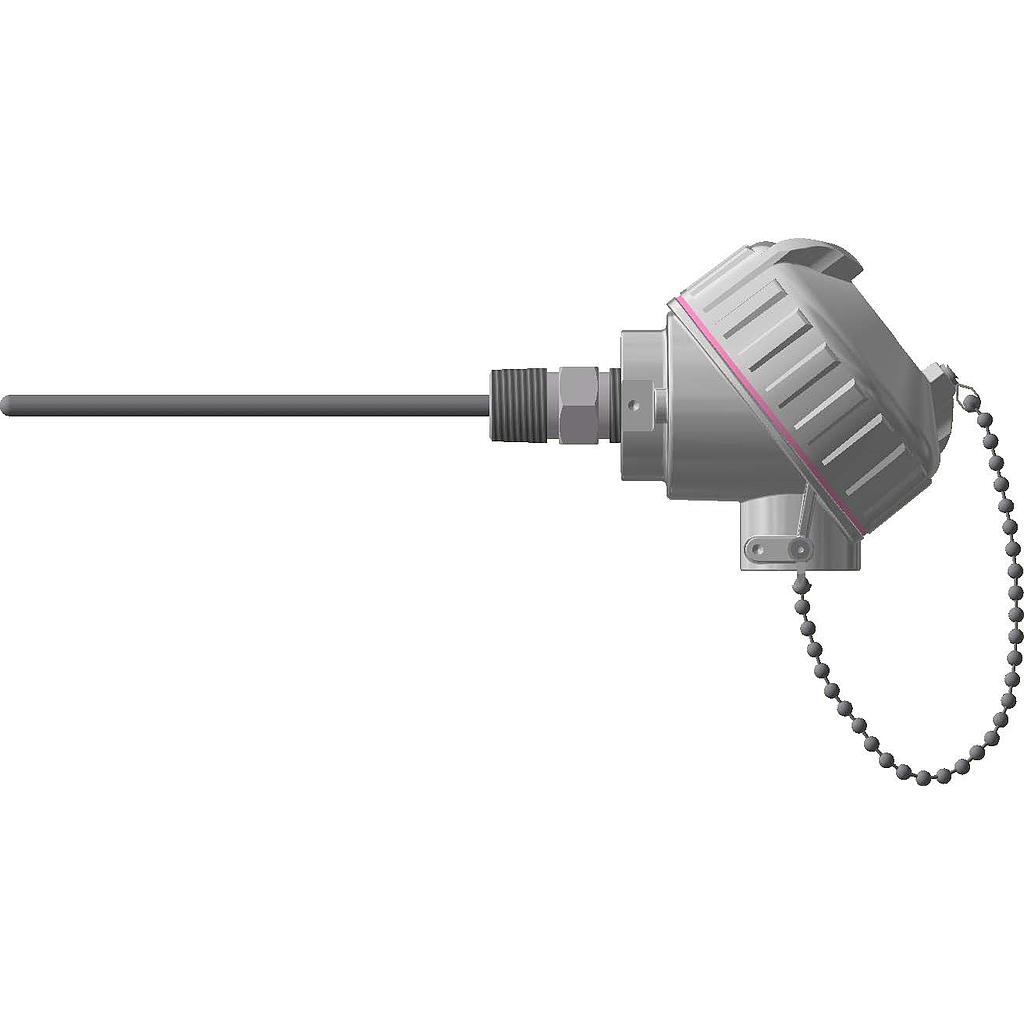

Representative photo. Please check item description for details.

SPRING LOADED RTD WITH CONNECTION HEAD AND TRANSMITTER 4" LENGTH

https://www.branom.com/web/image/product.template/546059/image_1920?unique=c1b9893
(0 review)

• Single Element RTD
• 100 ohm Platinum
• Temperature Coefficient 0.00385 ohms per Degree C
• Tolerance Grade B
• Temperature Range -200 to 200 Degrees C
• 1/4 Inch Diameter 316 Stainless Steel Sheath
• 3 Wire
• Standard Duty Threaded (NPT) - 0.260 Bore
• 316 Stainless Steel
• 1/2 Inch NPT Pipe Size
• S Dimension: 4 Inches
• U Dimension: 2(1/2) Inches
• Self-contained Spring-loaded Element
• 1/2 Inch x 1/2 Inch NPT Stainless Steel Hex Nipple
• Cast Iron Screw Cover Head - NEMA 4X Rated
• T31 (4 to 20) mA Programmable RTD Temperature Transmitter
• Upscale Burnout
• Range: (0 - 350)F


$ 464.10 464.1 USD $ 464.10

$ 464.10

Not Available For Sale

    This combination does not exist.

    Contact Us

    Share

    • Single Element RTD
    • 100 ohm Platinum
    • Temperature Coefficient 0.00385 ohms per Degree C
    • Tolerance Grade B
    • Temperature Range -200 to 200 Degrees C
    • 1/4 Inch Diameter 316 Stainless Steel Sheath
    • 3 Wire
    • Standard Duty Threaded (NPT) - 0.260 Bore
    • 316 Stainless Steel
    • 1/2 Inch NPT Pipe Size
    • S Dimension: 4 Inches
    • U Dimension: 2(1/2) Inches
    • Self-contained Spring-loaded Element
    • 1/2 Inch x 1/2 Inch NPT Stainless Steel Hex Nipple
    • Cast Iron Screw Cover Head - NEMA 4X Rated
    • T31 (4 to 20) mA Programmable RTD Temperature Transmitter
    • Upscale Burnout
    • Range: (0 - 350)F
