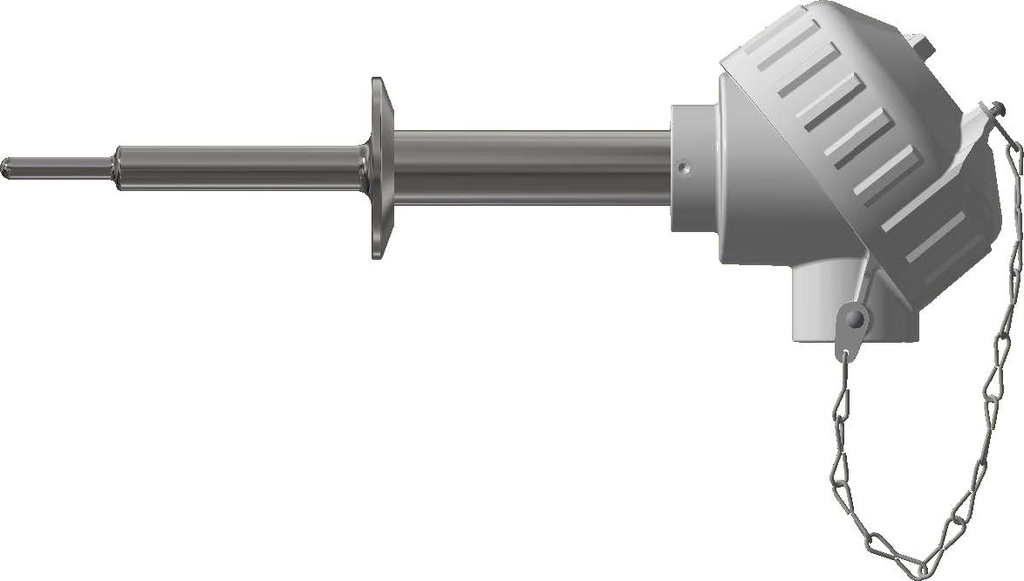

Pyromation CIP Sanitary Reduced-Tip RTD, Single 3-Wire, 4" Immersion, 1/2" > 1/4" OD Tip, PP Head, 2" OD SS Tri-Clamp
• Sanitary Connected Sensor
• Single Element RTD
• 100 ohm Platinum
• Temperature Coefficient 0.00385 Ohms per Degree C
• Tolerance Grade B
• Temperature Range -200 to 200 Degrees C
• 1/2 Inch Diameter Reduced to 1/4 Inch Diameter by 1(1/4) Inch Long Tip
• 316 Stainless Steel Sheath and Tip
• 3 Wire
• Sanitary Cap for 2 Inch Tube Size
• 16 AMP Cap - Tri-Clamp
• Immersion Length: 4 Inches
• White Polypropylene Head
• Sanitary Connected Sensor
• Single Element RTD
• 100 ohm Platinum
• Temperature Coefficient 0.00385 Ohms per Degree C
• Tolerance Grade B
• Temperature Range -200 to 200 Degrees C
• 1/2 Inch Diameter Reduced to 1/4 Inch Diameter by 1(1/4) Inch Long Tip
• 316 Stainless Steel Sheath and Tip
• 3 Wire
• Sanitary Cap for 2 Inch Tube Size
• 16 AMP Cap - Tri-Clamp
• Immersion Length: 4 Inches
• White Polypropylene Head
Specifications
| RTD: Brand | Pyromation |
| RTD: Accuracy | Grade B |
| RTD: Circuit Type | Single 3-Wire |
| RTD: Connection Size | 2 in |
| RTD: Connection Type | Tri-Clamp |
| RTD: Output | Pl100 Ω |
| RTD: Length (Probe/Sheath/TW) | 4 in |
| RTD: Stem Diameter | 1/4 in |
| RTD: Wetted Material | SS |
| RTD: Enclosure Rating | NEMA 4X |
| RTD: Has Thermowell | No |
| RTD: Cover / Head Material | PP |
| RTD: Max Temp | 392 °F |
