Description
Features

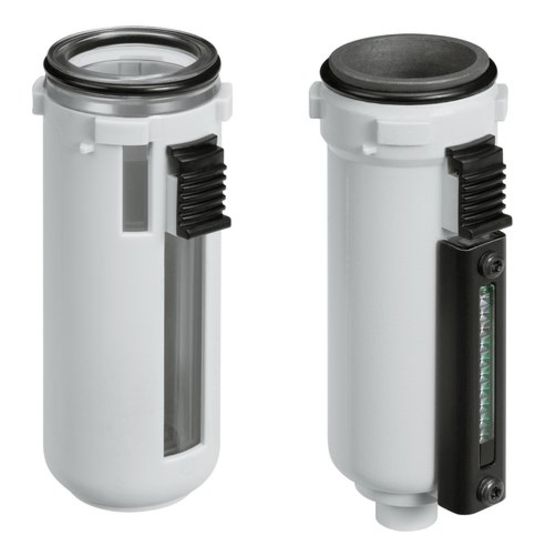

- Type: Standard filter
- Parts: Filter
- Reservoir: reservoir, polycarbonate, with PA protective guard
- Port: G 1/4
- Filter porosity: 5 µm
- Nominal flow Qn: 2100 l/min
- Condensate drain: fully automatic, open without pressure
- Working pressure min.: 1.5 bar
- Working pressure max: 16 bar
- Min. ambient temperature: -10 °C
- Max. ambient temperature: 50 °C
- Medium: Compressed air, Neutral gases
- Max. achievable compressed air class acc. to ISO 8573-1:2010: 6 : 7 : -
- Filter reservoir volume: 28 cm³
- Filter element: exchangeable
- Weight: 0.255 kg
- Mounting orientation: vertical
- Type: Can be assembled into blocks
- Housing material: Polyamide
- Material front plate: Acrylonitrile butadiene styrene
- Seal material: Acrylonitrile butadiene rubber
- Material threaded bushing: Die cast zinc
- Material reservoir: Polycarbonate
- Material protective guard: Polyamide
- Material filter insert: Polyethylene:
