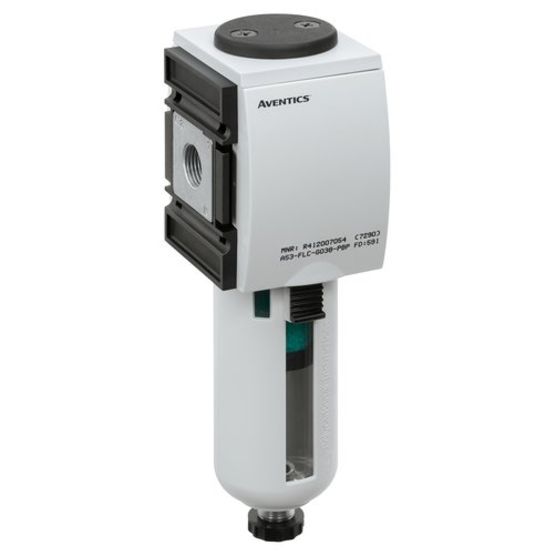

Representative photo. Please check item description for details.
AVENTICS AS3-FLP Series Pre-Filter, Polycarbonate Reservoir, 1.5 to 16 bar, Semi-Automatic, Open w/o Pressure, Compressed Air
Features
- Type: Pre-filter
- Parts: Pre-filter
- Reservoir: reservoir, polycarbonate, with PA protective guard
- Port: G 1/2
- Filter porosity: 0.3 µm
- Nominal flow Qn: 900 l/min
- Condensate drain: semi-automatic, open without pressure
- Working pressure min.: 1.5 bar
- Working pressure max: 16 bar
- Min. ambient temperature: -10 °C
- Max. ambient temperature: 50 °C
- Medium: Compressed air, Neutral gases
- Max. achievable compressed air class acc. to ISO 8573-1:2010: 2 : - : 3
- Filter reservoir volume: 49 cm³
- Filter element: exchangeable
- Recommended pre-filtering: 5 µm
- Weight: 0.361 kg
- Mounting orientation: vertical
- Type: Can be assembled into blocks
- Housing material: Polyamide
- Material front plate: Acrylonitrile butadiene styrene
- Seal material: Acrylonitrile butadiene rubber
- Material threaded bushing: Die cast zinc
- Material reservoir: Polycarbonate
- Material protective guard: Polyamide:
