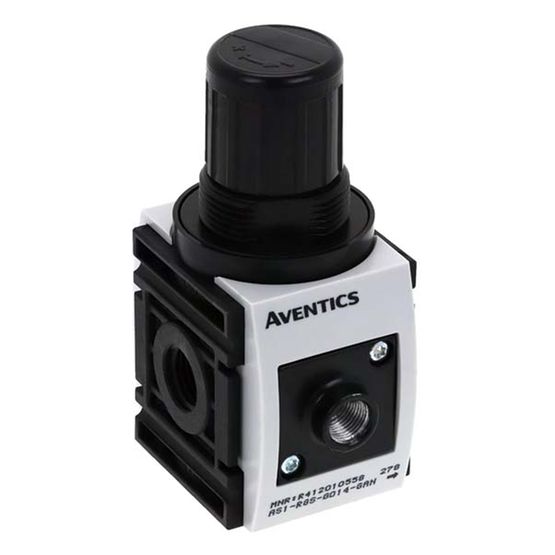

AVENTICS AS1-RGS Series Diaphragm-Type Pressure Regulator, G 1/4, Not Lockable, Left Air Supply, Double Pressure Supply, 0.1 to 12 bar
Features
- Function: Standard pressure regulator
- Parts: Pressure regulator with continuous pressure supply
- Port: G 1/4
- Nominal flow Qn: 1000 l/min
- Pressure gauge: without pressure gauge
- Mounting orientation: Any
- Regulator type: Diaphragm-type pressure regulator
- Regulation range min.: 0.1 bar
- Regulation range max.: 1 bar
- Working pressure min.: 0.1 bar
- Working pressure max: 12 bar
- Min. ambient temperature: -10 °C
- Max. ambient temperature: 50 °C
- Air supply: left
- Activation: Manual
- Regulator function: with relieving air exhaust
- Regulator type: Can be assembled into blocks
- Pressure supply: double
- Lock type: not lockable
- with continuous pressure supply: with continuous pressure supply
- Medium: Compressed air, Neutral gases
- Max. pressure gauge Ø in blocked state: 40 mm
- Weight: 0.206 kg
- Housing material: Polyamide
- Material front plate: Acrylonitrile butadiene styrene:
