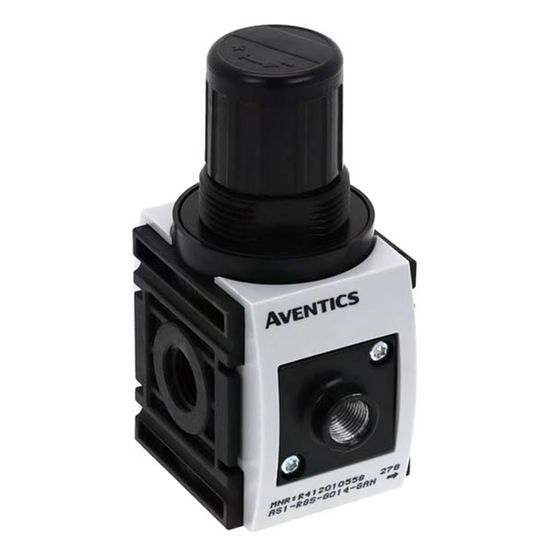

Representative photo. Please check item description for details.
AVENTICS AS1-RGS Series Diaphragm-Type Pressure Regulator, G 1/4, w/E11 Locking, Left Air Supply, 0.5 to 12 bar
Features
- Note: The E11 locking is delivered without a key (see accessories for keys R961403407)., The rear pressure gauge connection on the pressure regulator is closed with a blanking plug, the front connection is open. Depending on the customer application, a second blanking plug may be necessary. Please order separately (see accessories).
- Parts: Pressure regulator
- Port: G 1/4
- Nominal flow Qn: 1000 l/min
- Pressure gauge: without pressure gauge
- Mounting orientation: Any
- Regulator type: Diaphragm-type pressure regulator
- Regulation range min.: 0.5 bar
- Regulation range max.: 10 bar
- Working pressure min.: 0.5 bar
- Working pressure max: 12 bar
- Min. ambient temperature: -10 °C
- Max. ambient temperature: 50 °C
- Air supply: left
- Activation: Manual
- Regulator function: with relieving air exhaust
- Regulator type: Can be assembled into blocks
- Lock type: with E11 locking
- Medium: Compressed air, Neutral gases
- Max. pressure gauge Ø in blocked state: 40 mm
- Weight: 0.206 kg
- Housing material: Polyamide
- Material front plate: Acrylonitrile butadiene styrene
- Seal material: Acrylonitrile butadiene rubber:
