Description

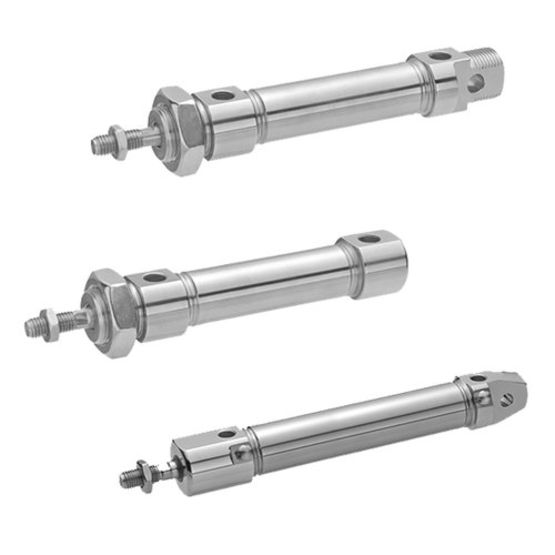

The AVENTICS Series CSL-RD (ISO 6432) cylinder is a stainless-steel round cylinder, configurable in three different designs: standard, hygienic and short. The Series CSL-RD (ISO 6432) has a smooth profile and low surface roughness made of stainless steel, NSF-H1 grease and FDA compliant seals it is suitable for food contact. In addition, the cylinders are certified in accordance with regulation (EC) No 1935/2004.
Features
- Standards: ISO 6432
- Piston Ø: 16 mm
- Stroke: 25 mm
- Ports: M5
- Functional principle: Double-acting
- Cushioning: Elastic cushioning
- Magnetic piston: Piston with magnet
- Environmental requirements: Industry standard, suitable for use in food processing, ATEX optional
- Piston rod: single
- Cylinder special features: Version: standard type
- Scraper: Food-Grade Scraper
- Pressure for determining piston forces: 6,3 bar
- Retracting piston force: 109 N
- Extracting piston force: 127 N
- Min. ambient temperature: -20 °C
- Max. ambient temperature: 80 °C
- Working pressure min.: 1 bar
- Working pressure max: 10 bar
- Piston rod thread: M6
- Impact energy: 0.14 J
- Weight 0 mm stroke: 0.034 kg
- Weight +10 mm stroke: 0.0024 kg
- Stroke max.: 800 mm
- Medium: Compressed air
- Min. medium temperature: -20 °C:
