Description

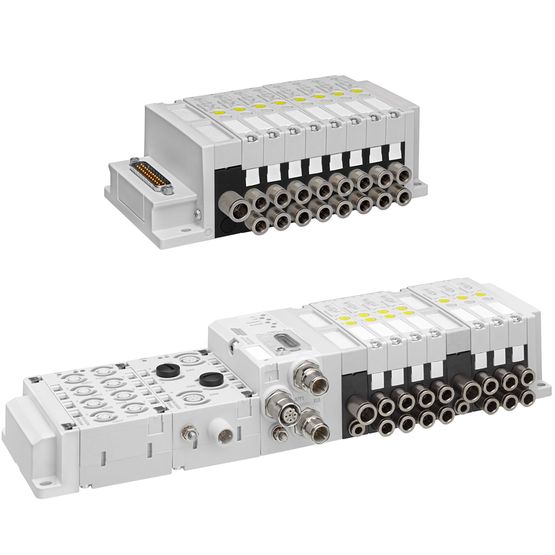

The AVENTICS Series AV03/AV05 provide a reliable basis for both compact handling systems and complex automation solutions. Within machine safety the Series AV03/AV05 offers intelligent solutions that significantly reduce your effort in creating a safe design. With the integration of the fieldbus and I/O-modules of the Series AES, also all requirements for distributed control are available. The Series AV03/AV05 is easy to configure, easy to use and easy to extend as well as IIoT futureproof thanks to the integration of OPC UA and the Digital Twin.
Features
- Activation: Electrically
- Nominal flow Qn: 240 l/min
- Switching principle: 5/3
- Version: Closed Center
- Working pressure min.: -0.9 bar
- Working pressure max: 10 bar
- DC operating voltage: 24 V
- Voltage tolerance DC: -10% / +10%
- Manual override: without detent
- Actuating control: Double Solenoid
- Sealing principle: Soft Seal
- Pilot: External
- Valve type: Spool valve, positive overlapping
- Connection type: Plate connection
- Return: With spring return
- Blocking principle: Base plate principle, multiple
- Control pressure min.: 3 bar
- Control pressure max.: 8 bar
- Min. ambient temperature: -10 °C
- Max. ambient temperature: 60 °C
- Min. medium temperature: -10 °C
- Max. medium temperature: 60 °C
- Medium: Compressed air
- Max. particle size: 40 µm
- Oil content of compressed air min.: 0 mg/m³:
