  3. Pyromation, 3 Wire RTD, 4inch Insertion, Class (1/5) Class B, Tolerance.
Public Pricelist (v2)

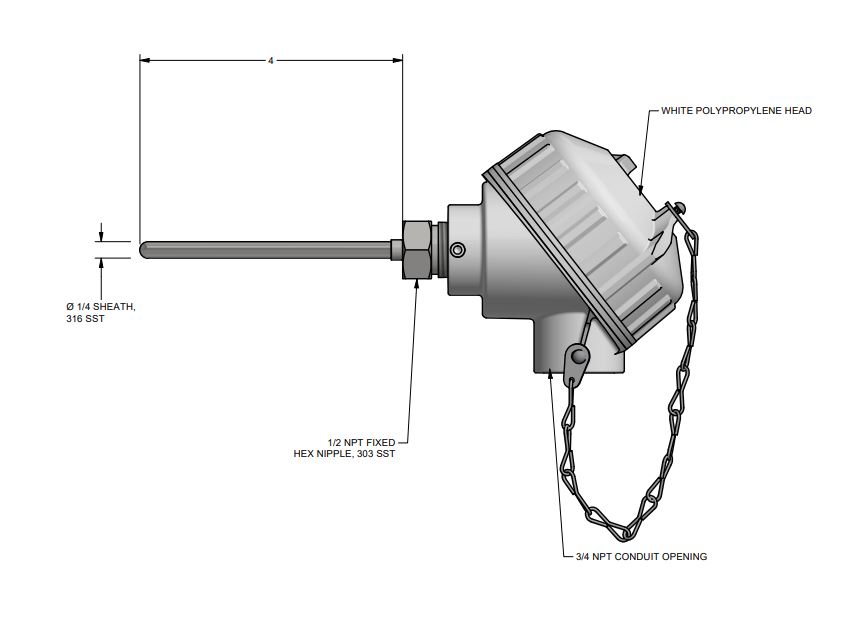

Representative photo. Please check item description for details.

Pyromation, 3 Wire RTD, 4inch Insertion, Class (1/5) Class B, Tolerance.

https://www.branom.com/web/image/product.template/513423/image_1920?unique=3c0a30c
(0 review)

• Single Element RTD
• 100 ohm Platinum
• Temperature Coefficient 0.00385 ohms per Degree C
• Tolerance (1/5) Class B
• Temperature Range -30 to 150 Degrees C
• 1/4 Inch Diameter 316 Stainless Steel Sheath
• 3 Wire
• Sheath Length: 4 Inches
• 1/2 Inch NPT Stainless Steel Bushing (No Process Threads)
• White Polypropylene Head


$ 222.00 222.0 USD $ 222.00

$ 222.00

Not Available For Sale

  • Measurement Maximum
  • Measurement Minimum

This combination does not exist.

Contact Us

Share

• Single Element RTD
• 100 ohm Platinum
• Temperature Coefficient 0.00385 ohms per Degree C
• Tolerance (1/5) Class B
• Temperature Range -30 to 150 Degrees C
• 1/4 Inch Diameter 316 Stainless Steel Sheath
• 3 Wire
• Sheath Length: 4 Inches
• 1/2 Inch NPT Stainless Steel Bushing (No Process Threads)
• White Polypropylene Head

Specifications

Measurement Maximum 0
Measurement Minimum 0
