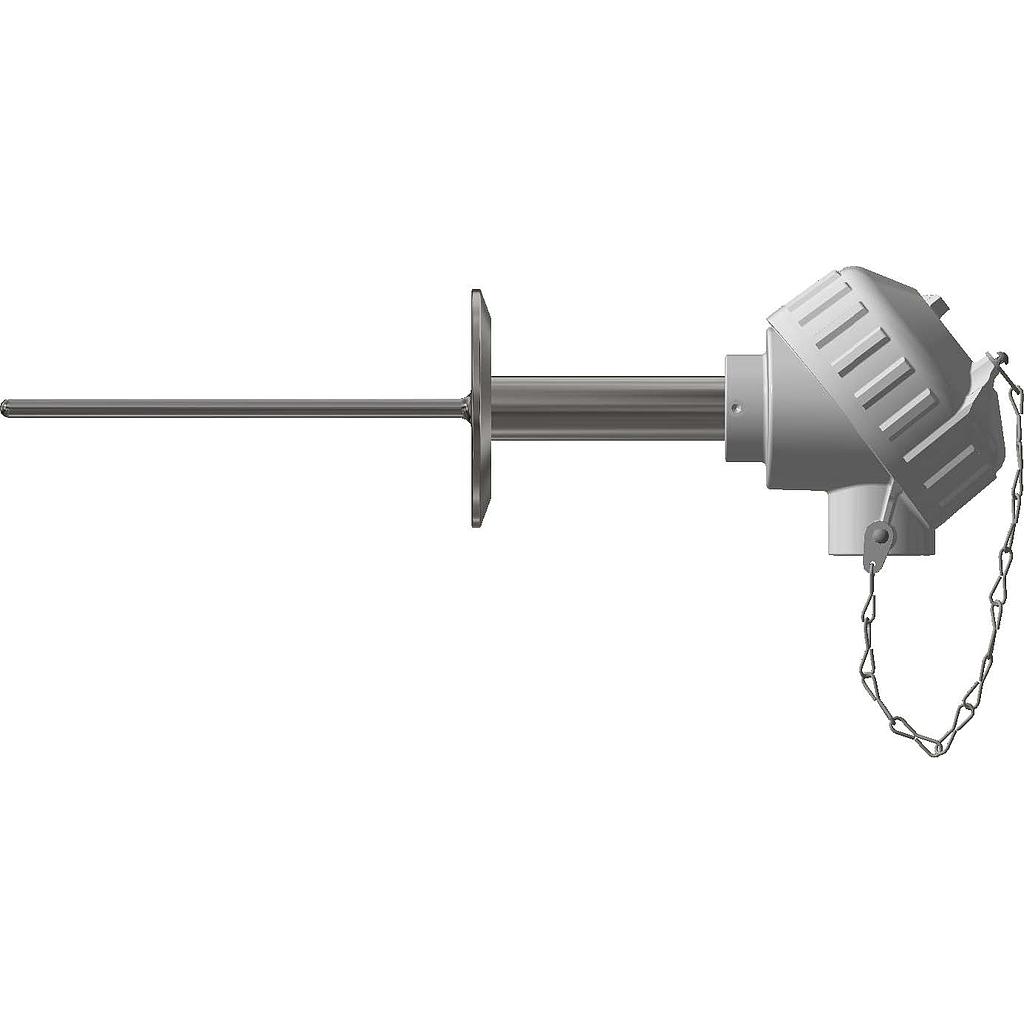

Pyromation CIP Sanitary-Connected RTD, Single 3-Wire, 1/4" OD x 3.5" Immersion, 2" OD SS Tri-Clamp, PP Head
Sanitary Connected Sensor
- Single Element RTD
- 100 ohm Platinum
- Temperature Coefficient 0.00385 Ohms per Degree C
- Tolerance (1/5) Class B
- Temperature Range -30 to 150 Degrees C
- 1/4 Inch Diameter 316 Stainless Steel Sheath
- 3 Wire
- Sanitary Cap for 2 inch tube size
- 16 AMP Cap - Tri-Clamp
- Immersion Length: 3(1/2) Inches
- White Polypropylene Head
Sanitary Connected Sensor
- Single Element RTD
- 100 ohm Platinum
- Temperature Coefficient 0.00385 Ohms per Degree C
- Tolerance (1/5) Class B
- Temperature Range -30 to 150 Degrees C
- 1/4 Inch Diameter 316 Stainless Steel Sheath
- 3 Wire
- Sanitary Cap for 2 inch tube size
- 16 AMP Cap - Tri-Clamp
- Immersion Length: 3(1/2) Inches
- White Polypropylene Head
Specifications
| RTD: Brand | Pyromation |
| RTD: Accuracy | (1/5) Class B |
| RTD: Circuit Type | Single 3-Wire |
| RTD: Connection Size | 2 in |
| RTD: Connection Type | Tri-Clamp |
| RTD: Output | Pl100 Ω |
| RTD: Length (Probe/Sheath/TW) | 3.5 in |
| RTD: Stem Diameter | 1/4 in |
| RTD: Wetted Material | SS |
| RTD: Enclosure Rating | NEMA 4X |
| RTD: Has Thermowell | No |
| RTD: Cover / Head Material | PP |
| RTD: Max Temp | 392 °F |
