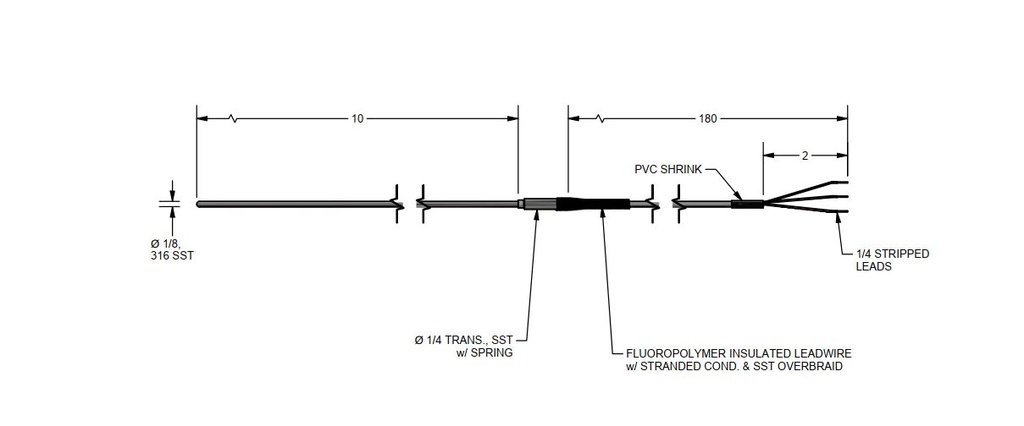

Representative photo. Please check item description for details.

Pyromation RTD Spring-Loaded Assembly, Single 3-Wire, 1/8" OD, 10" Sheath, 15' FPM Leads (2" Split, 1/4" Stripped) w/Relief Spring

https://www.branom.com/web/image/product.template/193808/image_1920?unique=2e87ae5
(0 review)

Single Element RTD
100 ohm Platinum
Temperature Coefficient 0.00385 ohms per Degree C
Tolerance Class A
Temperature Range -30 to 200 Degrees C
1/8 Inch Diameter 316 Stainless Steel Sheath
3 Wire
Sheath Length: 10 Inches
No Fitting or Bend
Extension Leadwire Transition with Relief Spring 400 Degrees F
Leadwire - Fluoropolymer Insulation - Stranded Conductor - Stainless Steel Overbraid
Extension Wire B Length: 180 Inches
2 Inch Split Leads 1/4 Inch Stripped


$ 143.50 143.5 USD $ 143.50

$ 143.50

Not Available For Sale

  • RTD: Brand
  • RTD: Type
  • RTD: Output

This combination does not exist.

Contact Us

Share

Single Element RTD
100 ohm Platinum
Temperature Coefficient 0.00385 ohms per Degree C
Tolerance Class A
Temperature Range -30 to 200 Degrees C
1/8 Inch Diameter 316 Stainless Steel Sheath
3 Wire
Sheath Length: 10 Inches
No Fitting or Bend
Extension Leadwire Transition with Relief Spring 400 Degrees F
Leadwire - Fluoropolymer Insulation - Stranded Conductor - Stainless Steel Overbraid
Extension Wire B Length: 180 Inches
2 Inch Split Leads 1/4 Inch Stripped

Specifications

RTD: Brand Pyromation
RTD: Type Probe
RTD: Output 100 Ω
