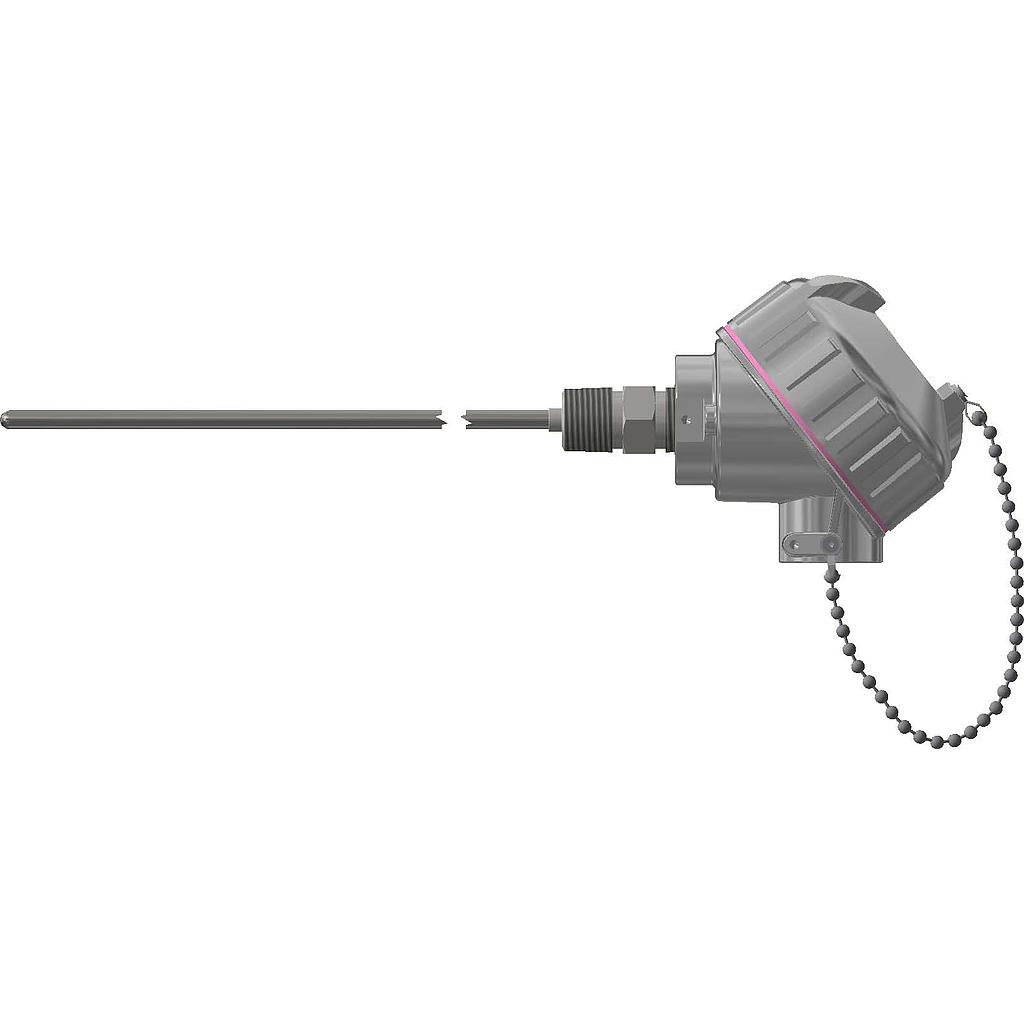

PYROMATION RTD, 3 Wire, 1/4" dia, 6" length, 1/2" x 1/2" SS Hex Nipple, Aluminum Screw Head Cover, Spring Loaded
Specifications
| RTD: Brand | Pyromation |
| RTD: Accuracy | Class A |
| RTD: Circuit Type | Single 3-Wire |
| RTD: Connection Size | 1/2 NPT |
| RTD: Connection Type | Bushing, Fixed-Sheath |
| RTD: Output | Pl100 Ω |
| RTD: Length (Probe/Sheath/TW) | 8 in |
| RTD: Stem Diameter | 1/4 in |
| RTD: Wetted Material | SS |
| RTD: Enclosure Rating | NEMA 4X |
| RTD: Has Thermowell | No |
| RTD: Cover / Head Material | Aluminum |
| RTD: Min Temp | -58 °F |
| RTD: Max Temp | 392 °F |
