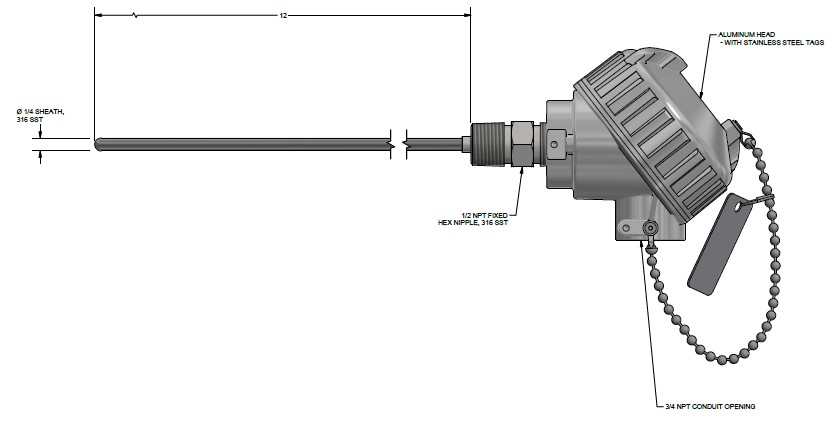

RTD, 3 Wire, 12" length, 1/2" Process Connection, 3/4" Conduit, Alum Head, W/ 3 Point Certs at 0, 100 and 200F, W/SS Tag
Specifications
| RTD: Brand | Pyromation |
| RTD: Accuracy | Class A |
| RTD: Circuit Type | Single 3-Wire |
| RTD: Connection Size | 1/2 NPT |
| RTD: Connection Type | Hex Nipple, Fixed-Sheath |
| RTD: Output | Pl100 Ω |
| RTD: Length (Probe/Sheath/TW) | 12 in |
| RTD: Stem Diameter | 1/4 in |
| RTD: Wetted Material | SS |
| RTD: Enclosure Rating | NEMA 4X |
| RTD: Has Thermowell | No |
| RTD: Cover / Head Material | Aluminum |
| RTD: Min Temp | -58 °F |
| RTD: Max Temp | 392 °F |
