  3. Dual RTD, Insertion 2.00", Temperature Range 0-100C, Transmitter Calibration (5 Point), MTR (Thermowell), Wake Frequency Calculation
Public Pricelist (v2)

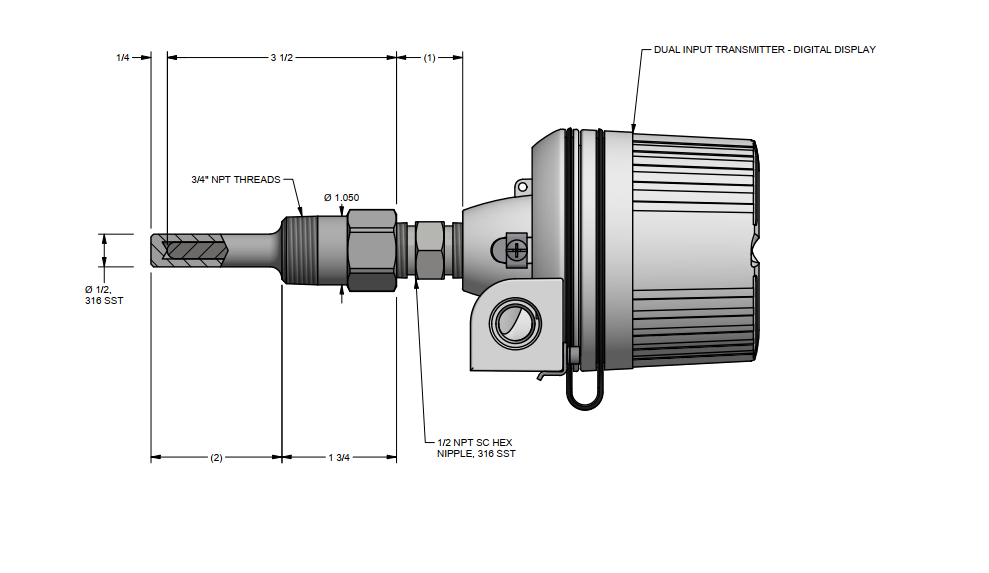

Representative photo. Please check item description for details.

Dual RTD, Insertion 2.00", Temperature Range 0-100C, Transmitter Calibration (5 Point), MTR (Thermowell), Wake Frequency Calculation

https://www.branom.com/web/image/product.template/543088/image_1920?unique=72388dd
(0 review)

• Dual Element RTD
• 100 ohm Platinum
• Temperature Coefficient 0.00385 ohms per Degree C
• Tolerance Class A
• Temperature Range -30 to 200 Degrees C
• 1/4 Inch Diameter 316 Stainless Steel Sheath
• 3 Wire
• Standard Duty Threaded (NPT) - 0.260 Bore
• 316 Stainless Steel
• 3/4 Inch NPT Pipe Size
• S Dimension: 3(1/2) Inches
• U Dimension: 2 Inches
• Self-contained Spring-loaded Element
• 1/2 Inch x 1/2 Inch NPT Stainless Steel Hex Nipple
• Series 82 (4 to 20) mA Dual Input Programmable HART Temperature Transmitter
• With Digital Display and General Purpose Aluminum Housing and Glass Lid
• Ch1: RTD 3-Wire - Ch2: RTD 3-Wire
• Sensor Input Channel 1: 100 Ohm Platinum (α = 0.003 85 °Cˉ¹)
• Sensor Input Channel 2: 100 Ohm Platinum (α = 0.003 85 °Cˉ¹)
• Process Variable = Channel 1; Channel 2 = Secondary Value
• Upscale Burnout
• Range: (0 - 100)C
