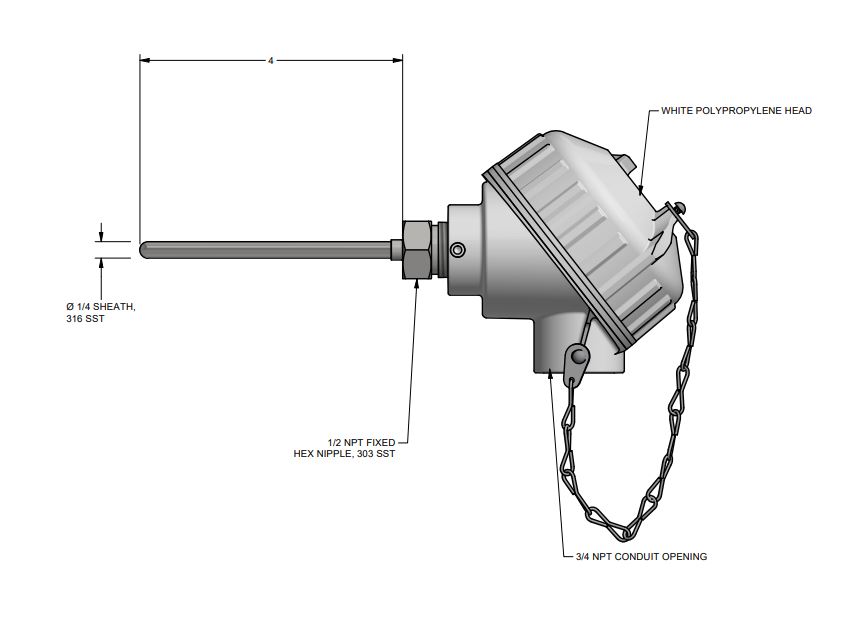

Pyromation, 3 Wire RTD, 4inch Insertion, Class A Tolerance.

https://www.branom.com/web/image/product.template/513421/image_1920?unique=3c0a30c
(0 review)

• Single Element RTD
• 100 ohm Platinum
• Temperature Coefficient 0.00385 ohms per Degree C
• Tolerance Class A
• Temperature Range -100 to 450 Degrees C
• 1/4 Inch Diameter 316 Stainless Steel Sheath
• 3 Wire
• Sheath Length: 4 Inches
• 1/2 Inch NPT Stainless Steel Bushing (No Process Threads)
• White Polypropylene Head


$ 267.00 267.0 USD $ 267.00

$ 267.00

Not Available For Sale

  • Measurement Maximum
  • Measurement Minimum

This combination does not exist.

Contact Us

Share

• Single Element RTD
• 100 ohm Platinum
• Temperature Coefficient 0.00385 ohms per Degree C
• Tolerance Class A
• Temperature Range -100 to 450 Degrees C
• 1/4 Inch Diameter 316 Stainless Steel Sheath
• 3 Wire
• Sheath Length: 4 Inches
• 1/2 Inch NPT Stainless Steel Bushing (No Process Threads)
• White Polypropylene Head

Specifications

Measurement Maximum 0
Measurement Minimum 0
