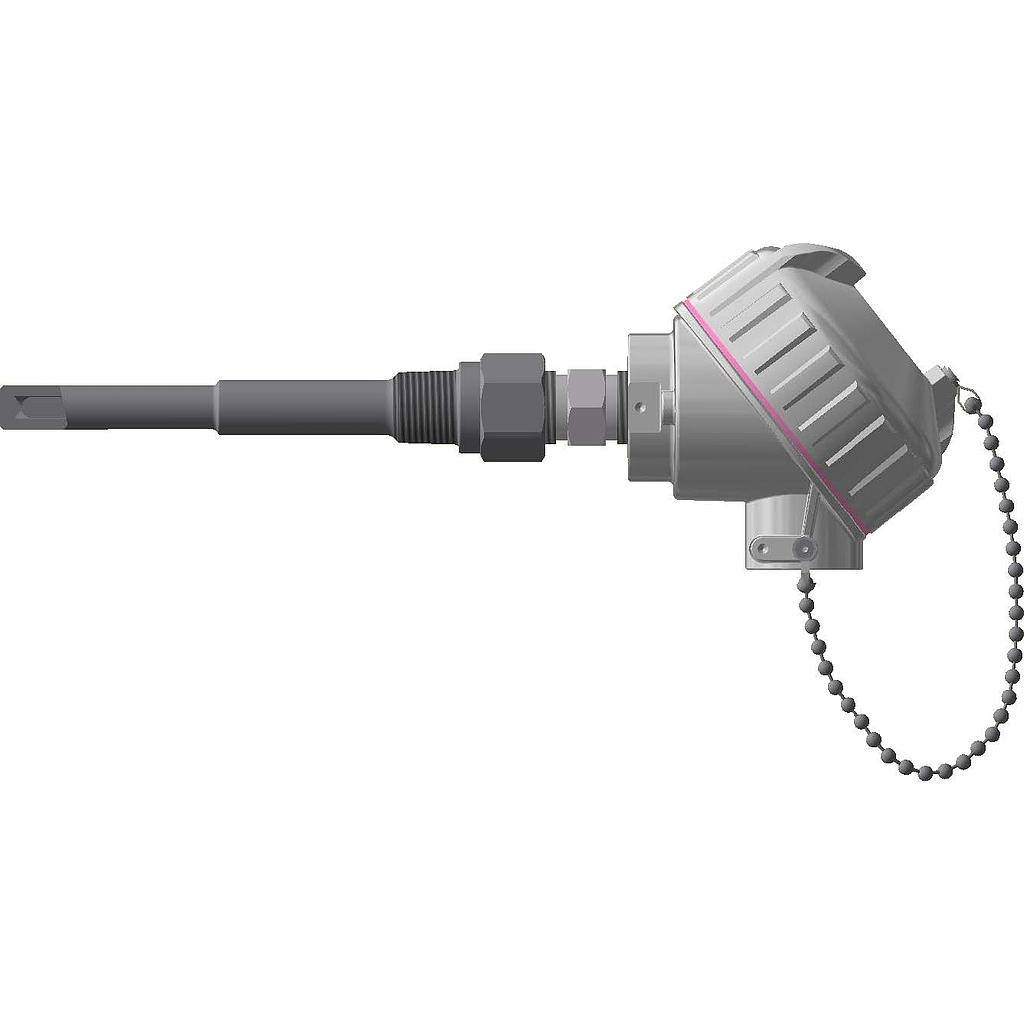

Pyromation Spring-Loaded RTD, Single 3-Wire, 1/4" OD x 15" Thermowell (SS, 1/2 NPT), Aluminum Head

https://www.branom.com/web/image/product.template/183900/image_1920?unique=493a696
(0 review)

Single Element RTD
- 100 ohm Platinum
- Temperature Coefficient 0.00385 ohms per Degree C
- Tolerance Class B
- Temperature Range -50 to 200 Degrees C
- 1/4 Inch Diameter 316 Stainless Steel Sheath
- 3 wire
- Thermowell: Standard Duty Threaded (NPT) - 0.260 Bore
- 316 Stainless Steel
- 1/2 Inch NPT Pipe Size
- S Dimension: 15 Inches
- U Dimension: 13(1/2) Inches
- Self-contained Spring-loaded Element
- 1/2 Inch x 1/2 Inch NPT Stainless Steel Hex Nipple
- Aluminum Screw Cover Head - NEMA 4X Rated


$ 373.00 373.0 USD $ 373.00

$ 373.00

Not Available For Sale

  • RTD: Brand
  • RTD: Connection Size
  • RTD: Connection Type
  • RTD: Connection Type
  • RTD: Output
  • RTD: Length (Probe/Sheath/TW)
  • RTD: Stem Diameter

This combination does not exist.

Contact Us

Share

Single Element RTD
- 100 ohm Platinum
- Temperature Coefficient 0.00385 ohms per Degree C
- Tolerance Class B
- Temperature Range -50 to 200 Degrees C
- 1/4 Inch Diameter 316 Stainless Steel Sheath
- 3 wire
- Thermowell: Standard Duty Threaded (NPT) - 0.260 Bore
- 316 Stainless Steel
- 1/2 Inch NPT Pipe Size
- S Dimension: 15 Inches
- U Dimension: 13(1/2) Inches
- Self-contained Spring-loaded Element
- 1/2 Inch x 1/2 Inch NPT Stainless Steel Hex Nipple
- Aluminum Screw Cover Head - NEMA 4X Rated

Specifications

RTD: Brand Pyromation
RTD: Connection Size 1/2 NPT
RTD: Connection Type Hex Nipple, Spring-Loaded, Self-Contained
RTD: Output 100 Ω
RTD: Length (Probe/Sheath/TW) 15 in
RTD: Stem Diameter 1/4 in
